External Components

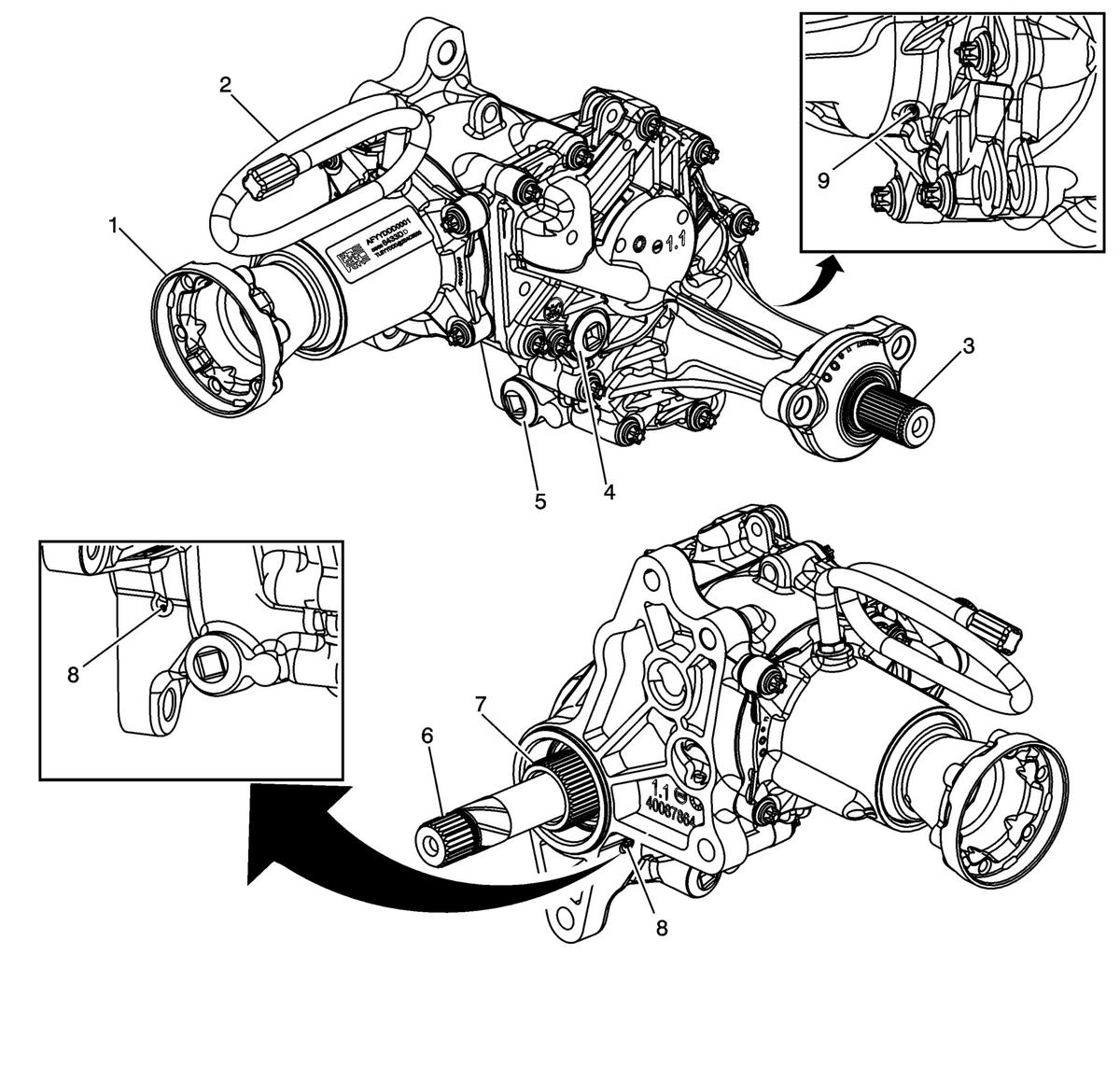

Fig 1: Transfer Case External Components
GM2745637Courtesy of GENERAL MOTORS COMPANY
  1. Rear Output Flange
  2. Vent House Assembly
  3. Intermediate Drive Shaft - Right Axle Shaft
  4. Oil Fill Plug
  5. Oil Drain Plug
  6. Intermediate Drive Shaft - Transmission Input
  7. Input Shaft - Transmission Input
  8. Vent Hole - Front wheel drive input shaft bearing retainer front seal
  9. Vent Hole - Front wheel drive input shaft bearing retainer rear seal
