Installation Procedure

    Fig 1: Transfer Case And Vent Hose
    GM2759726Courtesy of GENERAL MOTORS COMPANY
  1. Connect the vent hose (1) to the transfer case (2).
  2. Lower the vehicle.

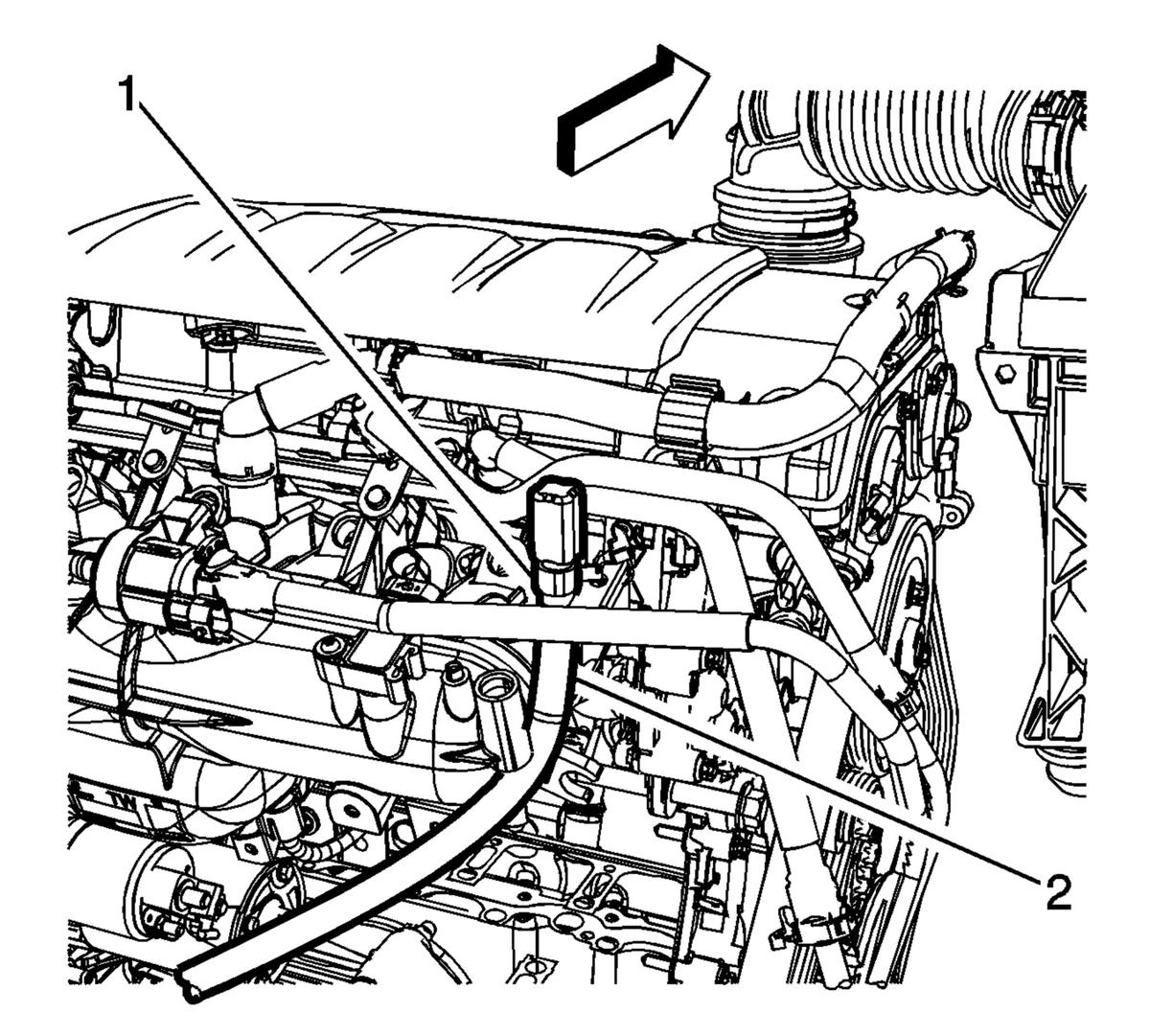

    3. Fig 2: Vent Hose And Retaining Clip
    GM2769451Courtesy of GENERAL MOTORS COMPANY
  3. Clip the upper portion of the vent hose (2) to the retaining clip (1).
