Installation Procedure

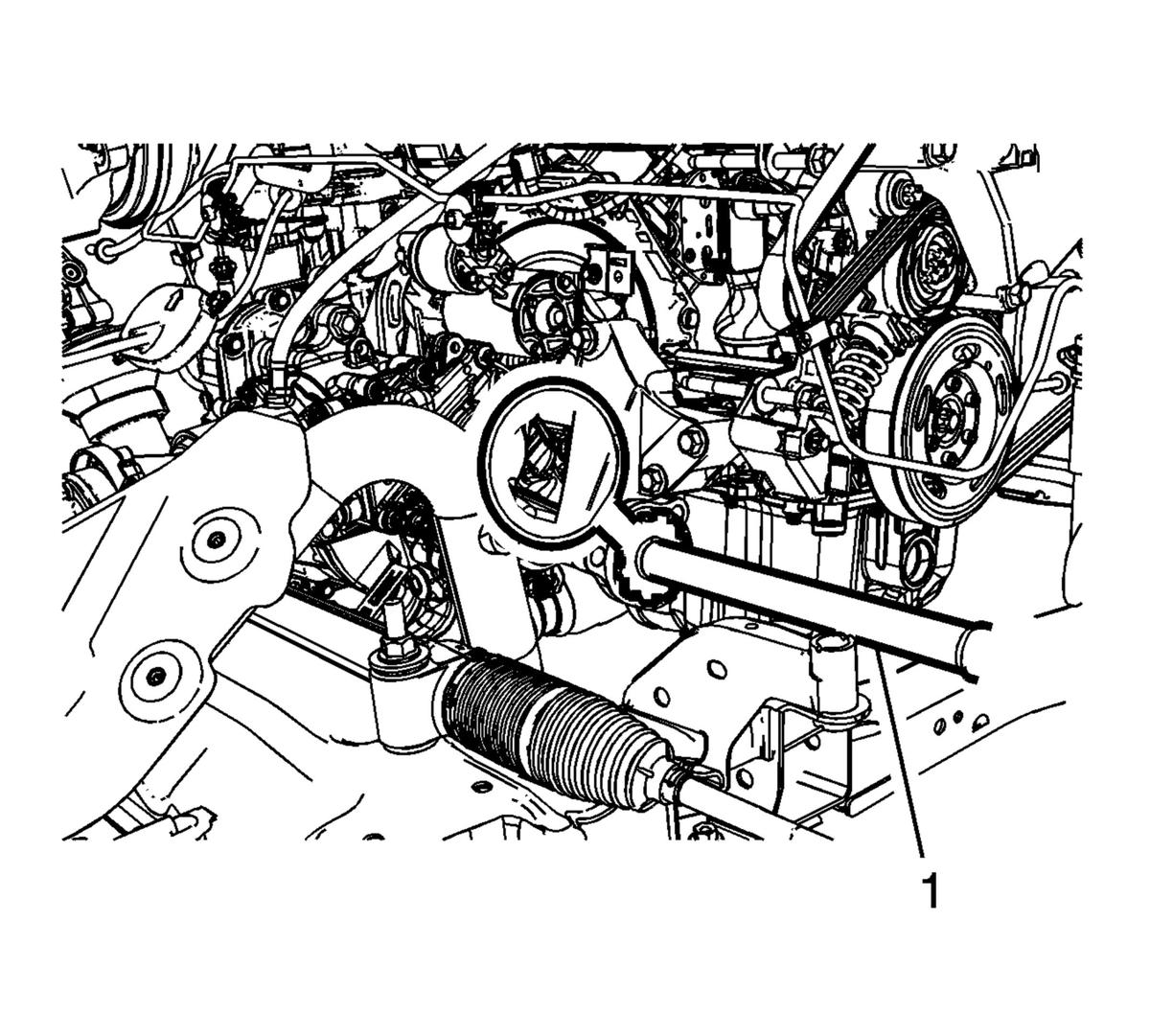

Fig 1: Front Wheel Drive Intermediate Shaft Seal And Installer

Courtesy of GENERAL MOTORS COMPANY

Using J-41819 Input Shaft Seal Installer install the NEW front wheel drive intermediate shaft seal (1).

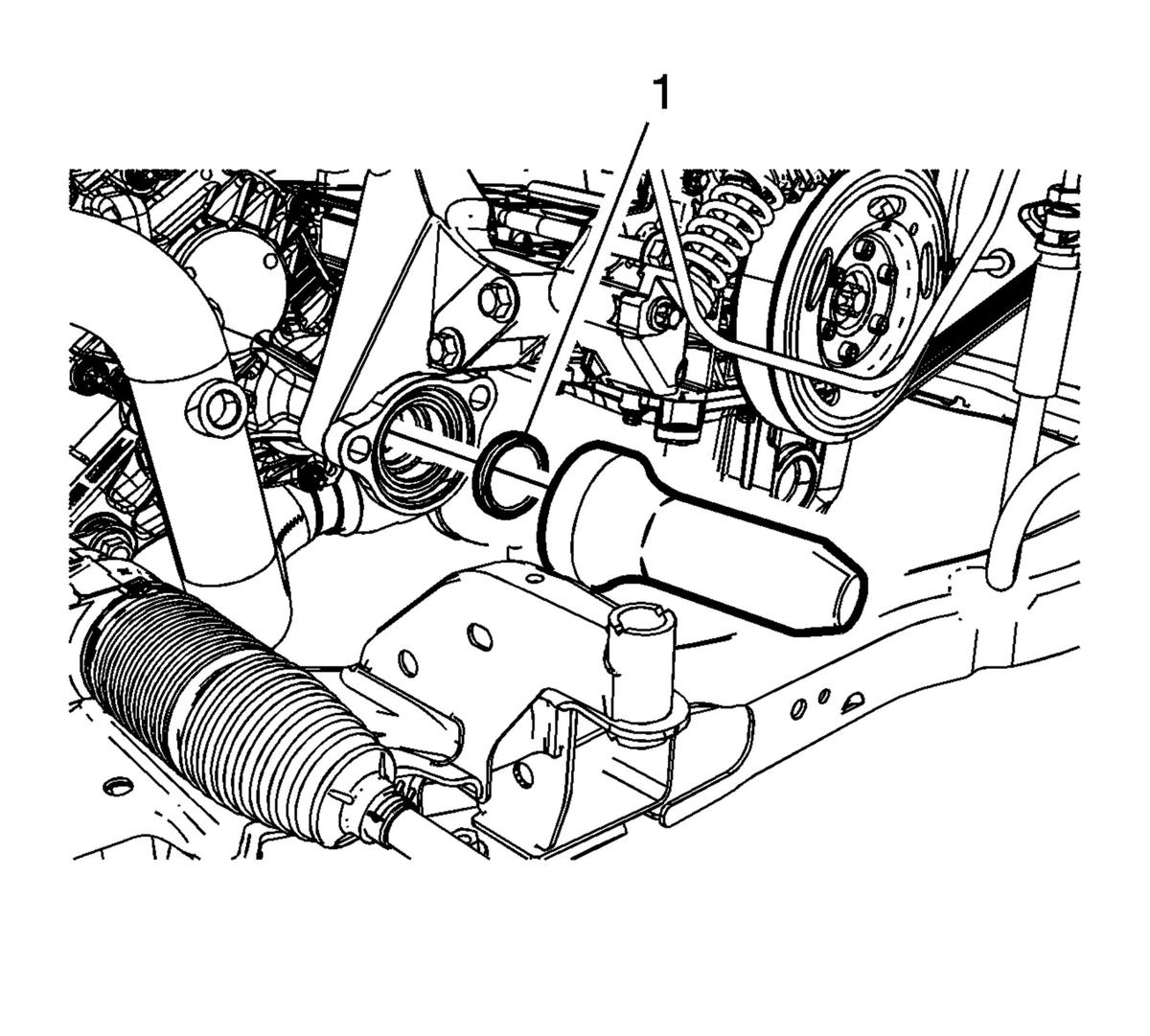

Fig 2: Front Wheel Drive Intermediate Shaft Assembly

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The intermediate drive shaft is to be installed into the transfer case assembly after the transfer case assembly is installed into the vehicle. Prior to installation of the shaft into the assembly, seal protector DT-50937 must be installed to protect the front wheel drive intermediate shaft seal. Refer to Transfer Case Description and Operation - New Service Assembly for additional information.

Using DT-50937 Seal Protector install the front wheel drive intermediate shaft assembly (1).

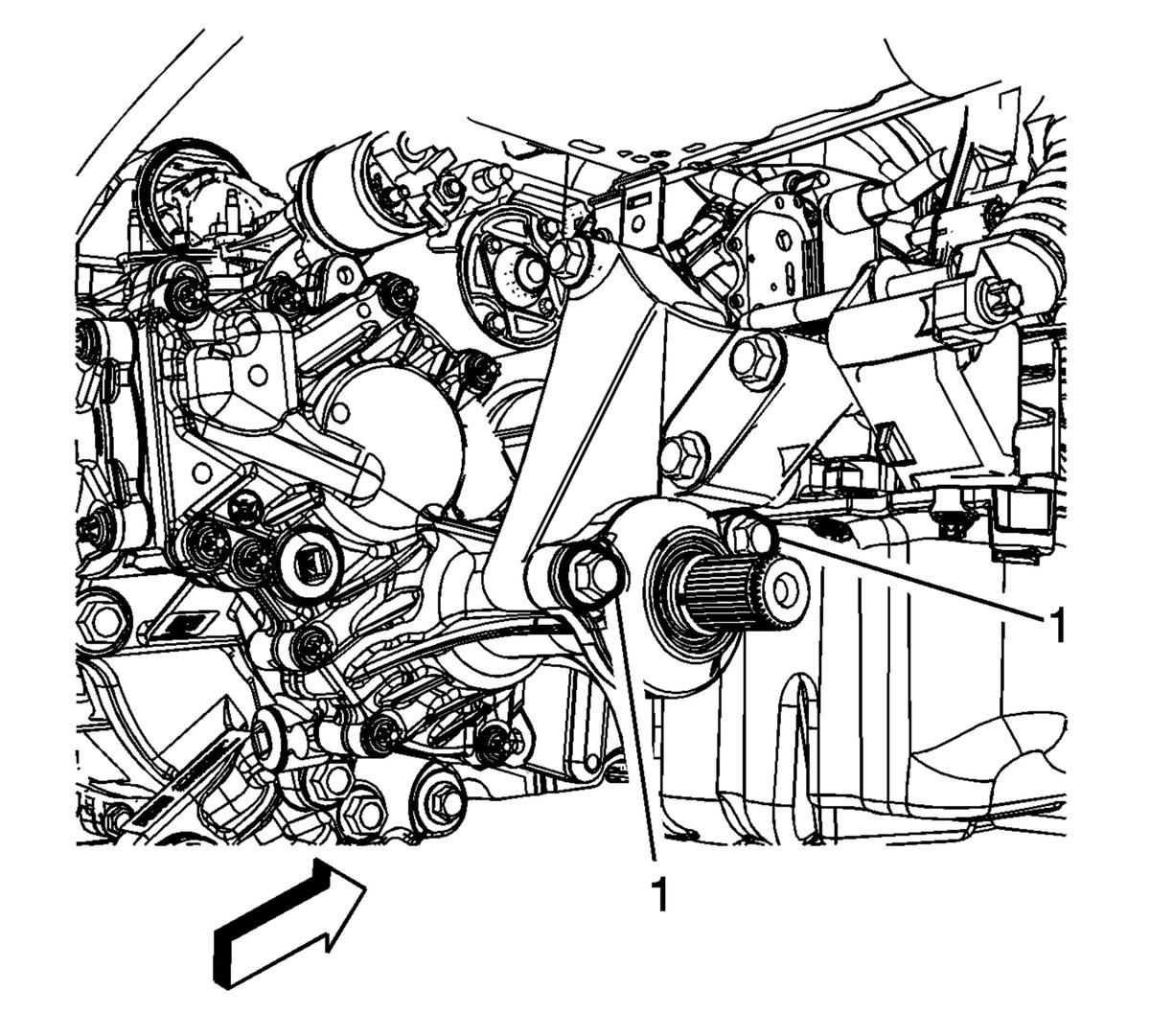

Fig 3: Front Wheel Drive Intermediate Shaft Housing Fasteners

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install the front wheel drive intermediate shaft housing fasteners (1) and tighten to 58 N.m (43 lb ft).
Install the right drive shaft. Refer to Front Wheel Drive Shaft Replacement - Right Side .
