Installation Procedure

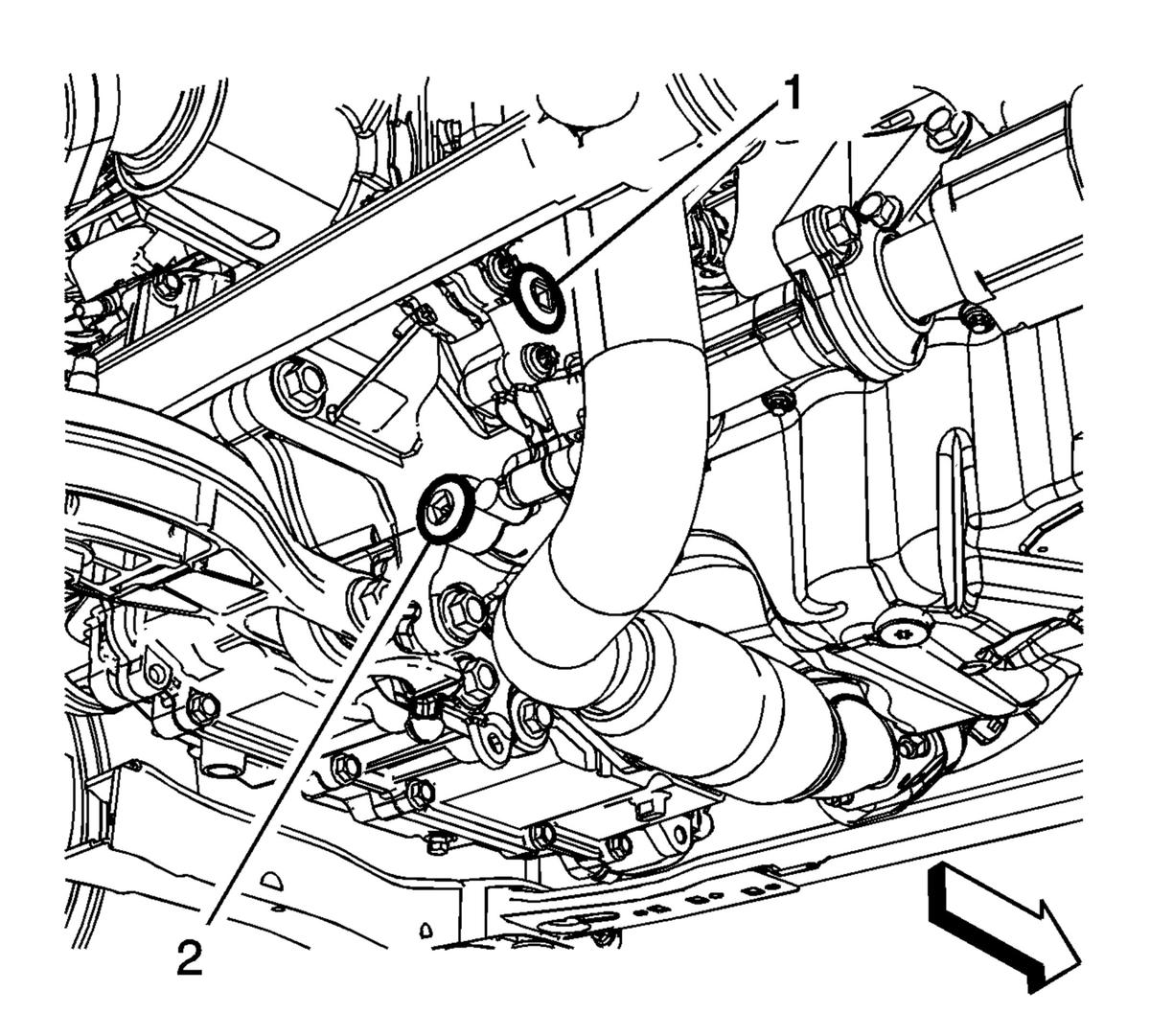

    Fig 1: Transfer Case Drain And Fill Plugs
    GM2767841Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW fill plug.
  2. Tighten the fill plug to 40 N.m (30 lb ft).
  3. Lower the vehicle.
