Transfer Case Holding Fixture Installation

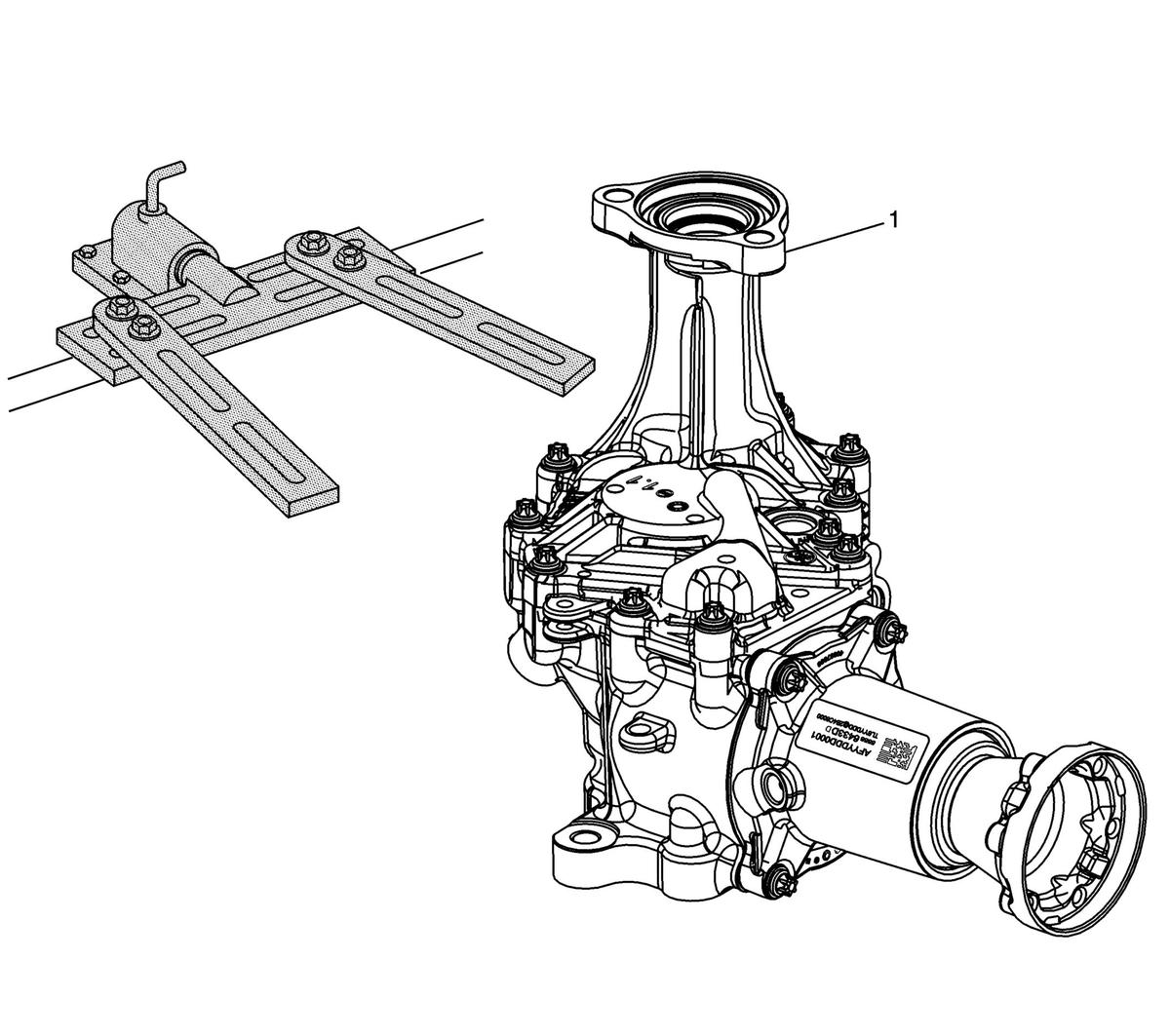

Fig 1: Transfer Case Holding Fixture

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transfer Case NOTE: Always secure with the pivot pin after rotating. NOTE: The transfer case can be rotated 360 degrees to facilitate repair. Special Tools DT-3289-20 Holding Fixture DT-36842 Transaxle Holding Fixture For equivalent regional tools, refer to Special Tools .
