Removal Procedure

  1. Remove Front Wheel Bearing and Hub Assembly. Refer to Front Wheel Bearing and Hub Replacement

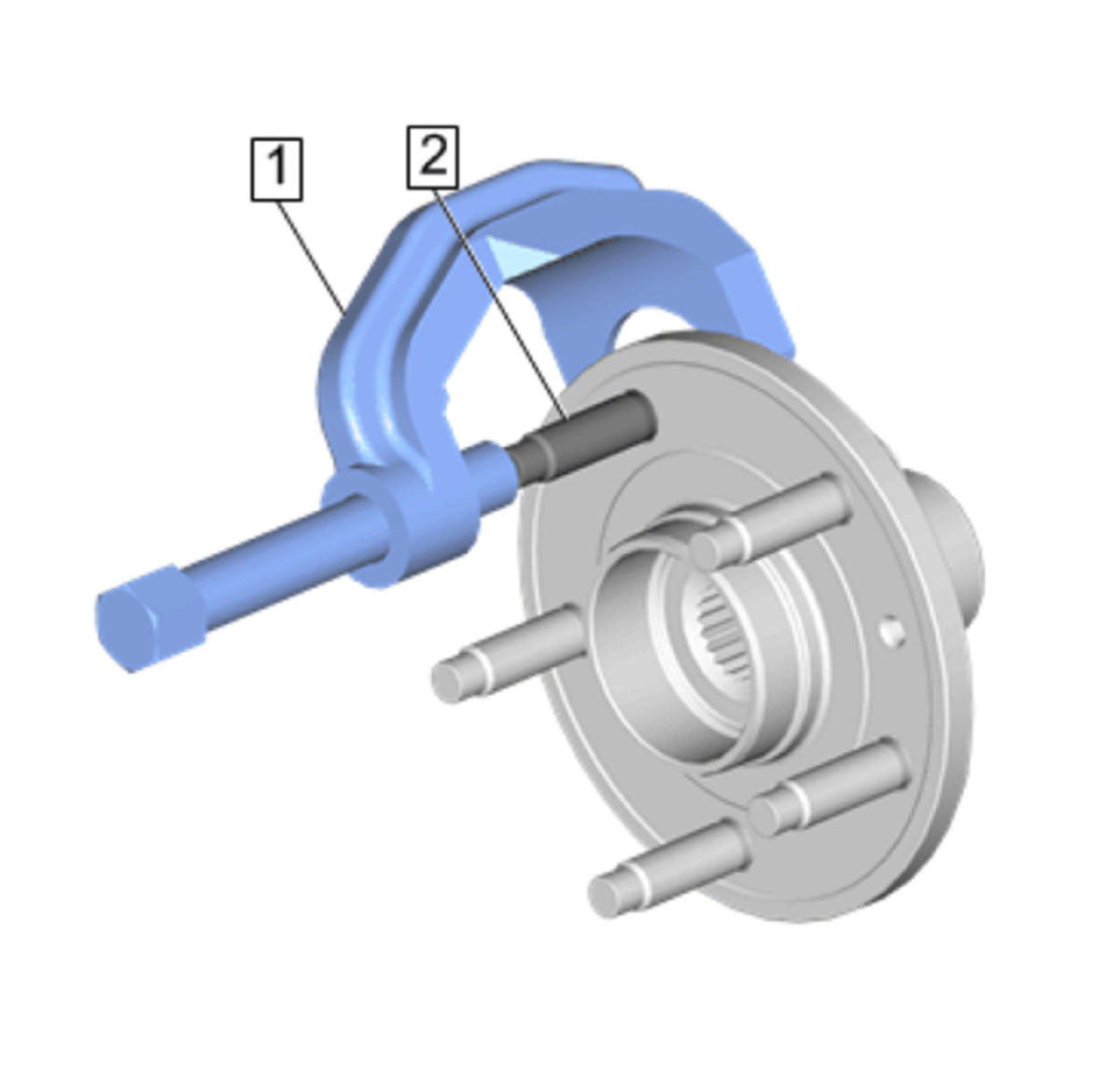

    2. Fig 1: Removing Wheel Stud
    GM4368502Courtesy of GENERAL MOTORS COMPANY
  2. Use the CH-43631  separator (1) to remove the wheel stud (2) from the flange on the hub assembly.

    DISCARD the stud.
