Stabilizer Shaft Link Replacement

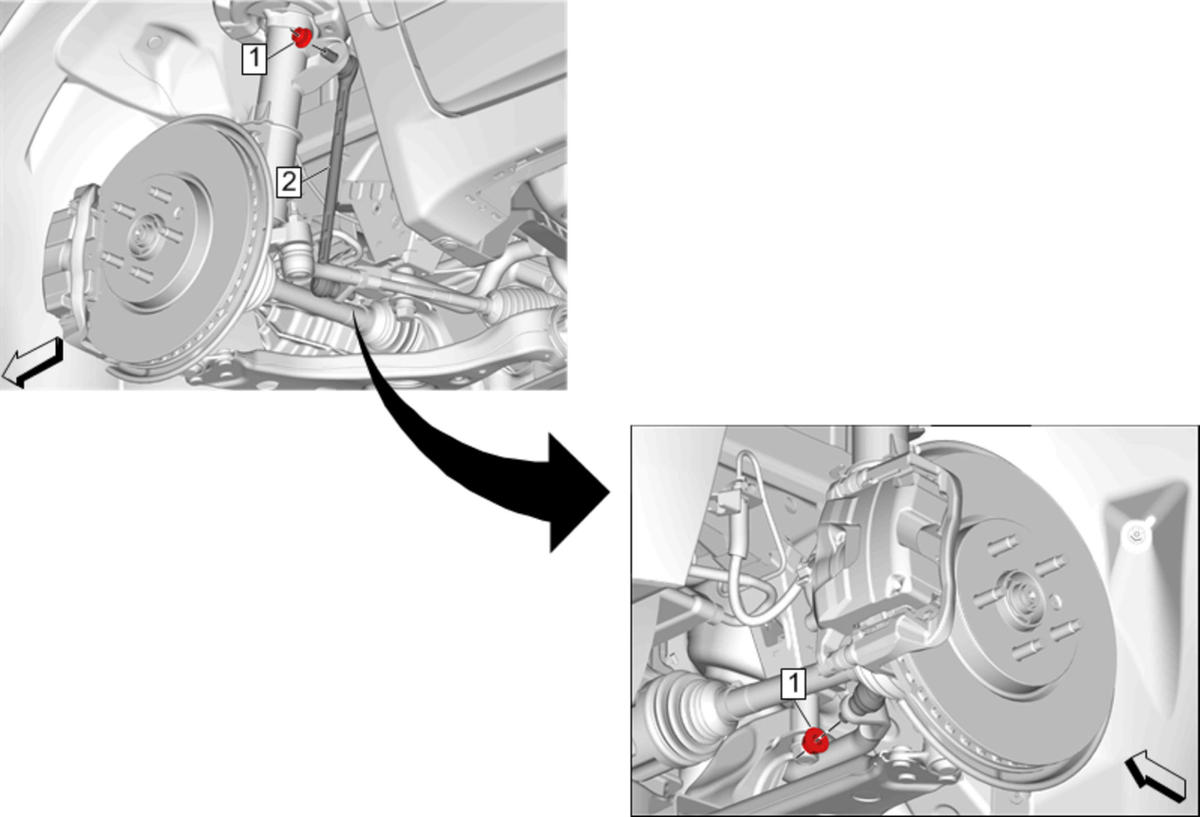

Fig 1: Stabilizer Shaft Link

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
1	Front Stabilizer Shaft Link Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Use the proper tool to hold the front stabilizer shaft link stud from rotating while loosening the front stabilizer shaft link nut. Tighten 65 N.m (48 lb ft)
2	Front Stabilizer Shaft Link
