Removal Procedure

Remove Lower Control Arm. Refer to Lower Control Arm Replacement

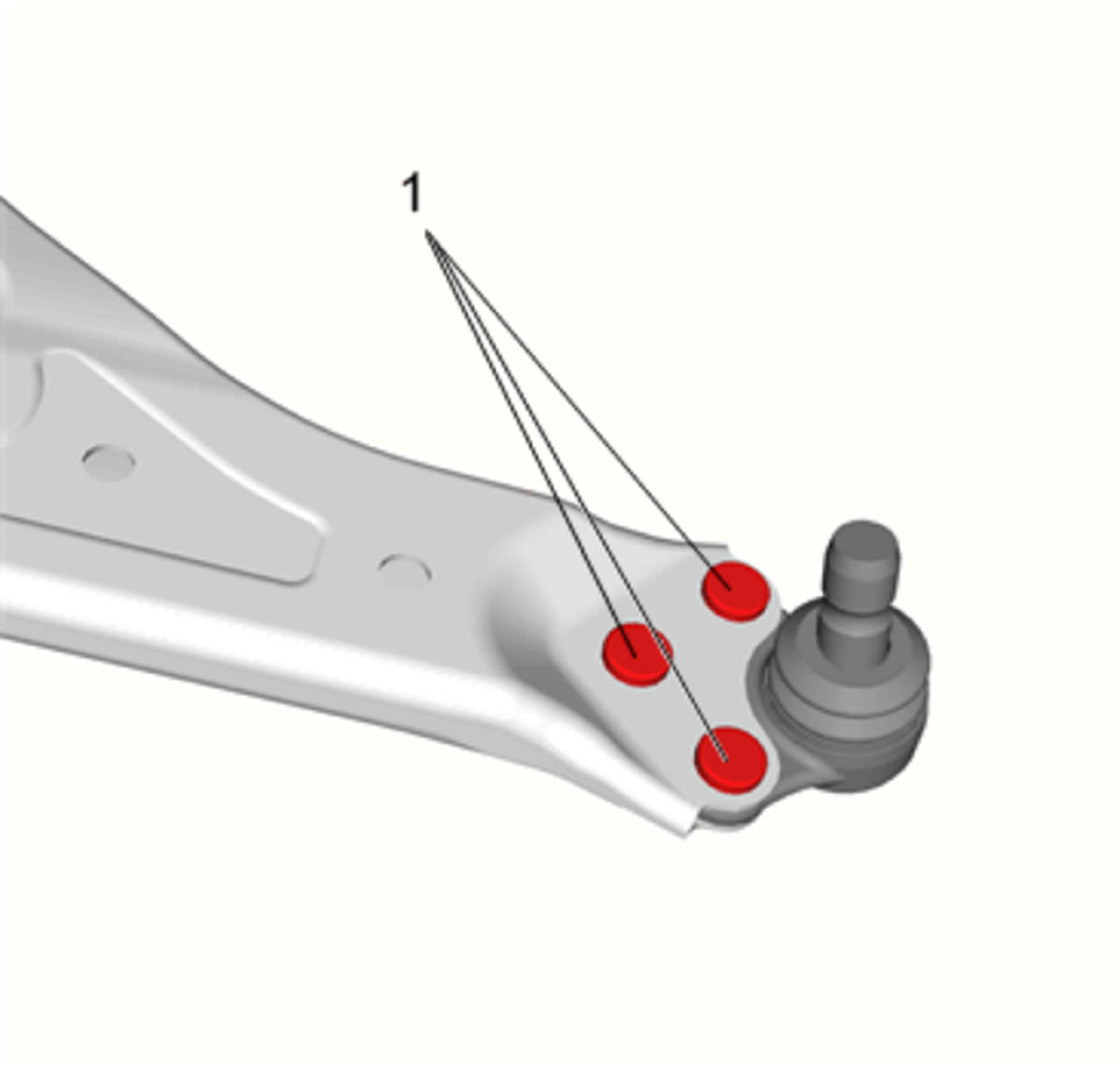

Fig 1: Ball Stud Rivets

GM4769264

Courtesy of GENERAL MOTORS COMPANY

Vertically drill a hole through the rivet (1) using a 5 mm (0.197 in) diameter drill bit.

Fig 2: Ball Stud Rivets

GM4769264

Courtesy of GENERAL MOTORS COMPANY

Enlarge the pre-drilled hole (1) using a 8 mm (0.315 in) drill bit.
Remove the rivet head of each rivet using a flat chisel.
Remove the remaining piece of each rivet using a punch.

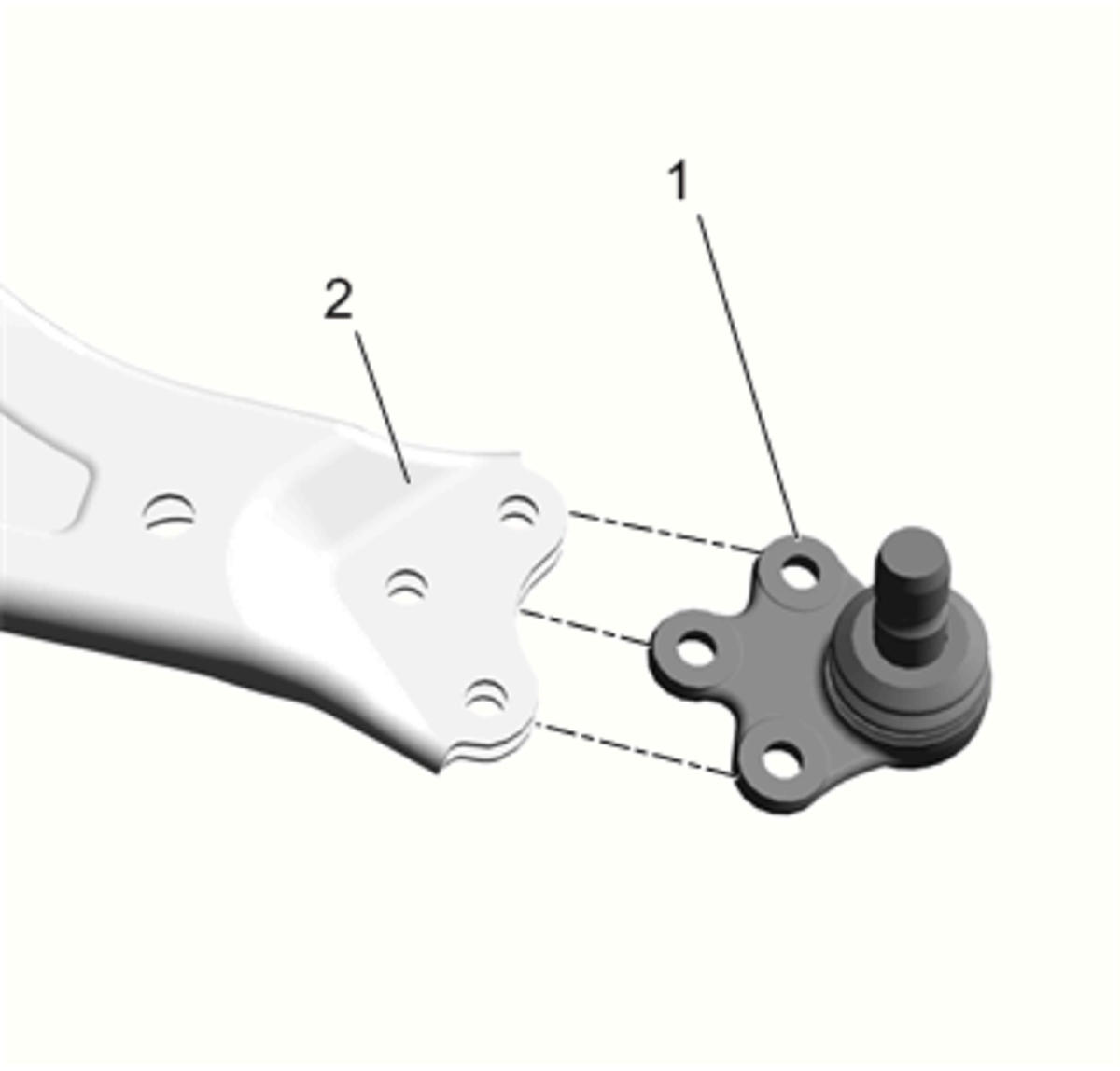

Fig 3: Front Lower Control Arm And Ball Stud

GM4769274

Courtesy of GENERAL MOTORS COMPANY

Remove Front Lower Control Arm Ball Stud (1) @ Front Lower Control Arm (2)
