Installation Procedure

    Fig 1: Power Steering Gear Inlet And Outlet Hoses, Bolt And Seals
    GM2808015Courtesy of GENERAL MOTORS COMPANY
  1. Position the power steering gear inlet hose (2) on the vehicle.
  2. Install Power Steering Gear Outlet Hose Seal (4)

    Install a NEW seal.

  3. Install Power Steering Gear Inlet Hose Seal (4)

    Install a NEW seal.

  4. Install Power Steering Gear Outlet Hose (3) @ Steering Gear
  5. Install Power Steering Gear Inlet Hose (2) @ Steering Gear
    6. CAUTION:

    Refer to Fastener Caution .

  6. Install and tighten Power Steering Gear Inlet and Outlet Hose Bolt (1) to 11 N.m (97 lb in)

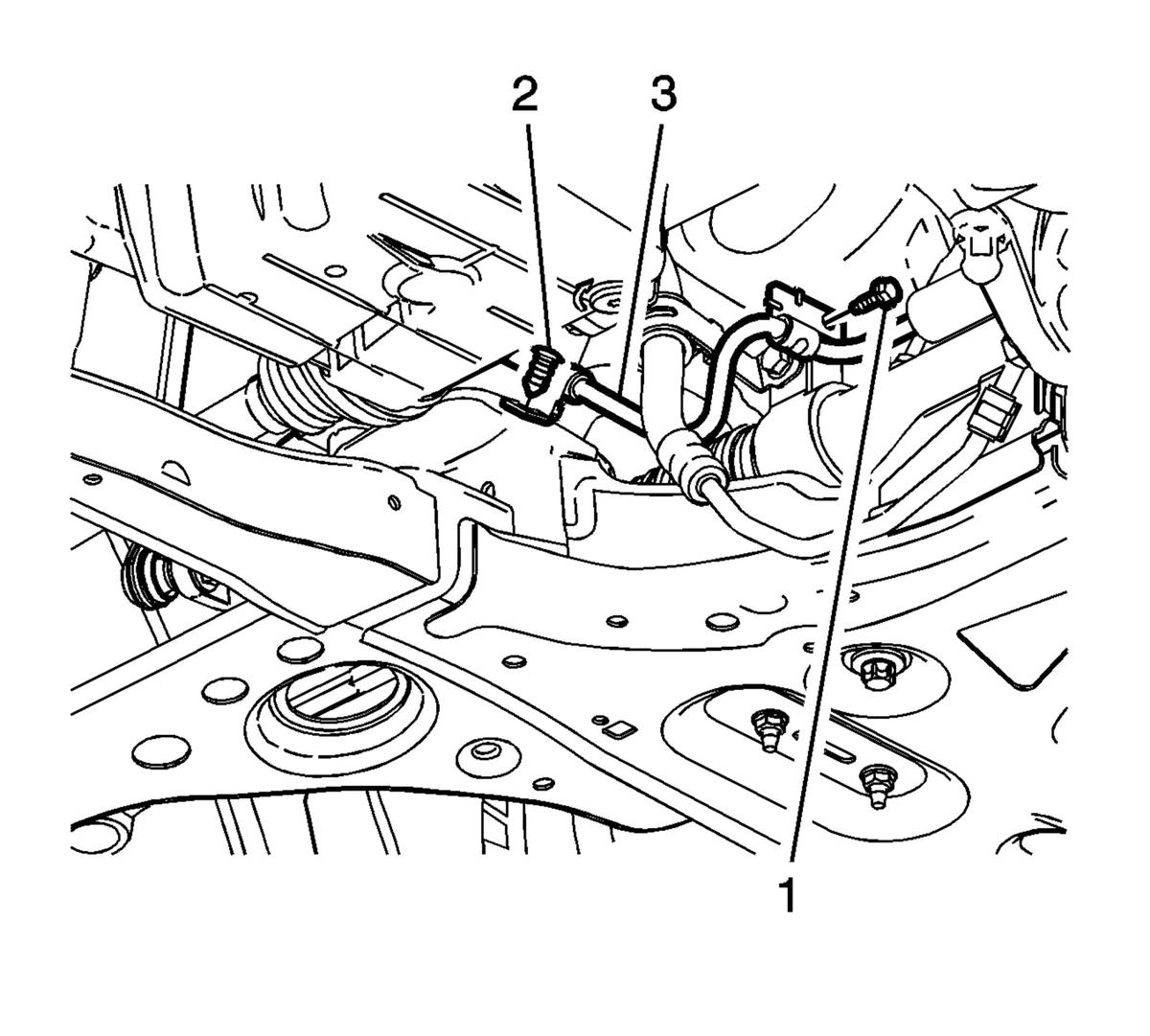

    7. Fig 2: Power Steering Gear Outlet Hose Bracket Bolt, Push Pin And Power Steering Gear Inlet Hose
    GM2809970Courtesy of GENERAL MOTORS COMPANY
  7. Secure the power steering gear outlet hose (3) to the drivetrain and front suspension frame using the plastic push pin (2) and the power steering gear inlet hose bracket bolt (1).
  8. Install and tighten Power Steering Gear Outlet Hose Bracket Bolt (1) to 9 N.m (80 lb in)
    9. Fig 3: Power Steering Gear Outlet Hose And Clamp
    GM2809971Courtesy of GENERAL MOTORS COMPANY
  9. Install Power Steering Gear Outlet Hose (2) @ Power Steering Fluid Cooler
  10. Engage Power Steering Gear Outlet Hose Clamp (1)
  11. Install the right front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
  12. Fill and bleed the power steering system. Refer to Power Steering System Bleeding
