Installation Procedure

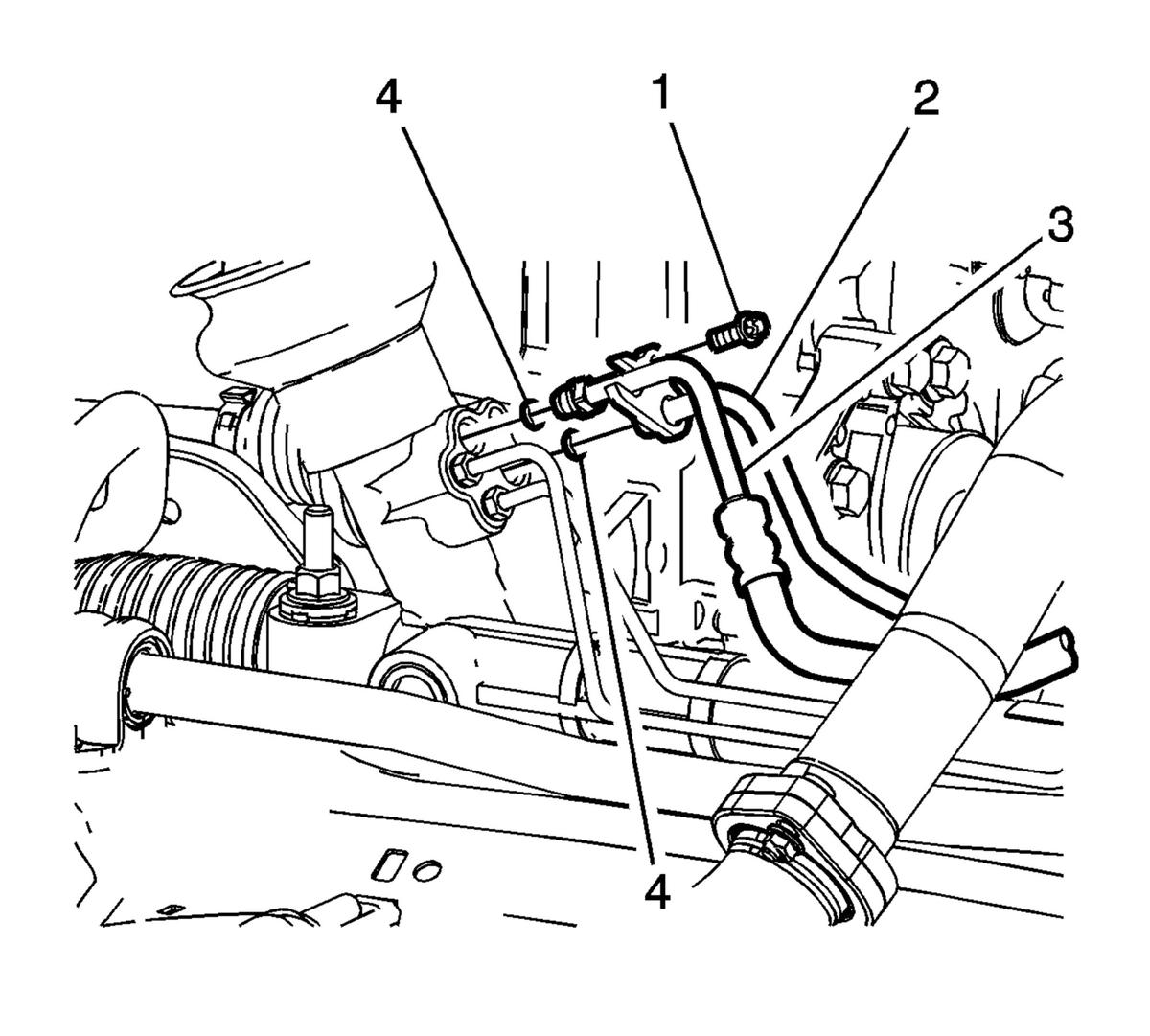

    Fig 1: Power Steering Gear Inlet And Outlet Hoses, Bolt And Seals
    GM2808015Courtesy of GENERAL MOTORS COMPANY
  1. Position the power steering gear inlet hose (2) on the vehicle.
  2. Install Power Steering Gear Outlet Hose Seal (4)

    Install a NEW seal.

  3. Install Power Steering Gear Inlet Hose Seal (4)

    Install a NEW seal.

  4. Install Power Steering Gear Outlet Hose (3) @ Steering Gear
  5. Install Power Steering Gear Inlet Hose (2) @ Steering Gear
    6. CAUTION:

    Refer to Fastener Caution .

  6. Install and tighten Power Steering Gear Inlet and Outlet Hose Bolt (1) to 11 N.m (97 lb in)

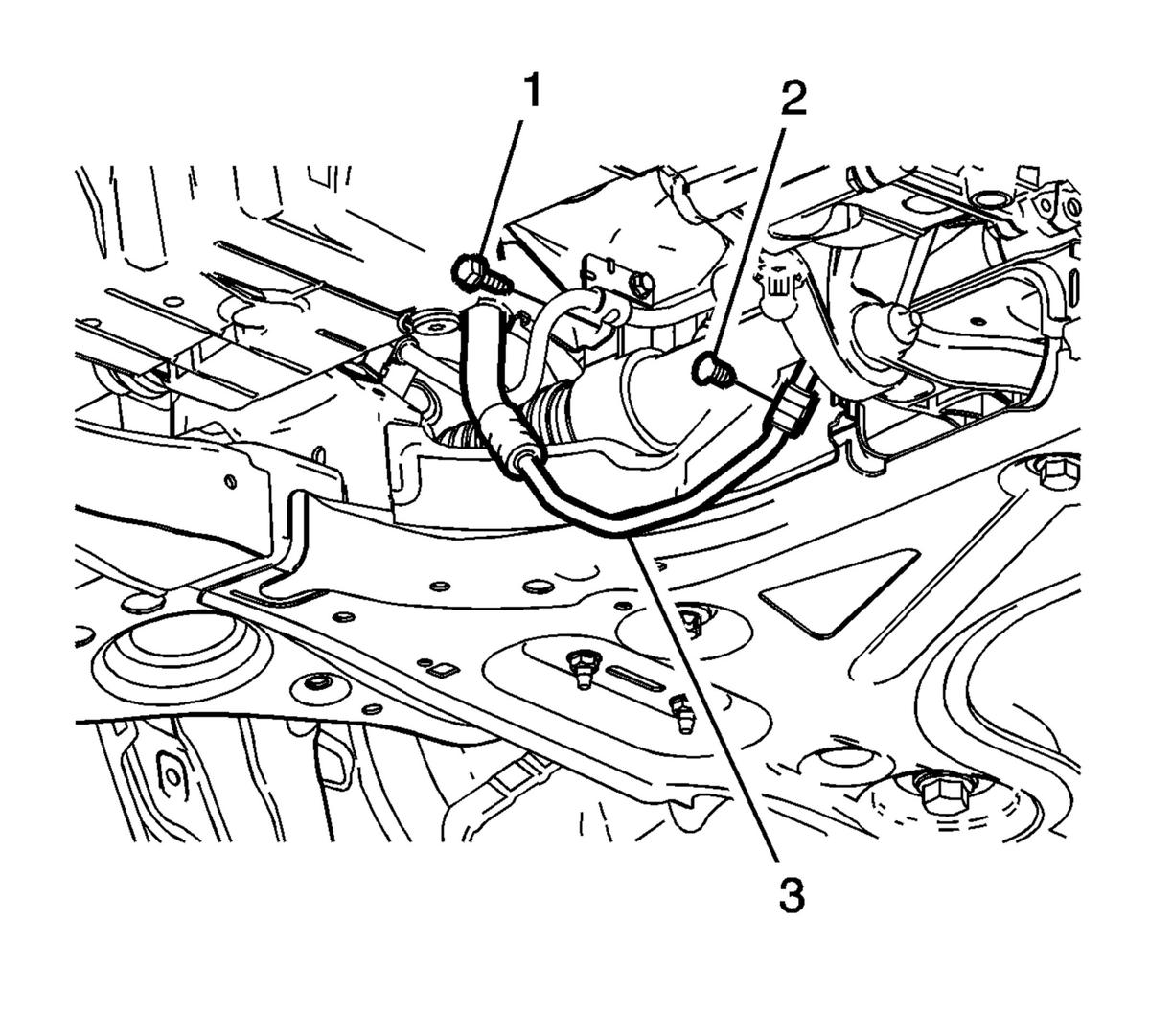

    7. Fig 2: Power Steering Gear Inlet Hose, Bracket Bolt And Push Pin
    GM2808014Courtesy of GENERAL MOTORS COMPANY
  7. Secure the power steering gear inlet hose (3) to the drivetrain and front suspension frame using the plastic push pin (2) and the power steering gear inlet hose bracket bolt (1).
  8. Install and tighten Power Steering Gear Inlet Hose Bracket Bolt (1) to 9 N.m (80 lb in)

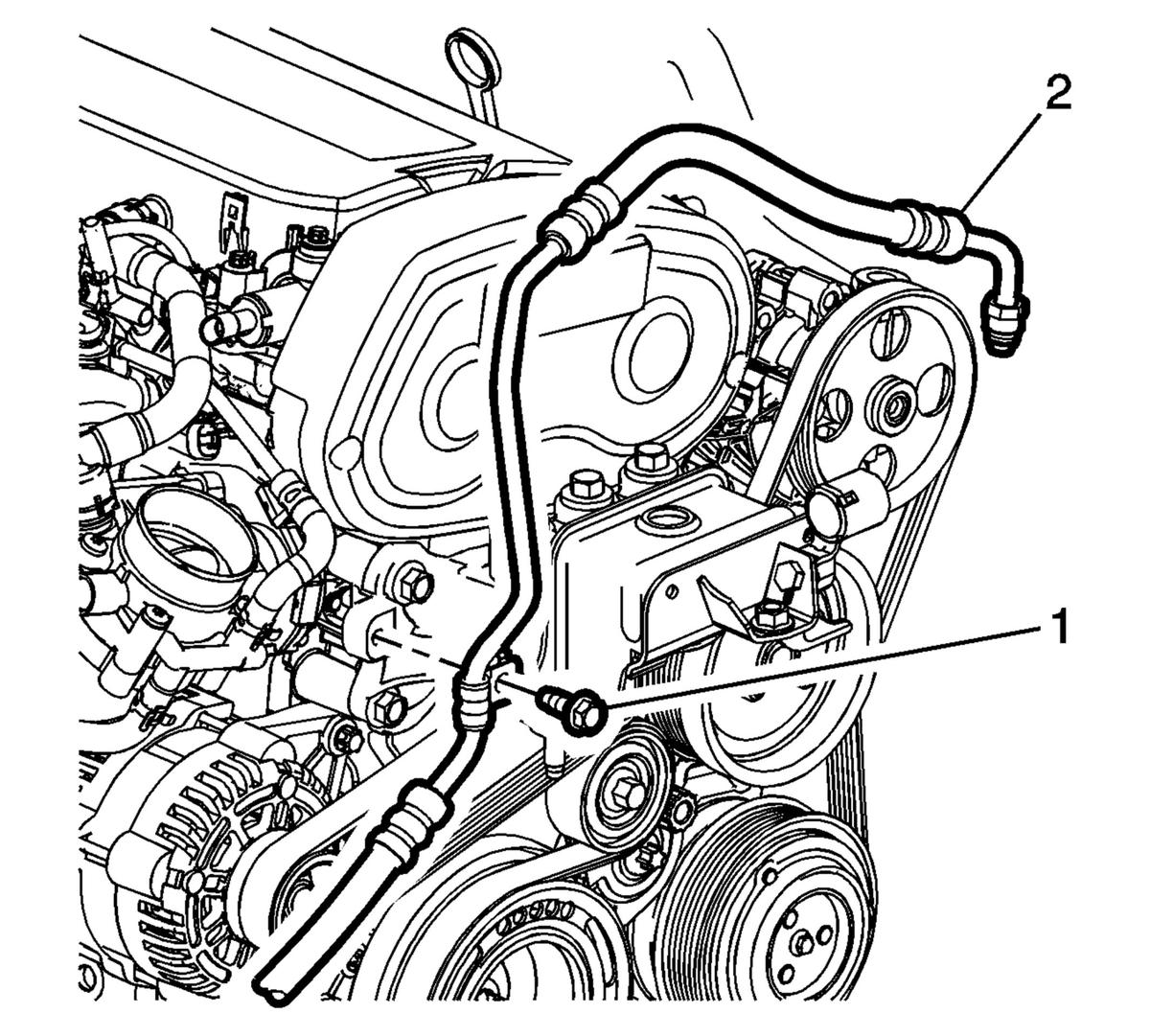

    9. Fig 3: Power Steering Gear Inlet Hose And Bracket Bolt
    GM2808013Courtesy of GENERAL MOTORS COMPANY
  9. Secure the power steering gear inlet hose (2) to the engine using the power steering gear inlet hose bracket bolt (1).
  10. Install and tighten Power Steering Gear Inlet Hose Bracket Bolt (1) to 22 N.m (16 lb ft)

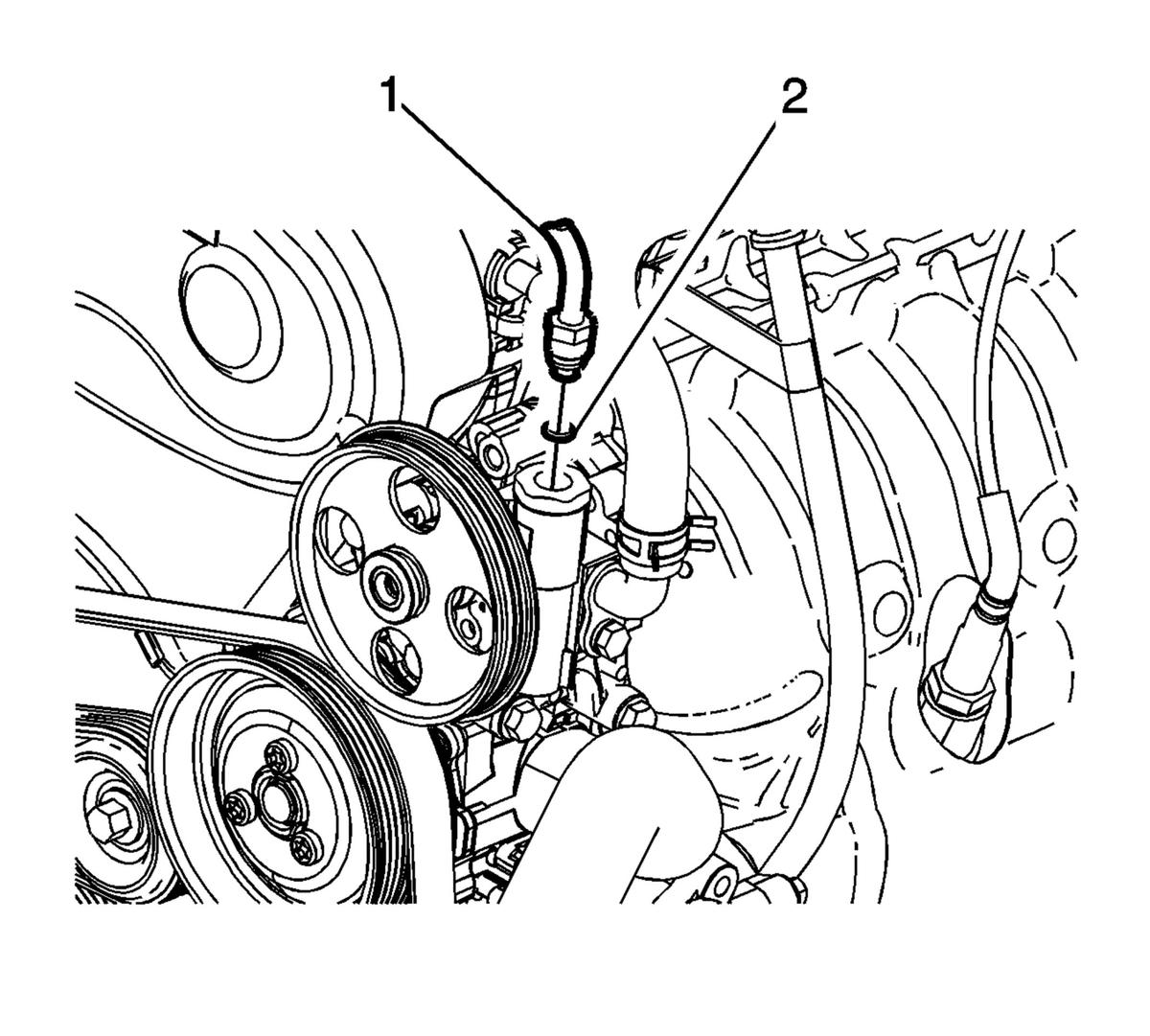

    11. Fig 4: Power Steering Gear Inlet Hose And Seal
    GM2808012Courtesy of GENERAL MOTORS COMPANY
  11. Install Power Steering Gear Inlet Hose Seal (2)

    Install a NEW seal.

    12. CAUTION:

    Refer to Component Fastener Tightening Caution .

  12. Install and tighten Power Steering Gear Inlet Hose (1) @ Power Steering Pump to 34 N.m (25 lb ft)
  13. Fill and bleed the power steering system. Refer to Power Steering System Bleeding
