Knock Sensor Replacement (FWD, With BTM)

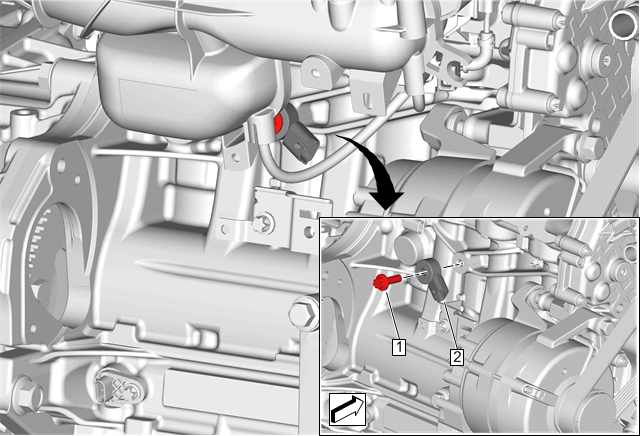

Fig 1: Knock Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Exhaust Front Pipe Replacement (LUV) Starter Replacement (LUV) Disconnect the electrical connector.
1	Knock Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
2	Knock Sensor

Callout

Component Name

Preliminary Procedures

Knock Sensor Fastener

CAUTION:

Tighten
20 N.m (15 lb ft)

Knock Sensor
