Fuel Feed Pipe Replacement (At Tank FWD)

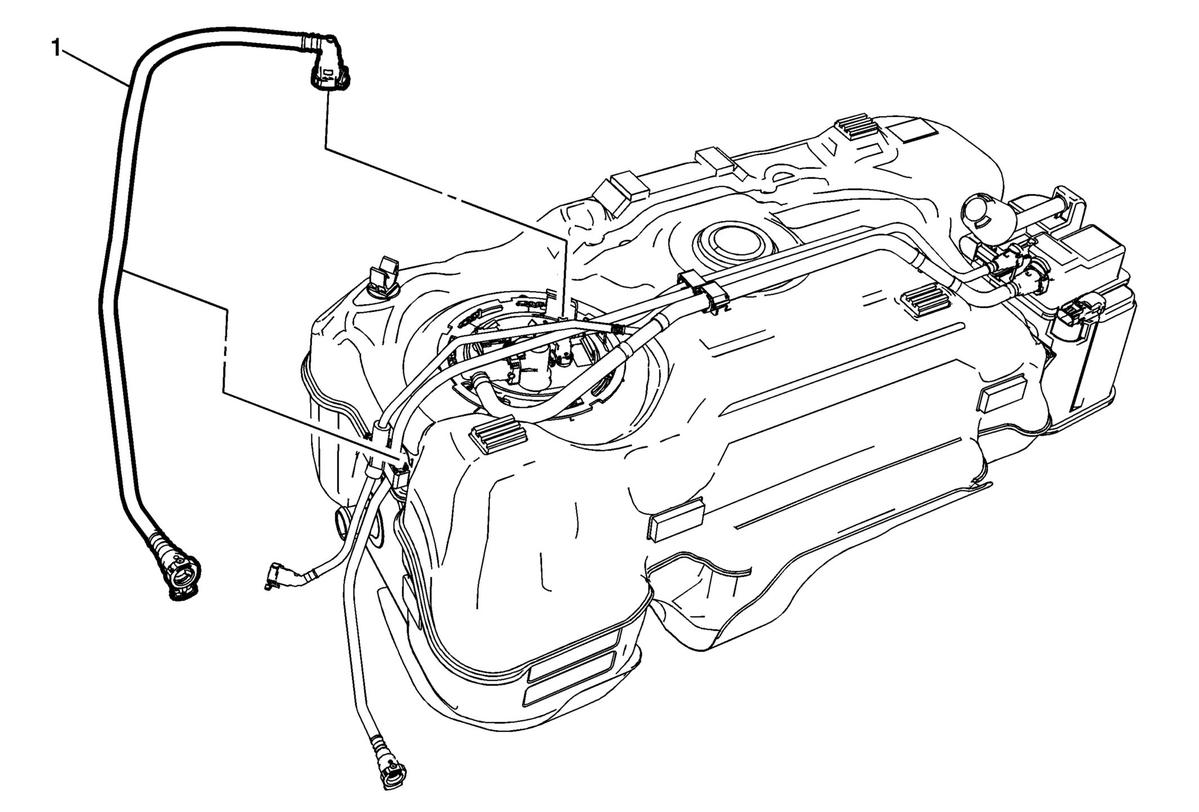

Fig 1: Fuel Feed Pipe (At Tank - FWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Fuel/gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby. Preliminary Procedures Relieve the fuel pressure. Refer to Fuel Pressure Relief . Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) .
1	Fuel Feed Pipe Procedure Disconnect the quick connect fittings. Refer to Plastic Collar Quick Connect Fitting Service .

Callout

Component Name

WARNING:

Fuel/gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.

Preliminary Procedures

Relieve the fuel pressure. Refer to Fuel Pressure Relief .
Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) .

Fuel Feed Pipe
Procedure
Disconnect the quick connect fittings. Refer to Plastic Collar Quick Connect Fitting Service .
