Air Cleaner Inlet Duct Replacement

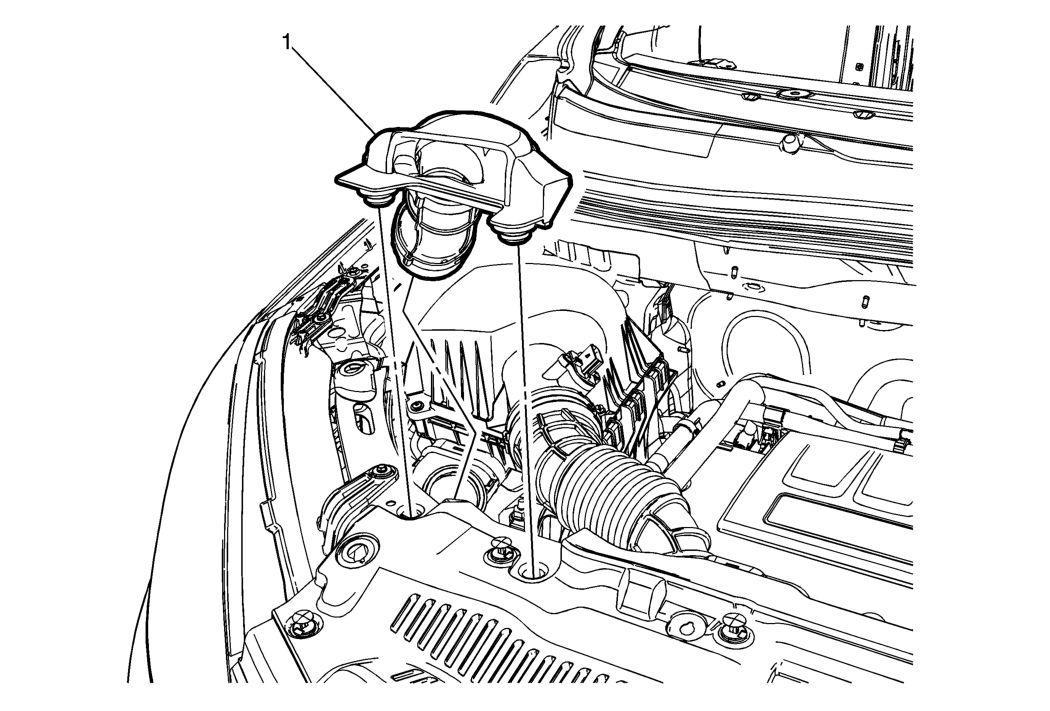

Fig 1: Air Cleaner Inlet Duct
GM2777376Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Inlet Duct
Procedure
Remove the air cleaner inlet duct by pulling upward to release the inlet duct from the rubber grommets and the air cleaner assembly.
