Radio Control Assembly Replacement (Buick)

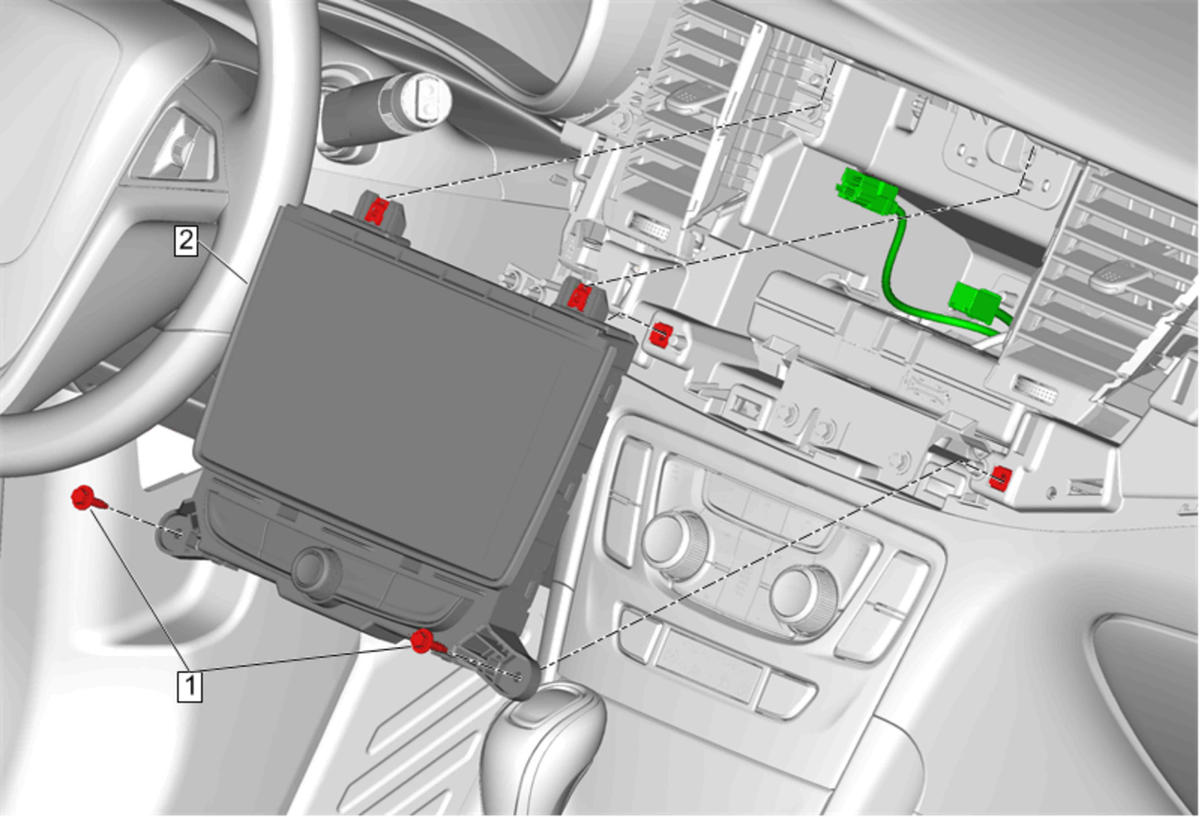

Fig 1: Radio Control Assembly (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Lower Trim Plate Applique - Right Side. Refer to Instrument Panel Lower Trim Plate Applique Replacement - Right Side (Buick)
1	Radio Control Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio Control Assembly Procedure Grasp the bottom of the radio control and pull out enough to clear the locators, then pull down to release the clips seated in the instrument panel. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Lower Trim Plate Applique - Right Side. Refer to Instrument Panel Lower Trim Plate Applique Replacement - Right Side (Buick)

Radio Control Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio Control Assembly

Procedure

Grasp the bottom of the radio control and pull out enough to clear the locators, then pull down to release the clips seated in the instrument panel.
Disconnect the electrical connectors.
