Telematics Communication Interface Control Module (Chevrolet with UE1)
Telematics Communication Interface Control Module (Chevrolet with UE1)

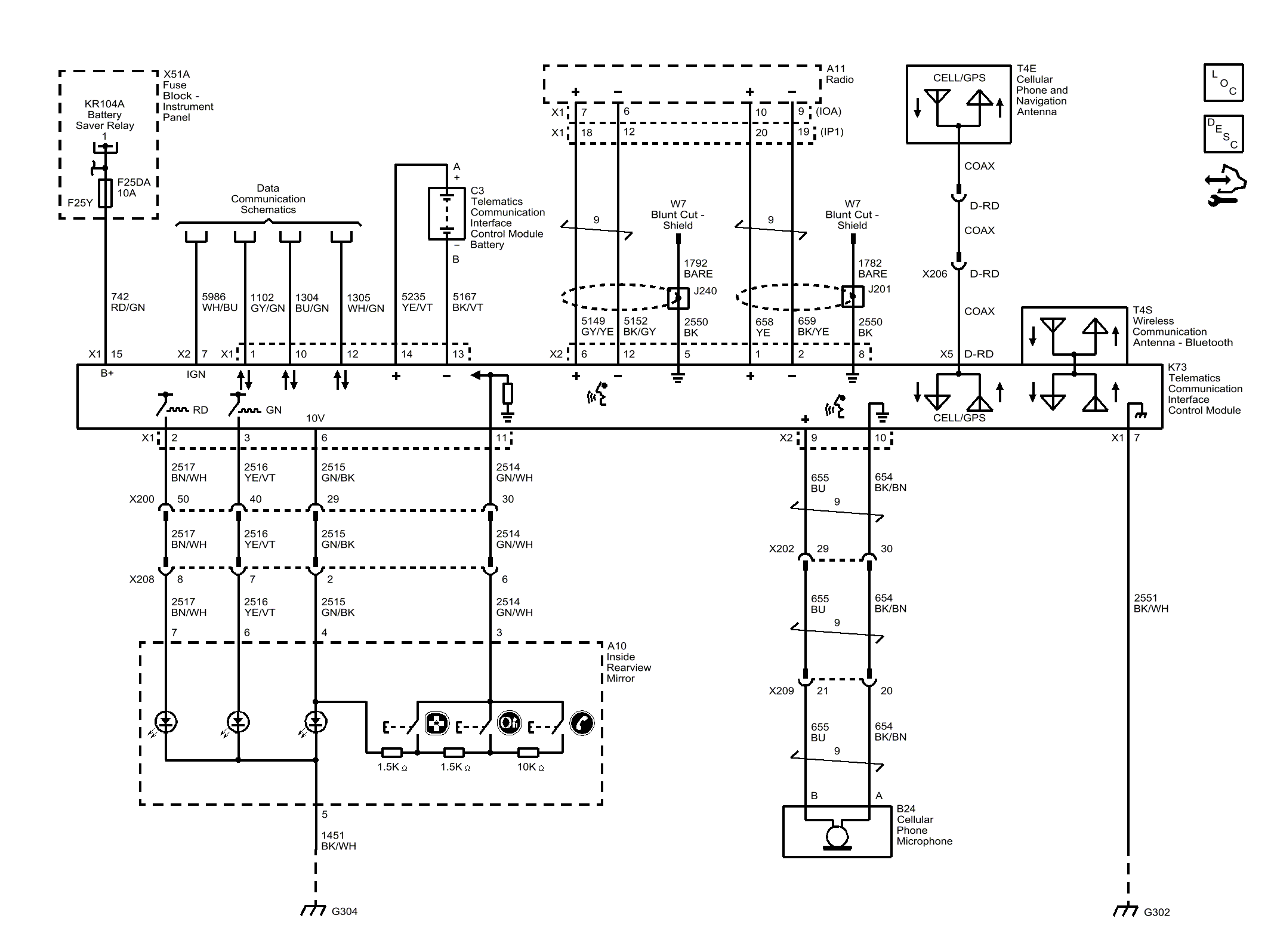

Fig 1: Telematics Communication Interface Control Module (Chevrolet with UE1)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
