Keyless Entry - Passive Entry and Keyless Start (1 of 2) (Chevrolet with ATH and BTM)

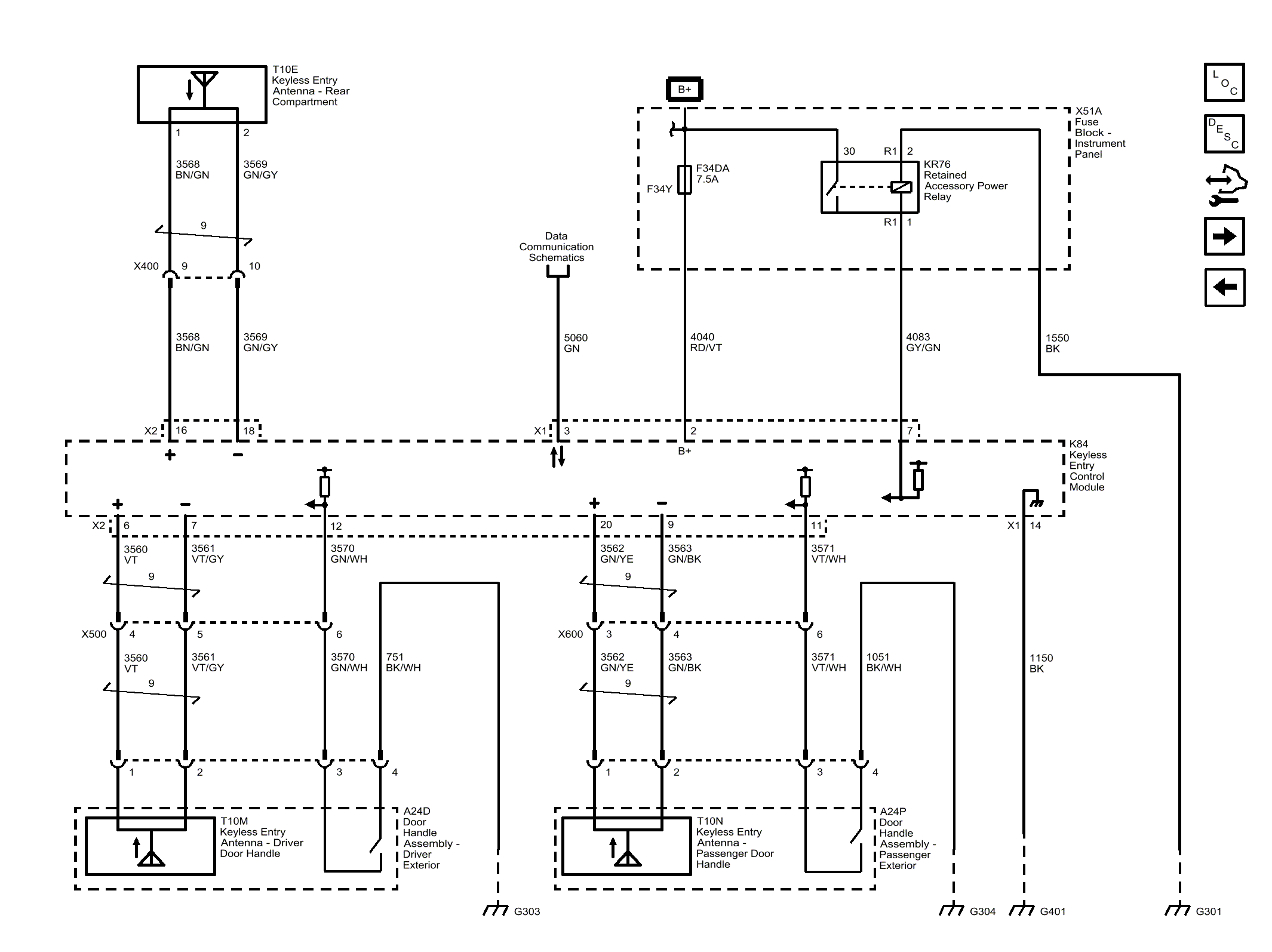

Fig 1: Keyless Entry - Passive Entry and Keyless Start (1 of 2) (Chevrolet with ATH and BTM)
GM4477100Courtesy of GENERAL MOTORS COMPANY
