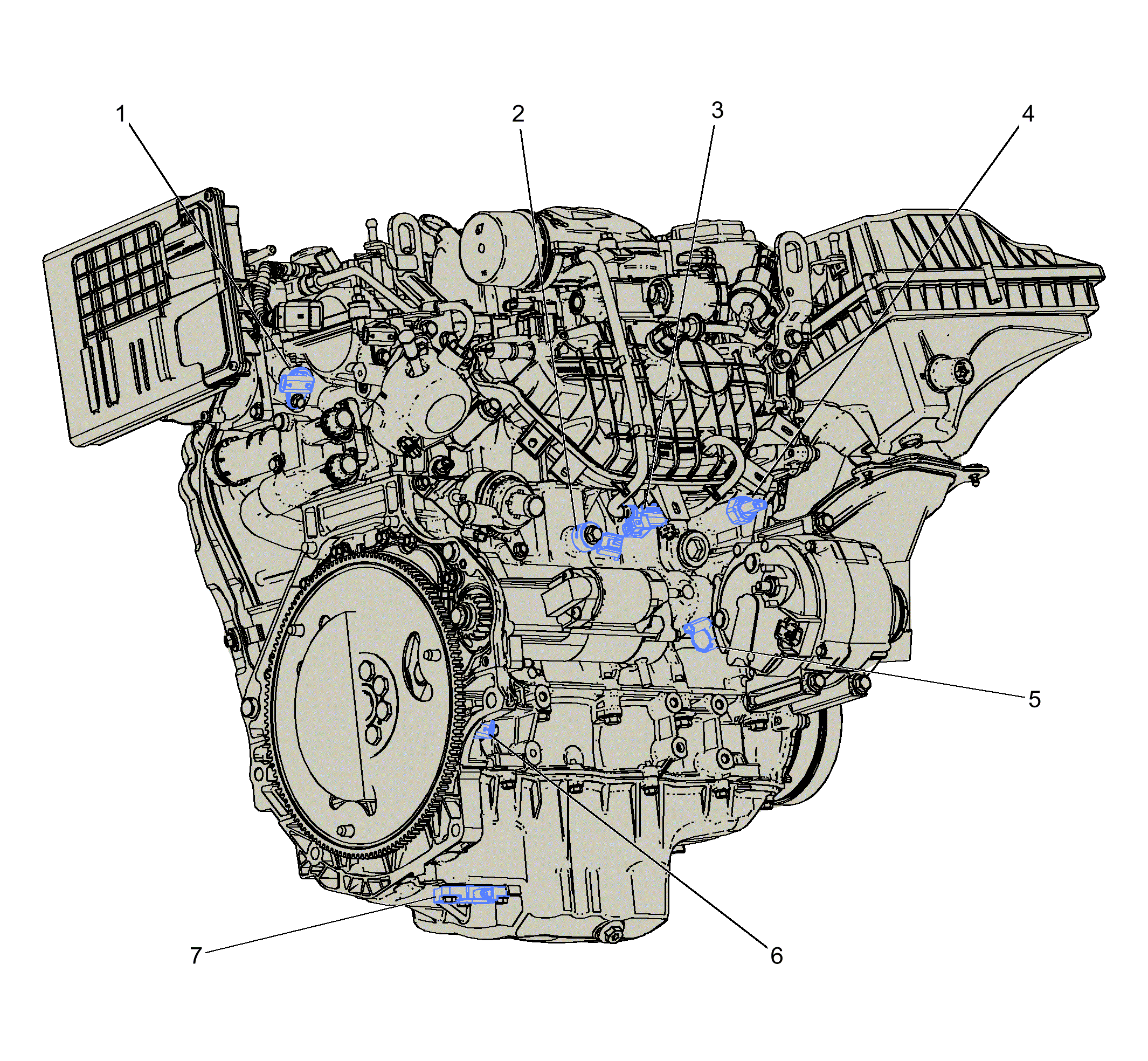

Lower Rear of the Engine Components (LWC)

GM2912700
Lower Rear of the Engine Components (LWC)

Items
1. B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust
2. B68 Knock Sensor B68 Knock Sensor
3. Q40 Turbocharger Bypass Solenoid Valve Q40 Turbocharger Bypass Solenoid Valve
4. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor
5. Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve
6. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor
7. B35 Engine Oil Level Switch B35 Engine Oil Level Switch
