Pyrotechnic Rollover Bar Actuators Components

GM4237754Courtesy of GENERAL MOTORS COMPANY

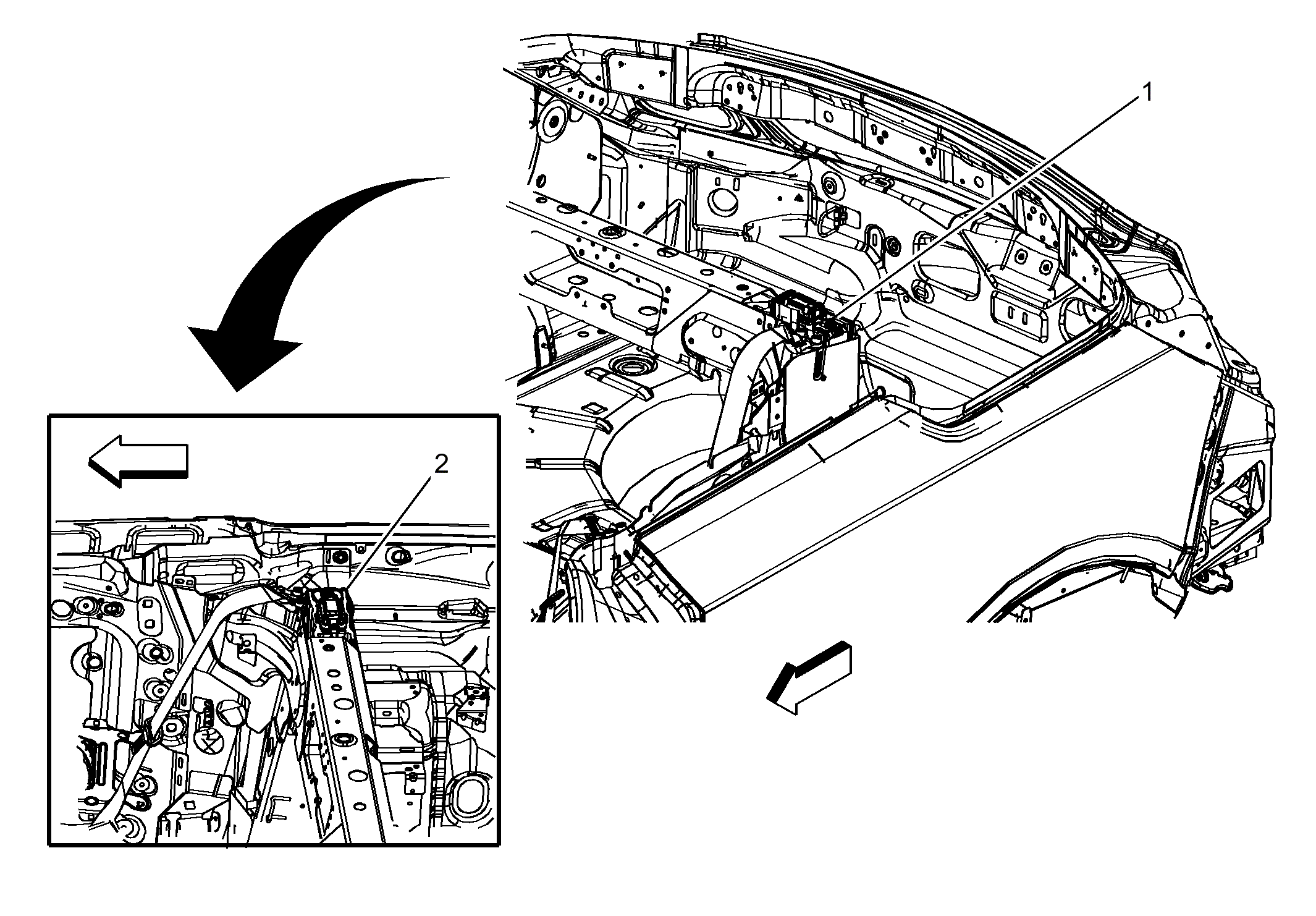

Pyrotechnic Rollover Bar Actuators Components

Items
1. F121L Pyrotechnic Rollover Bar Actuator - Left F121L Pyrotechnic Rollover Bar Actuator - Left
2. F121R Pyrotechnic Rollover Bar Actuator - Right F121R Pyrotechnic Rollover Bar Actuator - Right
