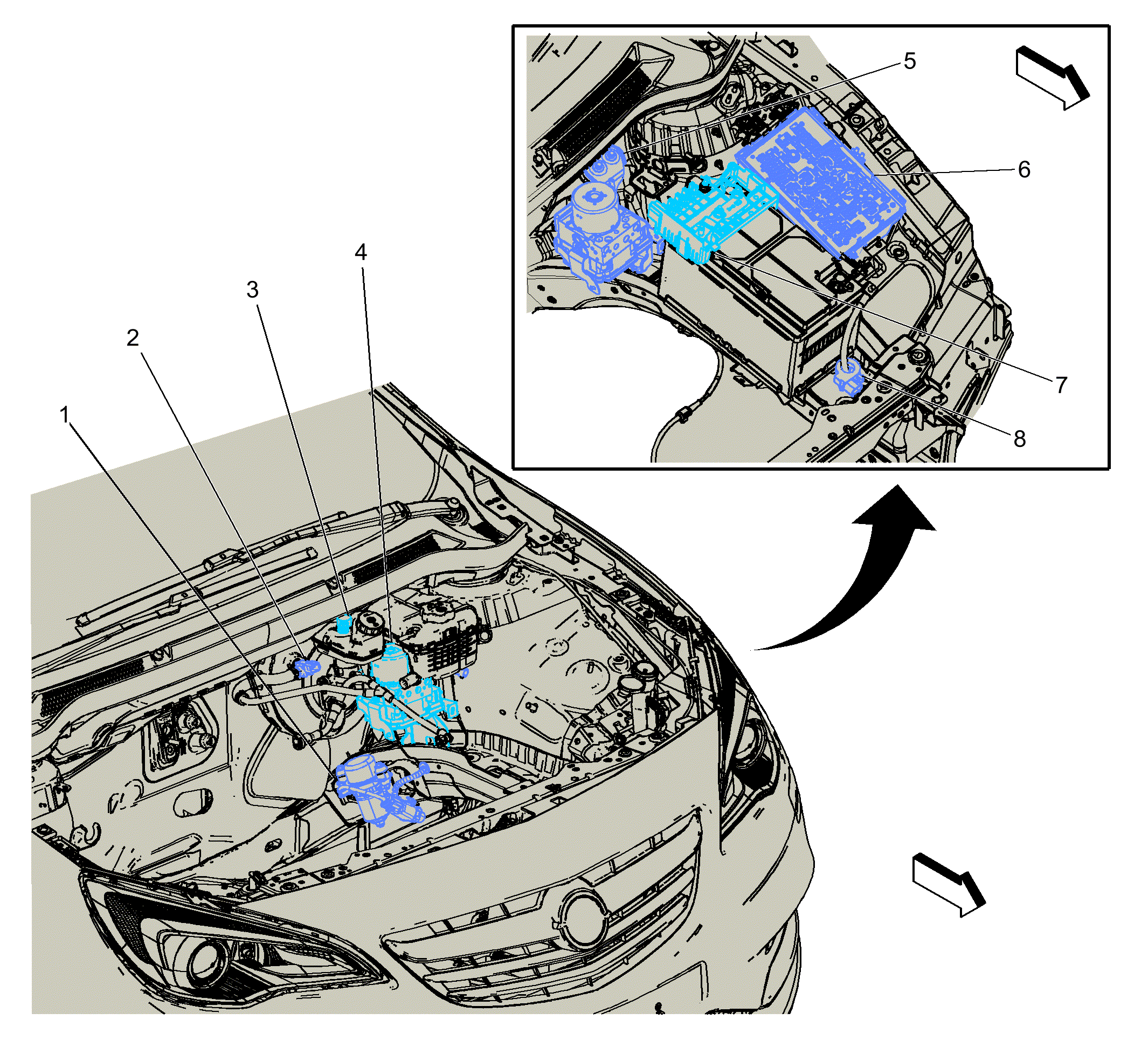

Left Side of the Engine Compartment Components
Left Side of the Engine Compartment Components
| Items |
|---|
| 1. KR14 Brake Booster Pump Motor Relay KR14 Brake Booster Pump Motor Relay |
| 2. B19B Brake Booster Vacuum Sensor |
| 3. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
| 4. K17 Electronic Brake Control Module K17 Electronic Brake Control Module |
| 5. K71 Transmission Control Module |
| 6. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X6 |
| 7. X50D Fuse Block - Battery X50D Fuse Block - Battery X1X50D Fuse Block - Battery X2X50D Fuse Block - Battery X3X50D Fuse Block - Battery X4X50D Fuse Block - Battery X5X50D Fuse Block - Battery X6 |
| 8. B18 Battery Current Sensor B18 Battery Current Sensor |
