Home >> Buick >> 2017 >> Cascada Base >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic and Wiring Diagrams >> Data Communication Wiring Schematics >> Local Interconnect Network (LIN) Bus 6 and 7

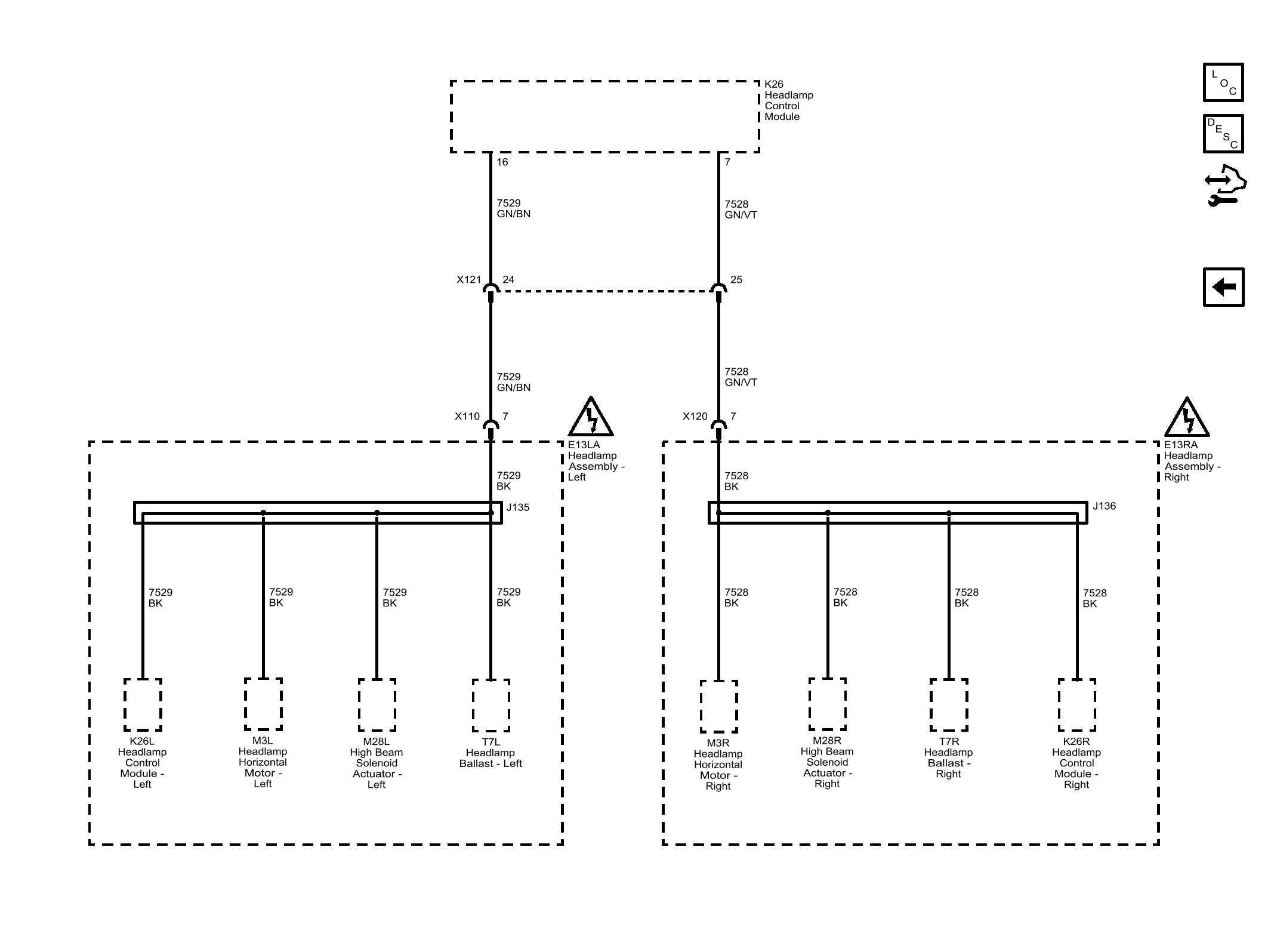

Local Interconnect Network (LIN) Bus 6 and 7

GM4890328

Courtesy of GENERAL MOTORS COMPANY
