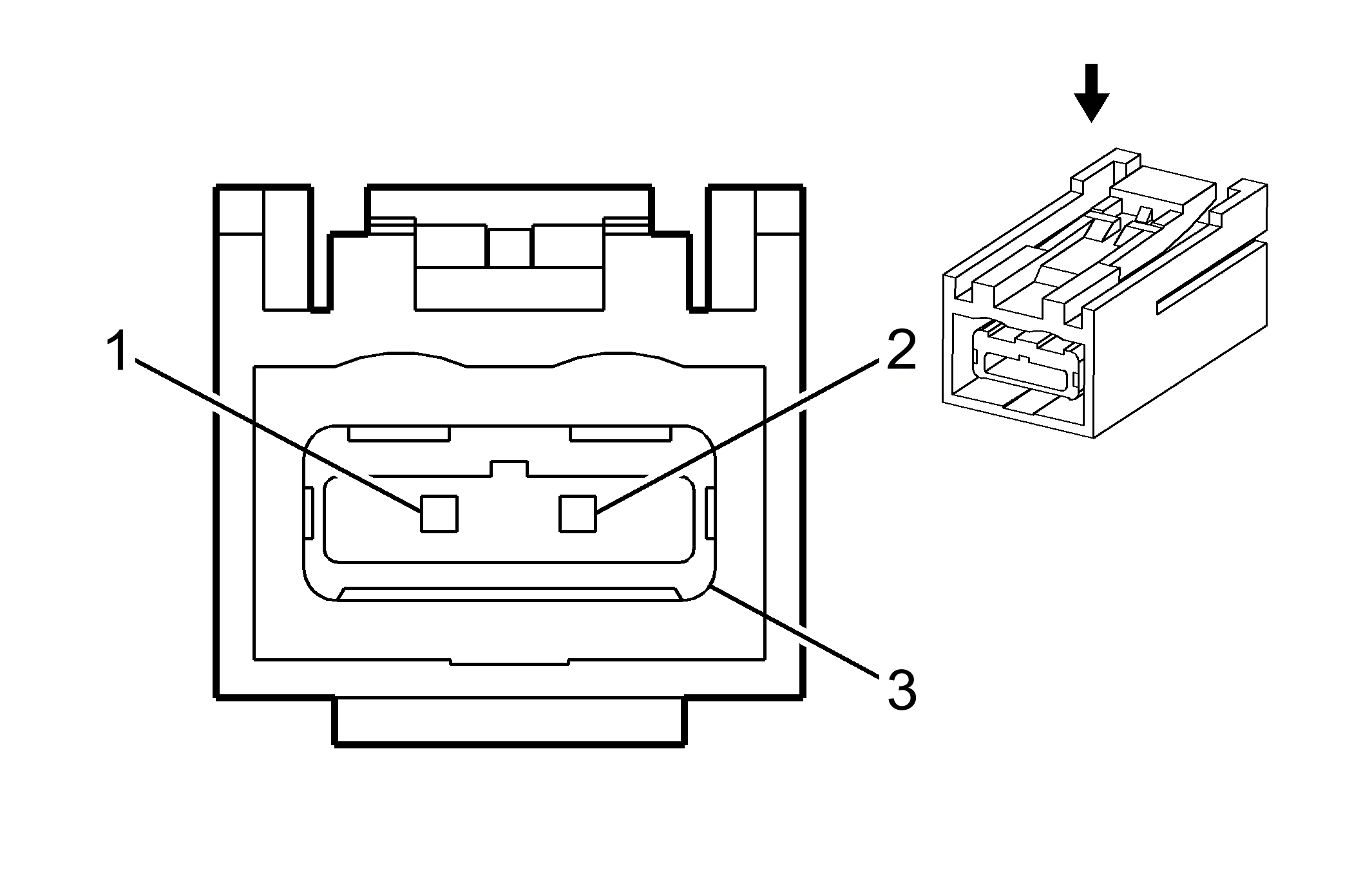

P17 Info Display Module X2
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel TWINAX
- OEM Connector: MX38002FQ1
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 3-Way F MX38 Series Twinax, Sealed (L-BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU |
USB |
USB Cable |
I |
- |
| 2 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
