Removal Procedure

  1. Remove rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement .

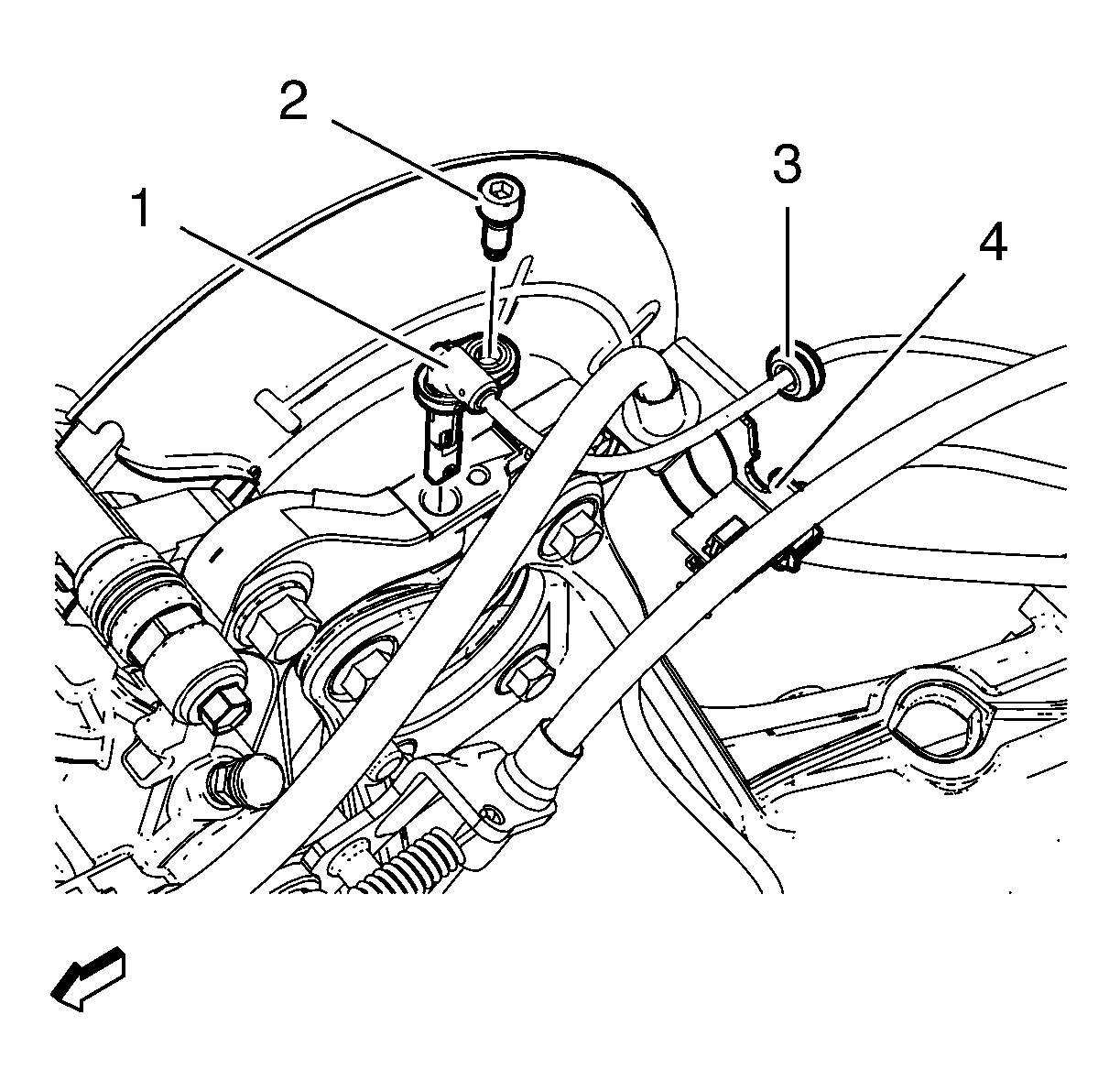

  2. GM2028189

    Remove the wheel speed sensor screw (2) from the steering knuckle.

  3. Remove the wheel speed sensor (1).
  4. Remove the wiring harness (3) from the bracket (4).

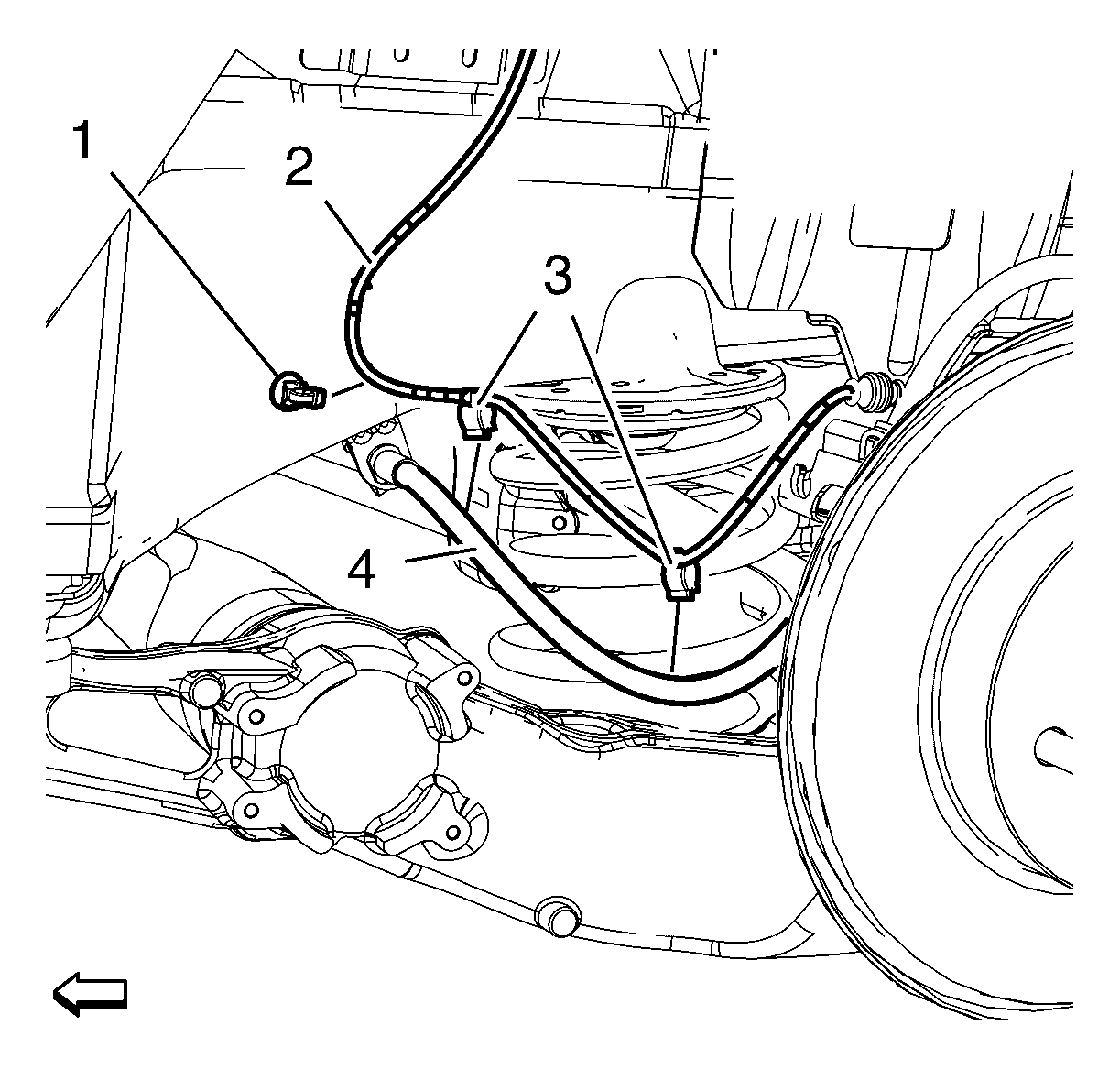

  5. GM2189141

    Remove the wiring harness (2) retainers (3) from the brake hose (4).

  6. Remove the wiring harness (2) from the body retainer (1).
  7. Replace the body retainer (1).

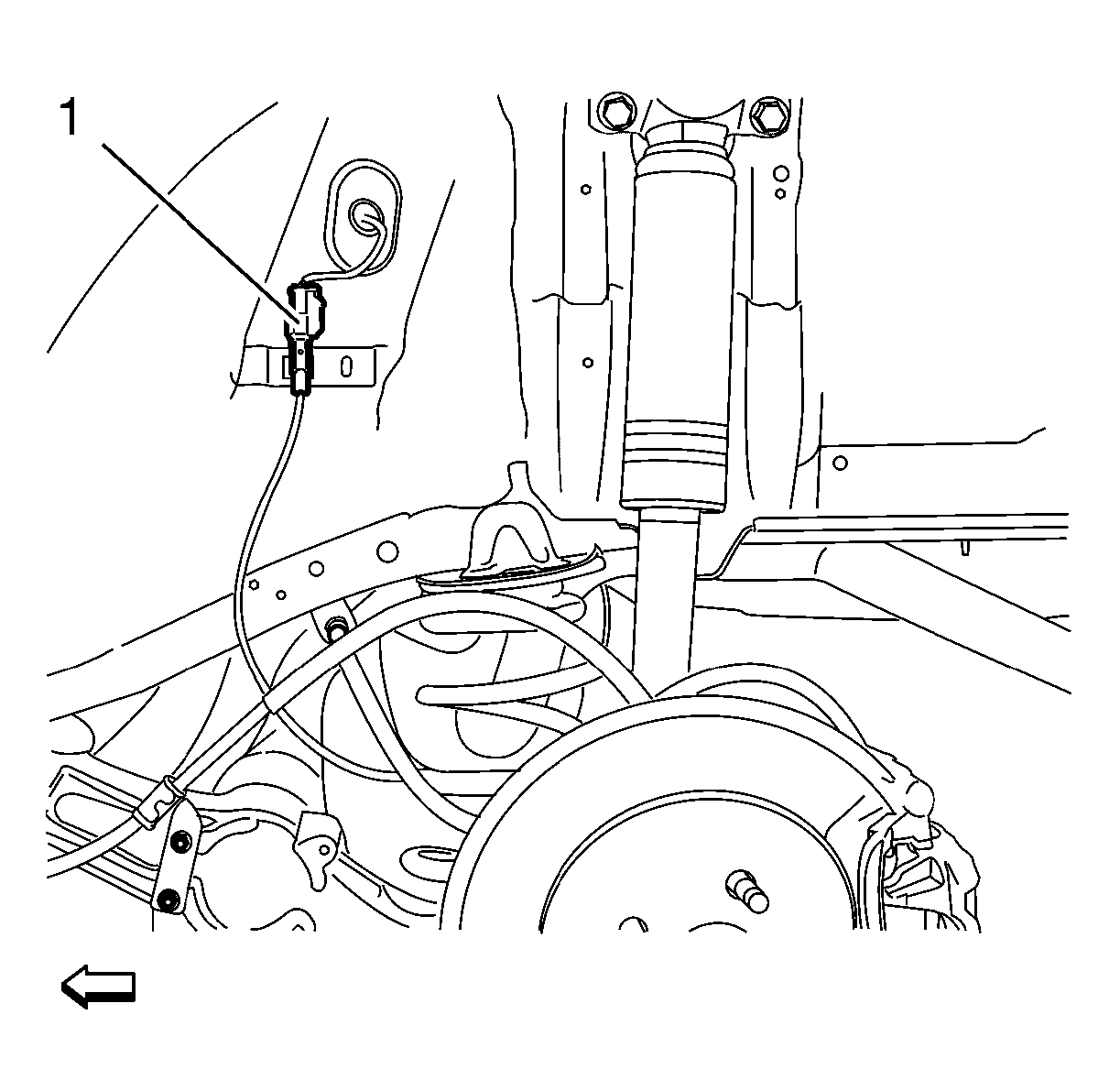

  8. GM2028202

    Disconnect the electrical connector (1).

  9. Remove wheel speed sensor from the vehicle.
