Front License Plate Bracket Replacement

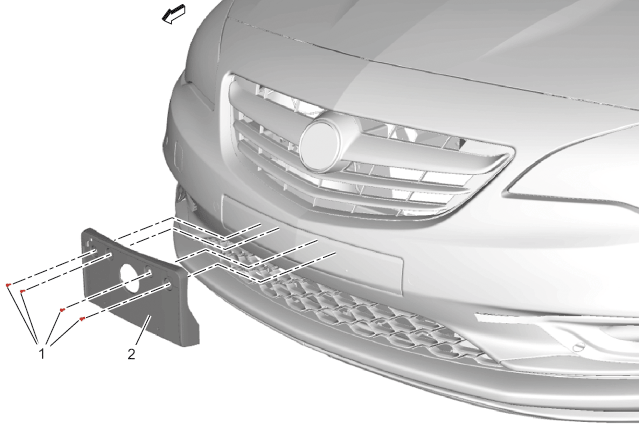

GM4248467
Callout Component Name
1 Front License Plate Bracket Fastener[4x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front License Plate Bracket
NOTE:

Observe the correct orientation before installing the bracket.
