S51 Telematics Button Assembly
 Courtesy of GENERAL MOTORS COMPANY
|

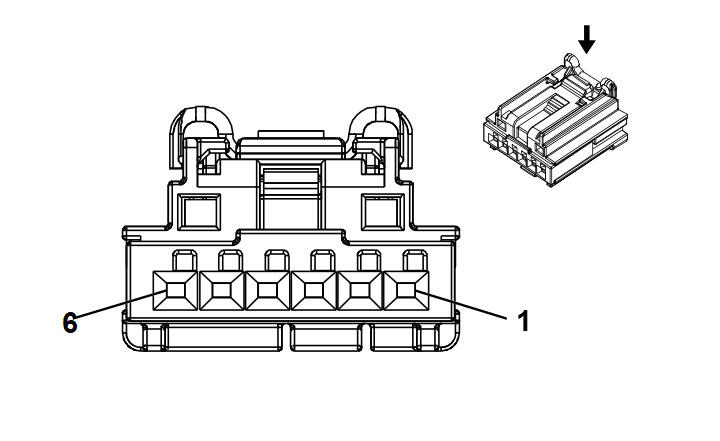

Connector Part Information
- Harness Type: Headliner
- OEM Connector: 2035363-4
- Service Connector: 19332786
- Description: 6-Way F 0.64 Generation Y Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN/BK |
2515 |
Keypad Control |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
GN/WH |
2514 |
Keypad Signal |
I |
- |
| 4 |
0.35 |
YE/VT |
2516 |
Keypad Green LED Control |
I |
- |
| 5 |
0.35 |
BN/WH |
2517 |
Keypad Red LED Control |
I |
- |
| 6 |
0.35 |
BK |
1550 |
Ground |
I |
- |
