S115D Easy Entry Switch - Driver Seat
 Courtesy of GENERAL MOTORS COMPANY
|

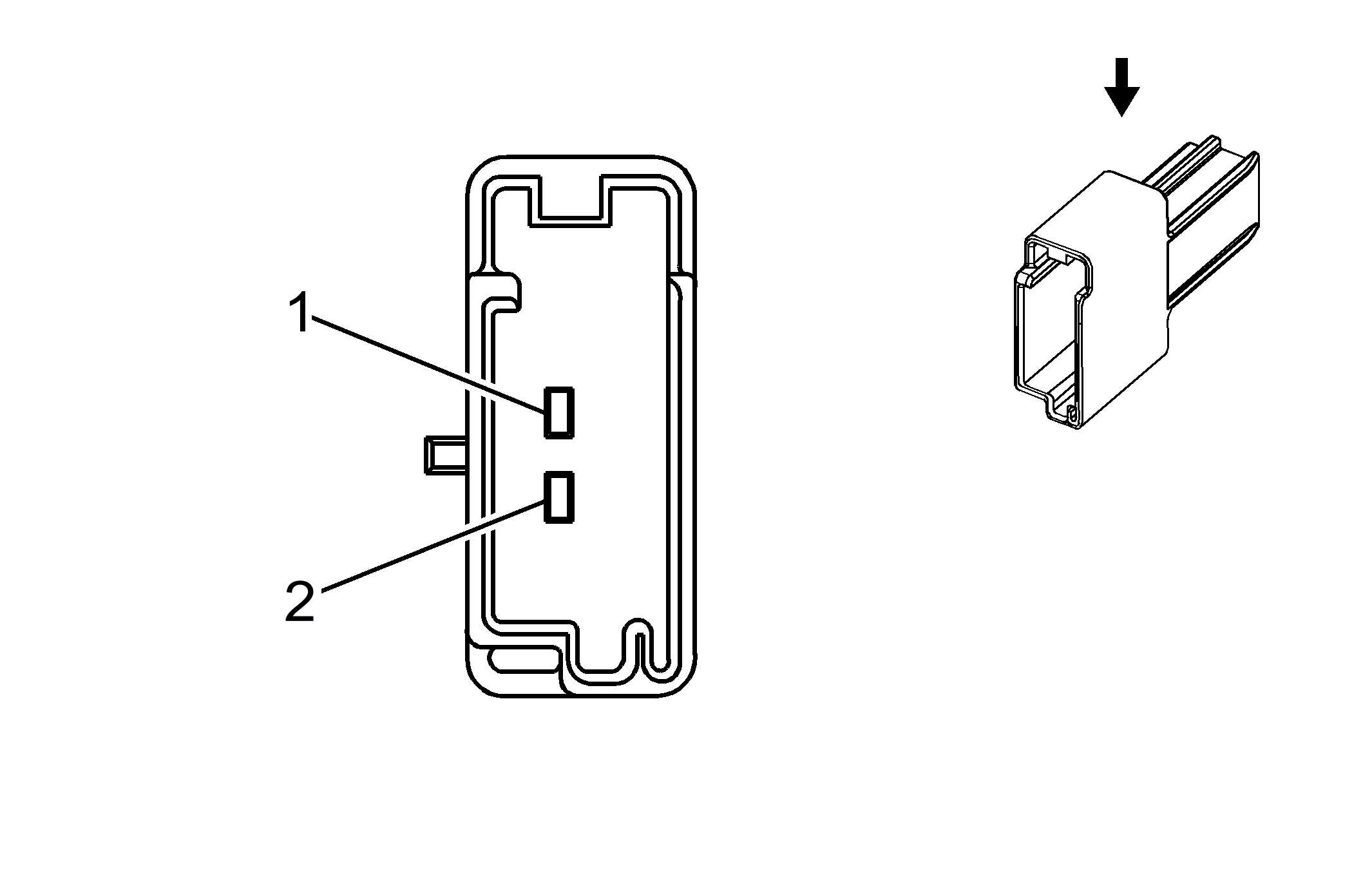

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 6098-5529
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 1.5 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU/VT |
4430 |
Driver Side Seat Back Unlock Switch Signal |
I |
- |
| 2 |
0.35 |
GN |
4431 |
Driver Side Seat Back Lock Switch Signal |
I |
- |
