K26 Headlamp Control Module
 Courtesy of GENERAL MOTORS COMPANY
|

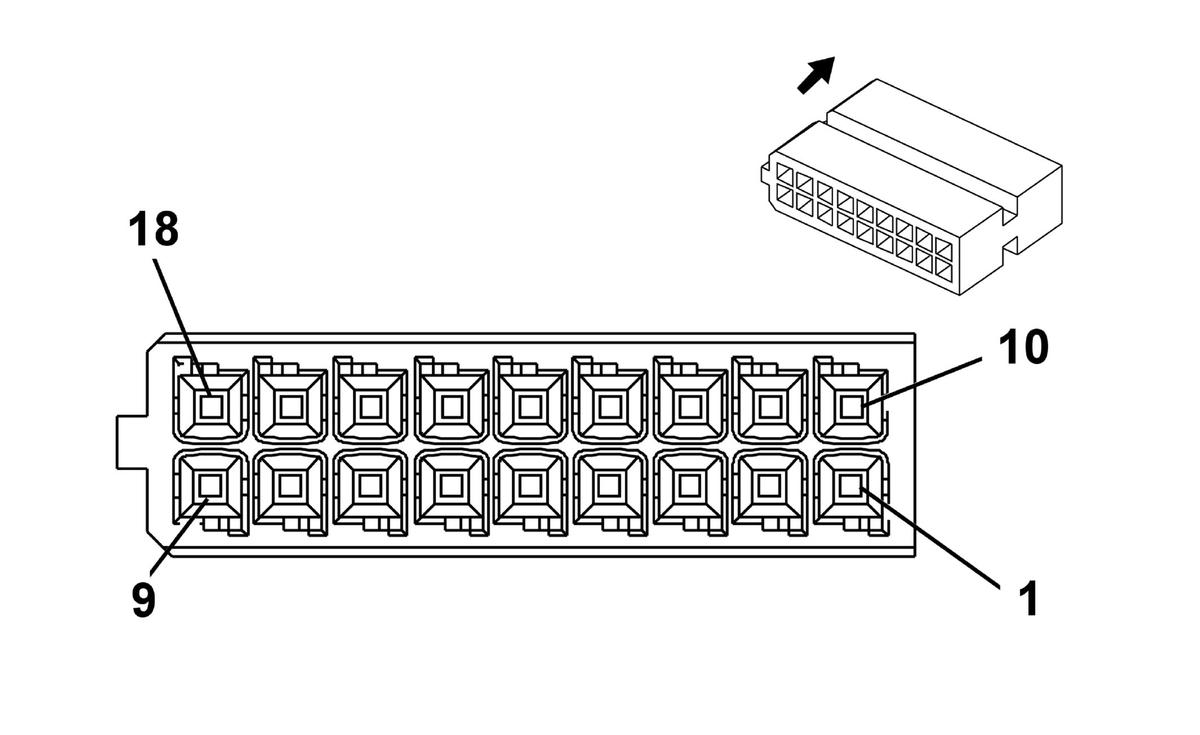

Connector Part Information
- Harness Type: Body
- OEM Connector: 1379102-1
- Service Connector: 13504129
- Description: 18-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13588065 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD/VT |
1242 |
Battery Positive Voltage |
I |
- |
| 2 |
0.5 |
BN/WH |
7525 |
Front Axle Level Sensor Signal |
I |
- |
| 3 |
0.5 |
BK |
1150 |
Ground |
I |
- |
| 4 |
0.5 |
BN |
2184 |
Automatic Level Control Position Sensor Signal |
I |
- |
| 5 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.5 |
GN/VT |
7528 |
Local Interconnect Network Serial Data Bus 6 |
I |
- |
| 8 |
0.5 |
WH/BU |
5986 |
Serial Data Communication Enable |
I |
- |
| 9 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
- |
| 10 |
0.5 |
WH/RD |
2165 |
Automatic Level Control Position Sensor 5V Reference |
I |
- |
| 11 |
0.75 |
YE/GY |
57 |
Left Cornering Lamp Control |
I |
- |
| 12 |
0.5 |
BK/BN |
2185 |
Automatic Level Control Position Sensor Low Reference |
I |
- |
| 13 |
0.75 |
YE/WH |
58 |
Right Cornering Lamp Control |
I |
- |
| 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.75 |
VT/GY |
539 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 16 |
0.5 |
GN/BN |
7529 |
Local Interconnect Network Serial Data Bus 7 |
I |
- |
| 17 |
0.75 |
VT/GY |
539 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 18 |
0.5 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
- |
