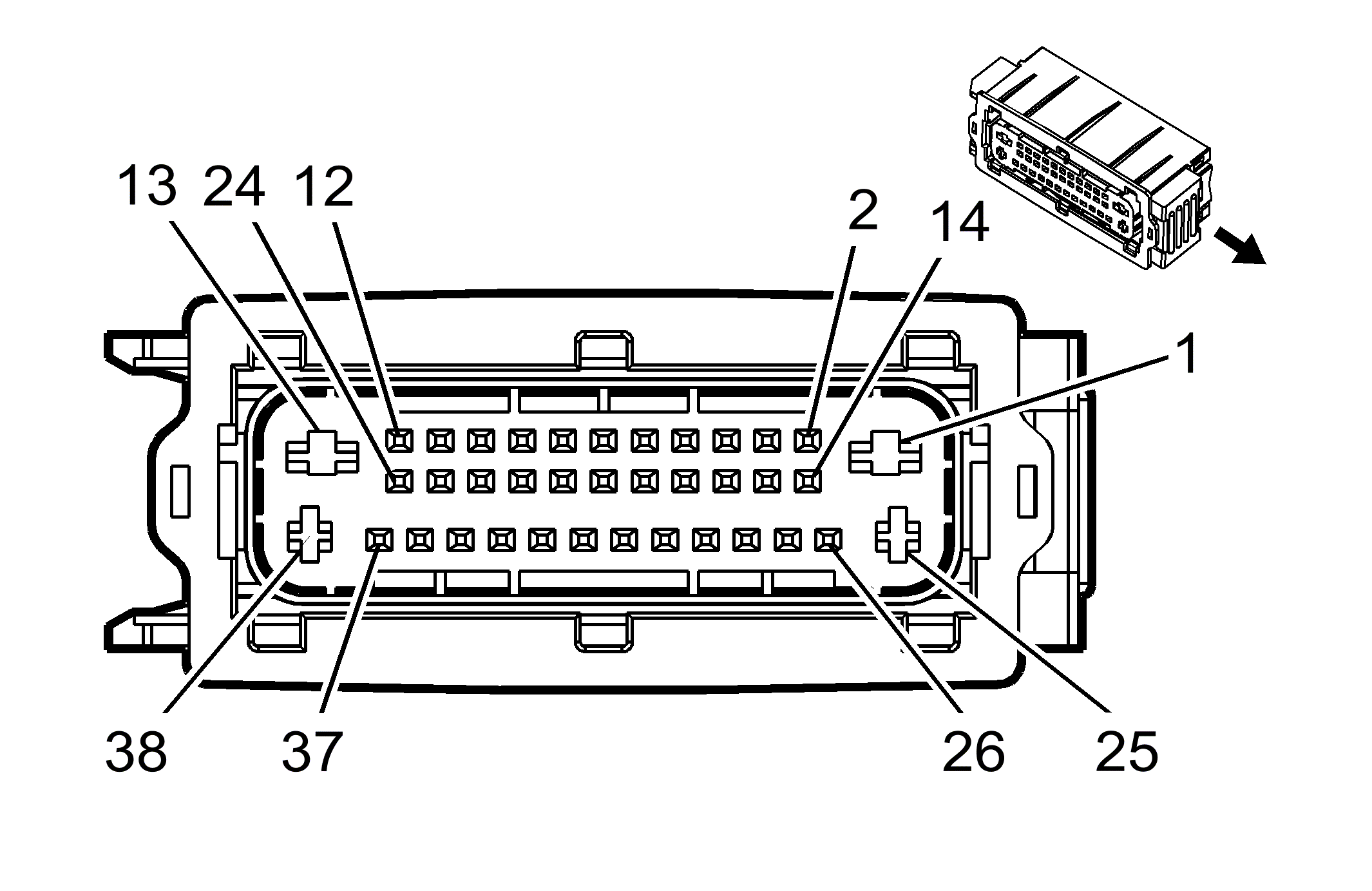

K17 Electronic Brake Control Module

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13578883	J-35616-64B (LT BU)	J-38125-215A	SAITS-A03T-M064	Yazaki 14	9	9
II	13580821	J-35616-4A (PU)	J-38125-36	Not Available	Not Available	Not Available	Not Available
III	13588383	J-35616-40 (BU)	J-38125-11A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	6	RD/VT	340	Battery Positive Voltage	III	-
2 - 4	-	-	-	Not Occupied	-	-
5	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
6	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	I	-
7	-	-	-	Not Occupied	-	-
8	0.5	WH/BU	5986	Serial Data Communication Enable	I	-
9	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
10	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
11	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
12	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
13	6	BK	1450	Ground	III	-
14	-	-	-	Not Occupied	-	-
15	0.5	GN/BN	2087	Combined Vehicle Inertial Sensor Supply Voltage	I	-
16 - 24	-	-	-	Not Occupied	-	-
25	2.5	RD/WH	342	Battery Positive Voltage	II	-
26	0.5	GY/BN	7065	Wheel Speed Sensor Control Right Front	I	-
27	0.5	YE	872	Wheel Speed Sensor Signal Right Front	I	-
28	0.5	GN/GY	333	Brake Fluid Level Sensor Signal	I	-
29	0.5	BU	884	Wheel Speed Sensor Signal Left Rear	I	-
30	0.5	GY/BK	7127	Wheel Speed Sensor Control Left Rear	I	-
31 - 32	-	-	-	Not Occupied	-	-
33	0.5	GY/YE	7128	Wheel Speed Sensor Control Right Rear	I	-
34	0.5	VT	882	Wheel Speed Sensor Signal Right Rear	I	-
35	0.5	BN	6305	Brake Vacuum Switch Signal	I	-
36	0.5	GY	830	Wheel Speed Sensor Signal Left Front	I	-
37	0.5	GY/WH	7064	Wheel Speed Sensor Control Left Front	I	-
38	-	-	-	Not Occupied	-	-
