Passenger Seat Components

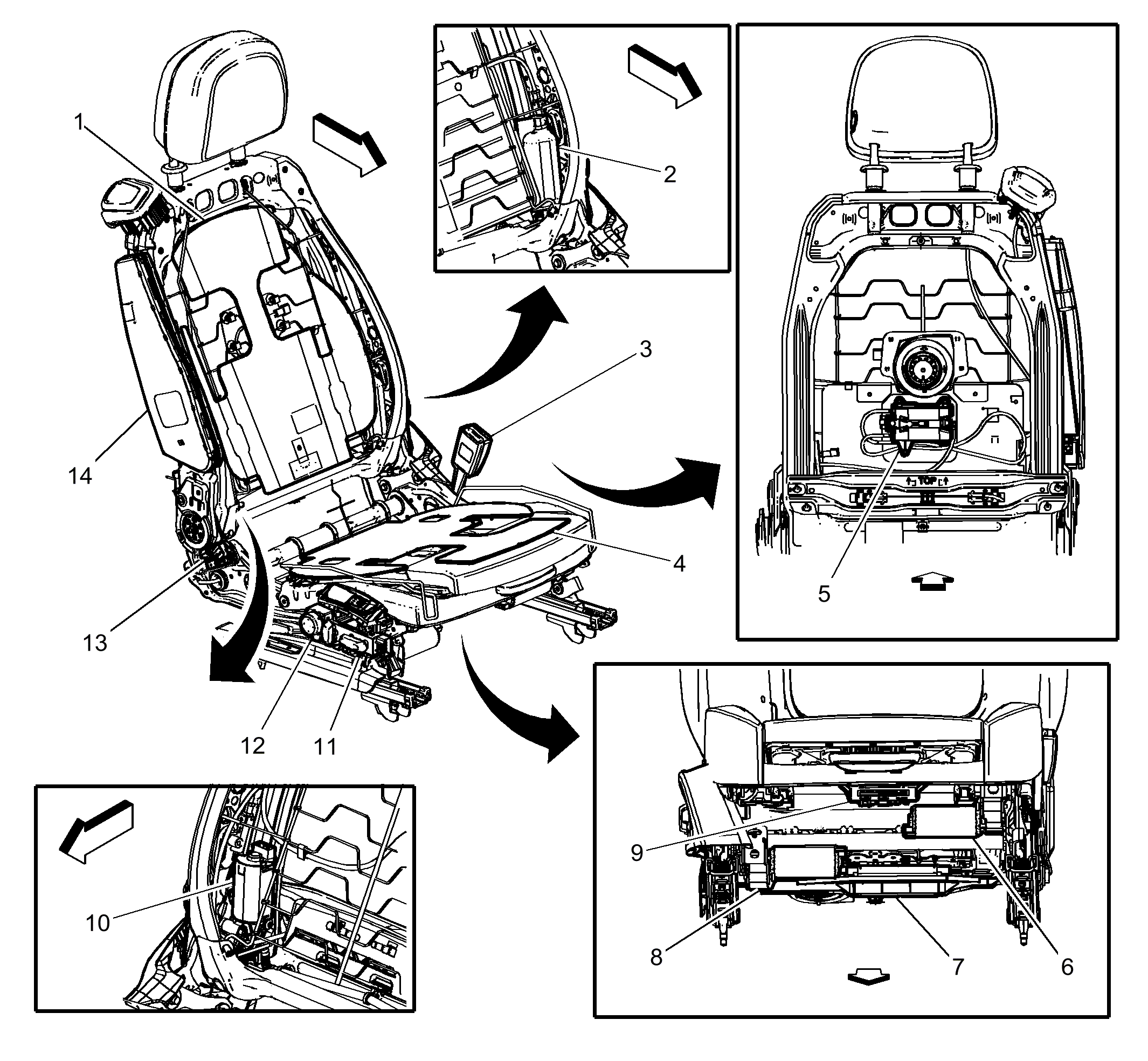

GM4237997Courtesy of GENERAL MOTORS COMPANY
Passenger Seat Components

Items
1. E14C Seat Heating Element - Passenger Back E14C Seat Heating Element - Passenger Back
2. A14P Seat Lumbar Support Pump - Passenger A14P Seat Lumbar Support Pump - Passenger
3. B153P Seat Belt Buckle - Passenger B153P Seat Belt Buckle - Passenger
4. E14D Seat Heating Element - Passenger Cushion E14D Seat Heating Element - Passenger Cushion
5. Q51P Seat Lumbar Support Valve Assembly - Passenger Q51P Seat Lumbar Support Valve Assembly - Passenger
6. M55P Seat Rear Vertical Motor - Passenger M55P Seat Rear Vertical Motor - Passenger
7. M51P Seat Horizontal Motor - Passenger M51P Seat Horizontal Motor - Passenger X1M51P Seat Horizontal Motor - Passenger X2
8. M50P Seat Front Vertical Motor - Passenger M50P Seat Front Vertical Motor - Passenger
9. K29 Seat Heating Control Module K29 Seat Heating Control Module X1K29 Seat Heating Control Module X2K29 Seat Heating Control Module X3
10. M56P Seat Recline Motor - Passenger M56P Seat Recline Motor - Passenger
11. S64P Seat Adjuster Switch - Passenger S64P Seat Adjuster Switch - Passenger
12. S65P Seat Lumbar Support Switch - Passenger S65P Seat Lumbar Support Switch - Passenger
13. S115P Easy Entry Switch - Passenger Seat S115P Easy Entry Switch - Passenger Seat
14. F106P Seat Side Air Bag - Passenger F106P Seat Side Air Bag - Passenger
