Convertible Top Position Components
 Courtesy of GENERAL MOTORS COMPANY
|

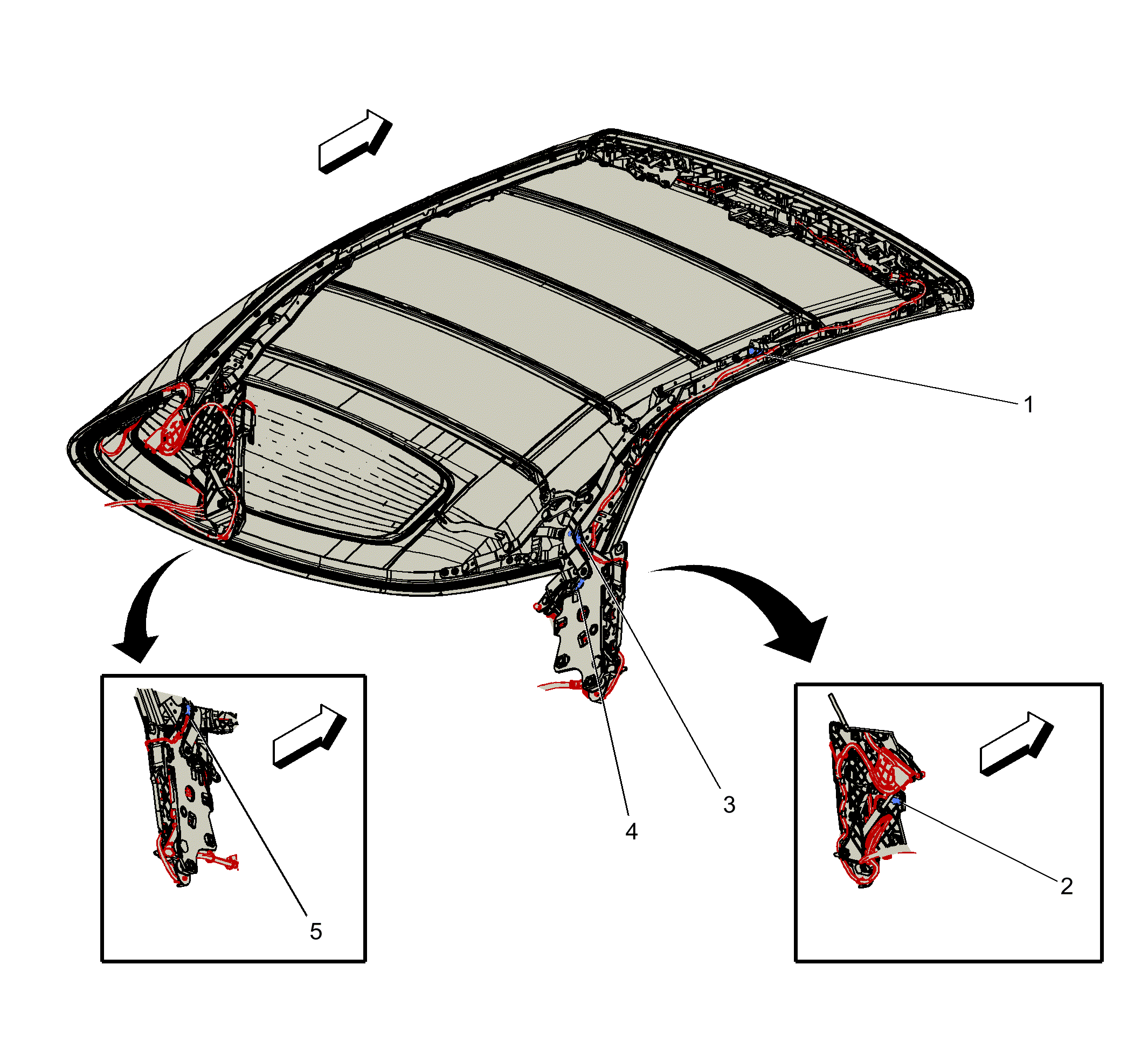

Convertible Top Position Components
| Items |
| 1. B252 Folding Top Up Position Sensor |
| 2. B251 Folding Top Down Position Sensor |
| 3. B249L Folding Top Tension Bow Down Position Sensor - Left |
| 4. B250 Folding Top Tension Bow Up Position Sensor |
| 5. B249R Folding Top Tension Bow Down Position Sensor - Right |
