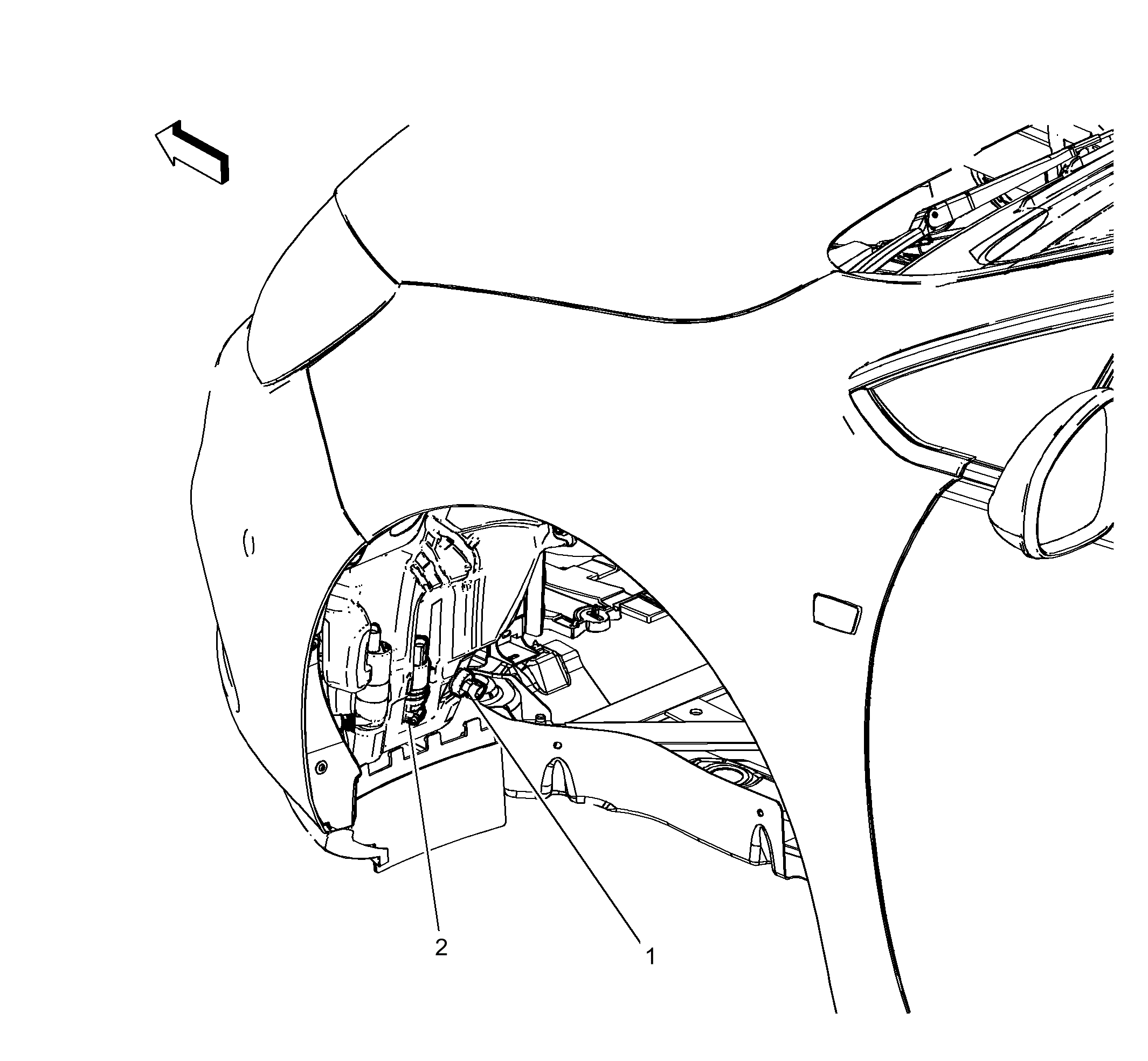

Washer Motor and Pump Components

GM4237826Courtesy of GENERAL MOTORS COMPANY
Washer Motor and Pump Components

Items
1. B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch
2. G24 Windshield Washer Pump G24 Windshield Washer Pump
