Installation Procedure

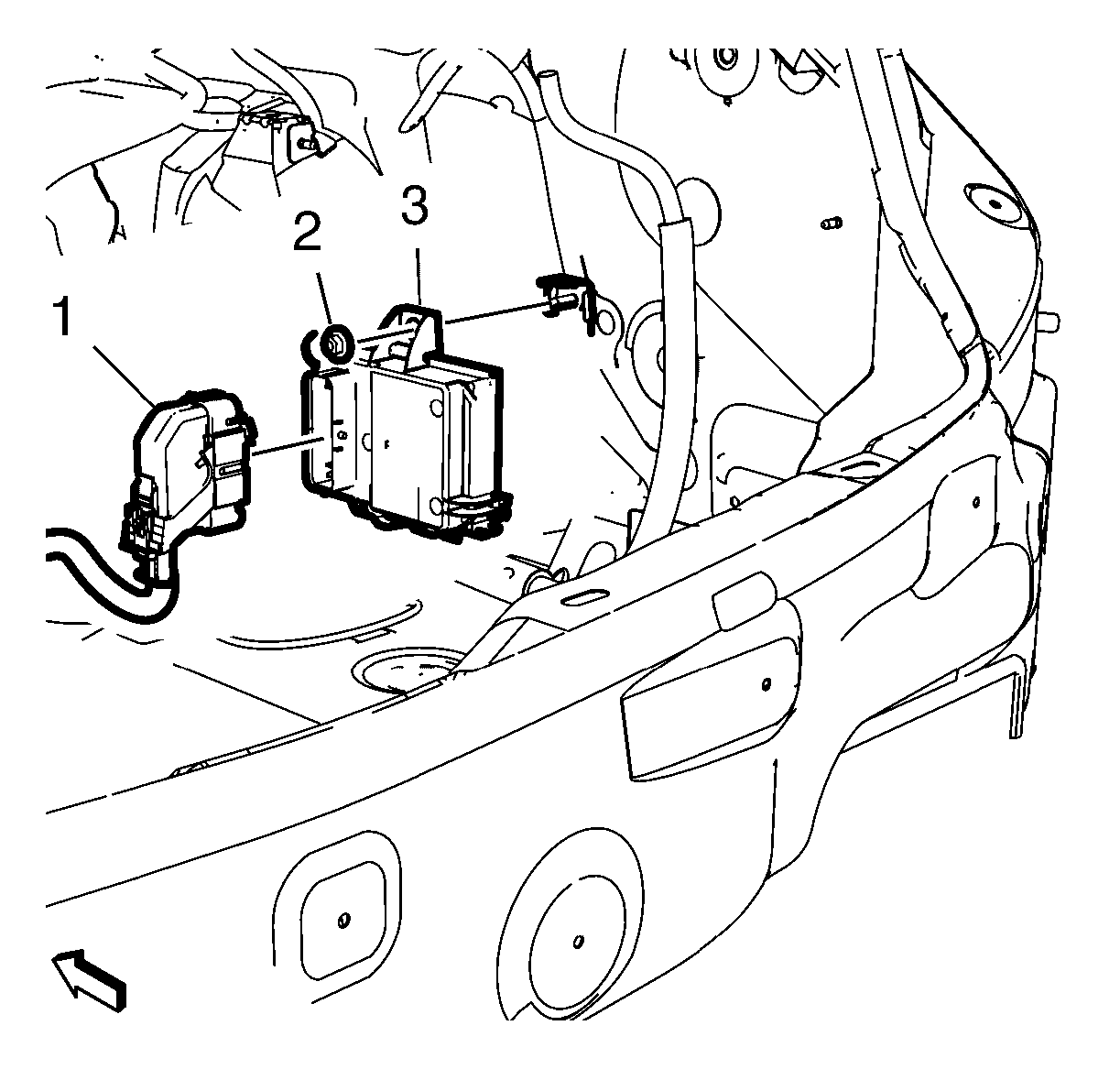

  1. GM3642881

    Remove the chassis control module (3) to the chassis control module bracket.

  2. Install the chassis control module nut (2) and tighten to 8 (71 lb in).
  3. Connect the chassis control module wiring harness plug (1).
  4. Install the quarter inner trim finish panel - right side. Refer to Quarter Inner Trim Finish Panel Replacement - Right Side .
