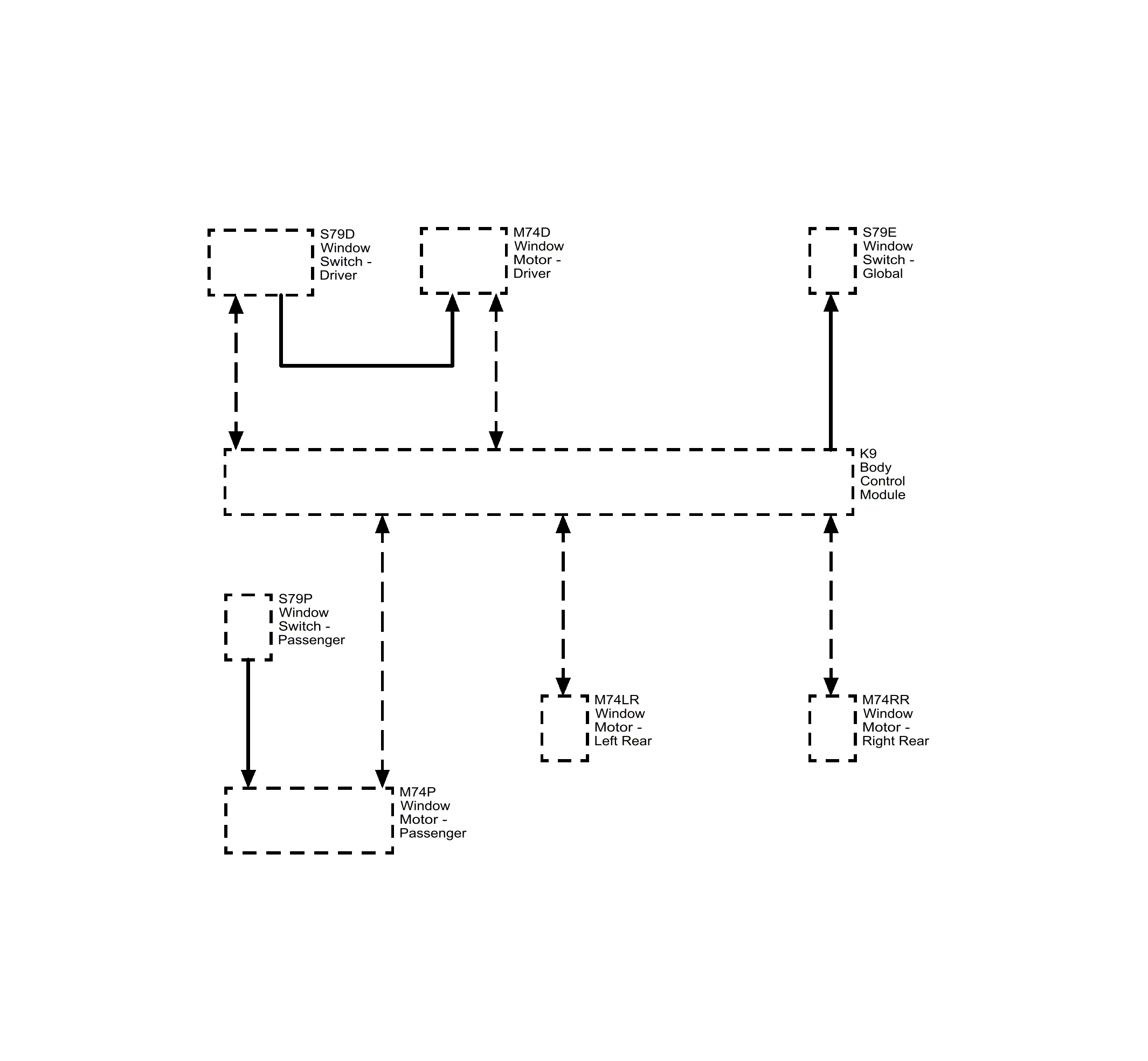

Power Windows System Components
The power window system consists of the following components:
- Driver window switch
- Passenger window switch
- Global window switch
- Window motors both doors
- Rear quarter window motors
- Body control module
- 30A Fuse
| Callout | Component Name |
|---|---|
| S79E | S79E Window Switch - Global |
| M74D | M74D Window Motor - Driver |
| S79D | S79D Window Switch - Driver |
| K9 | K9 Body Control Module |
| M74RR | M74RR Window Motor - Right Rear |
| M74LR | M74LR Window Motor - Left Rear |
| S79P | S79P Window Switch - Passenger |
| M74P | M74P Window Motor - Passenger |
