Multimedia Player Interface Module Replacement

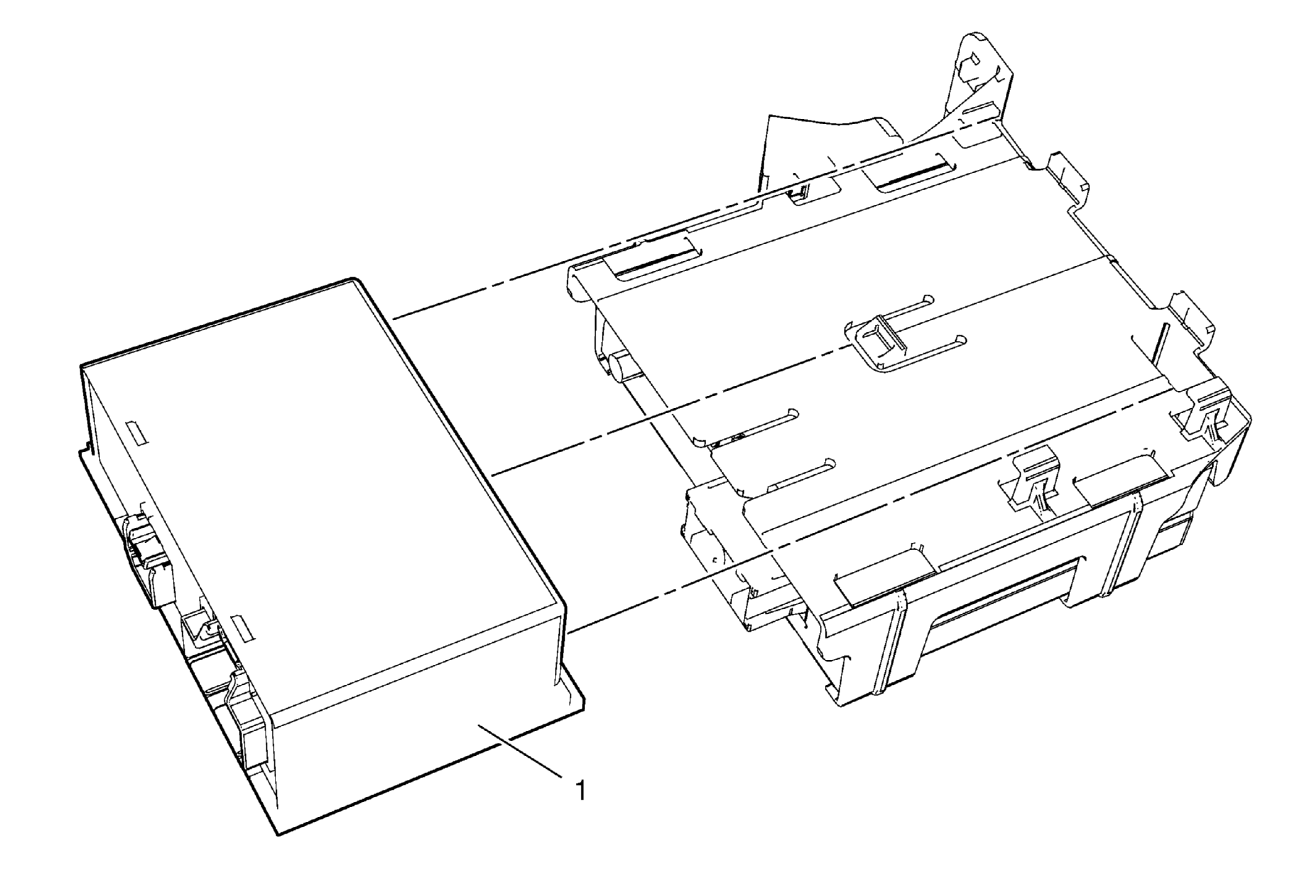

GM2189539
Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove digital radio receiver bracket. Refer to Digital Radio Receiver Bracket Replacement .
1 Multimedia Player Interface Module

Procedure

  1. Disconnect electrical components.
  2. After repairs, refer to Control Module References for programming and set up procedures.
