Removal Procedure
- Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
.
- Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement
.
Courtesy of GENERAL MOTORS COMPANY
- Insert the key into the ignition lock cylinder and turn the key to the RUN position.
Courtesy of GENERAL MOTORS COMPANY

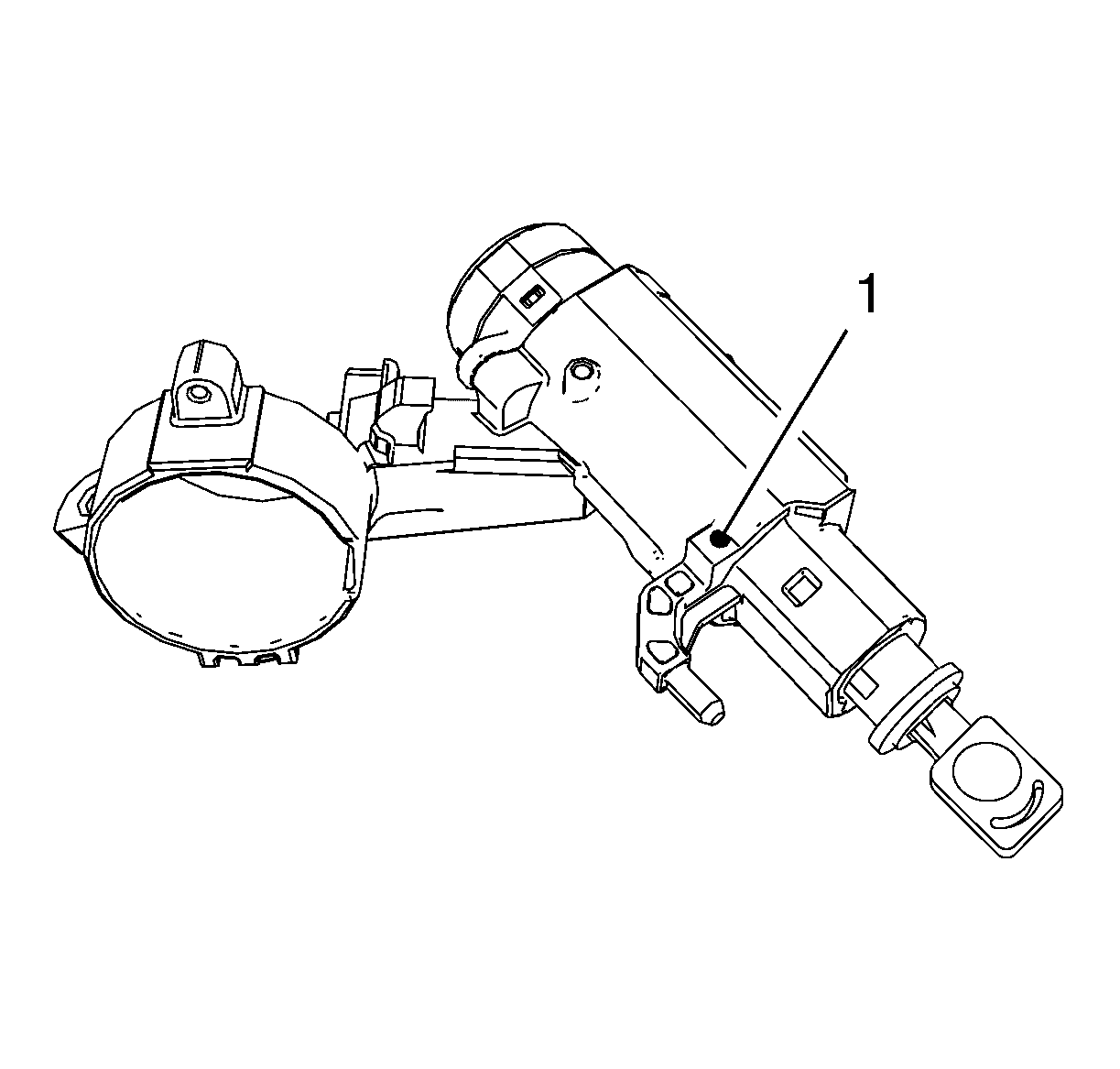

- Depress the retainer through the lock housing access hole (1) with a small Allen wrench or similar pick-type tool.
- Remove the ignition lock cylinder from the lock housing.
