Forward Collision Alert (UEU), Lane Departure Warning (UFL)
Forward Collision Alert (UEU), Lane Departure Warning (UFL)

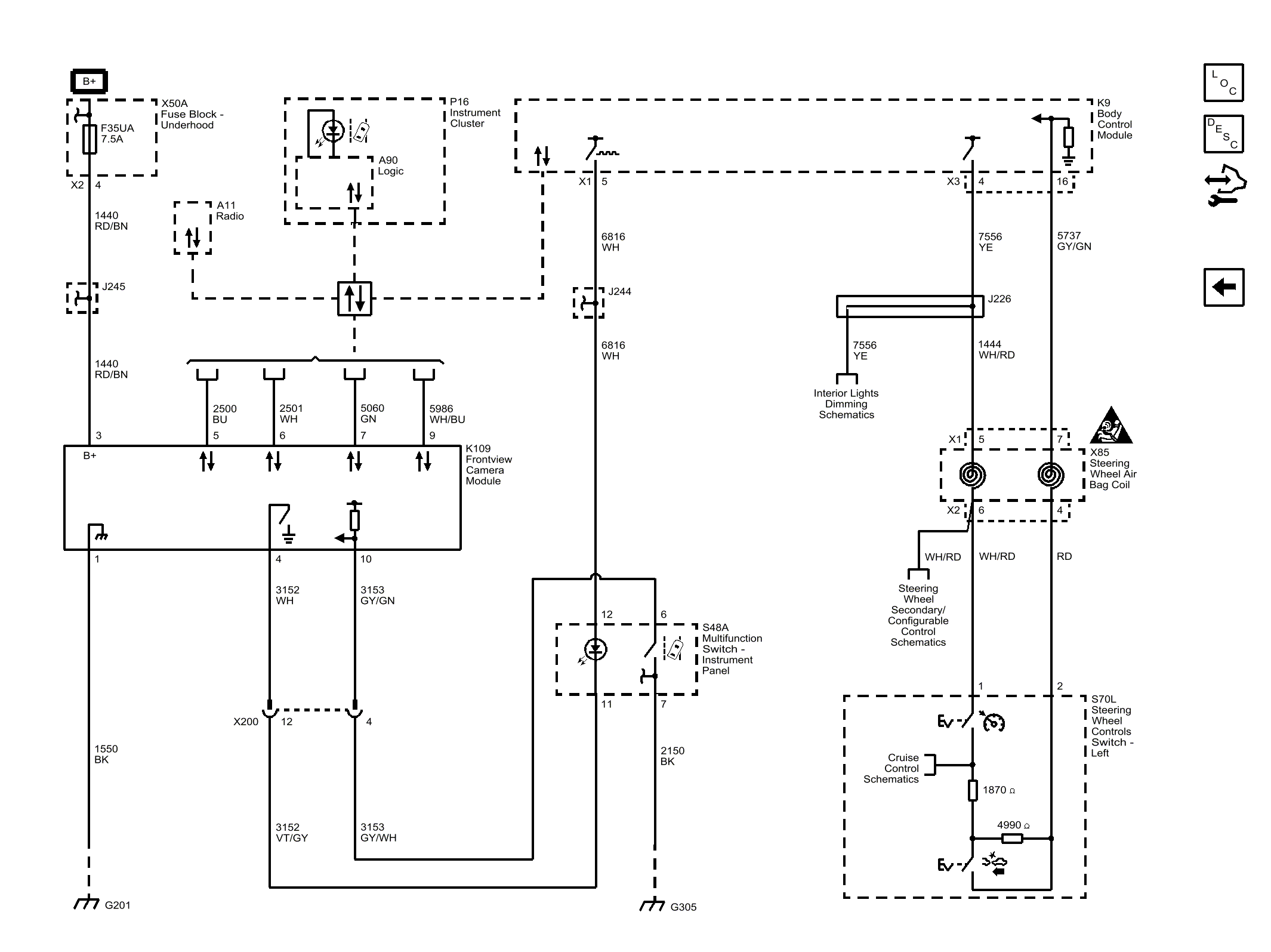

Fig 1: Forward Collision Alert (UEU), Lane Departure Warning (UFL)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
