Installation Procedure
WARNING: This page is about a different car, the 2015 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
- Install the brake caliper bracket.

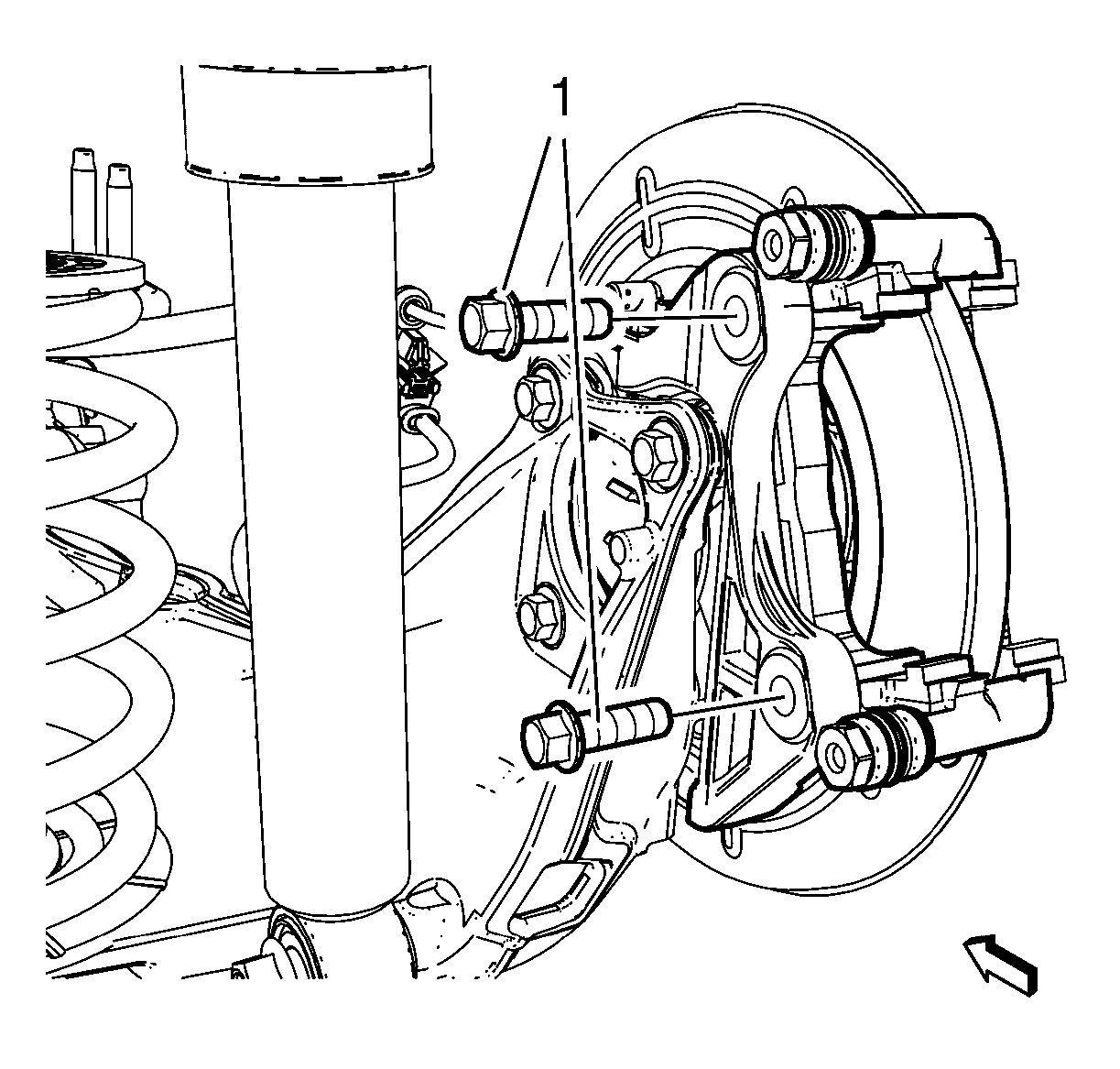

- Install the brake caliper mounting bracket bolts (1) and tighten a first pass to 100 N.m (74 lb ft).
- Tighten the brake caliper mounting bracket bolts (1) a final pass to an additional 15 - 30 degrees, using the EN-45059 meter.

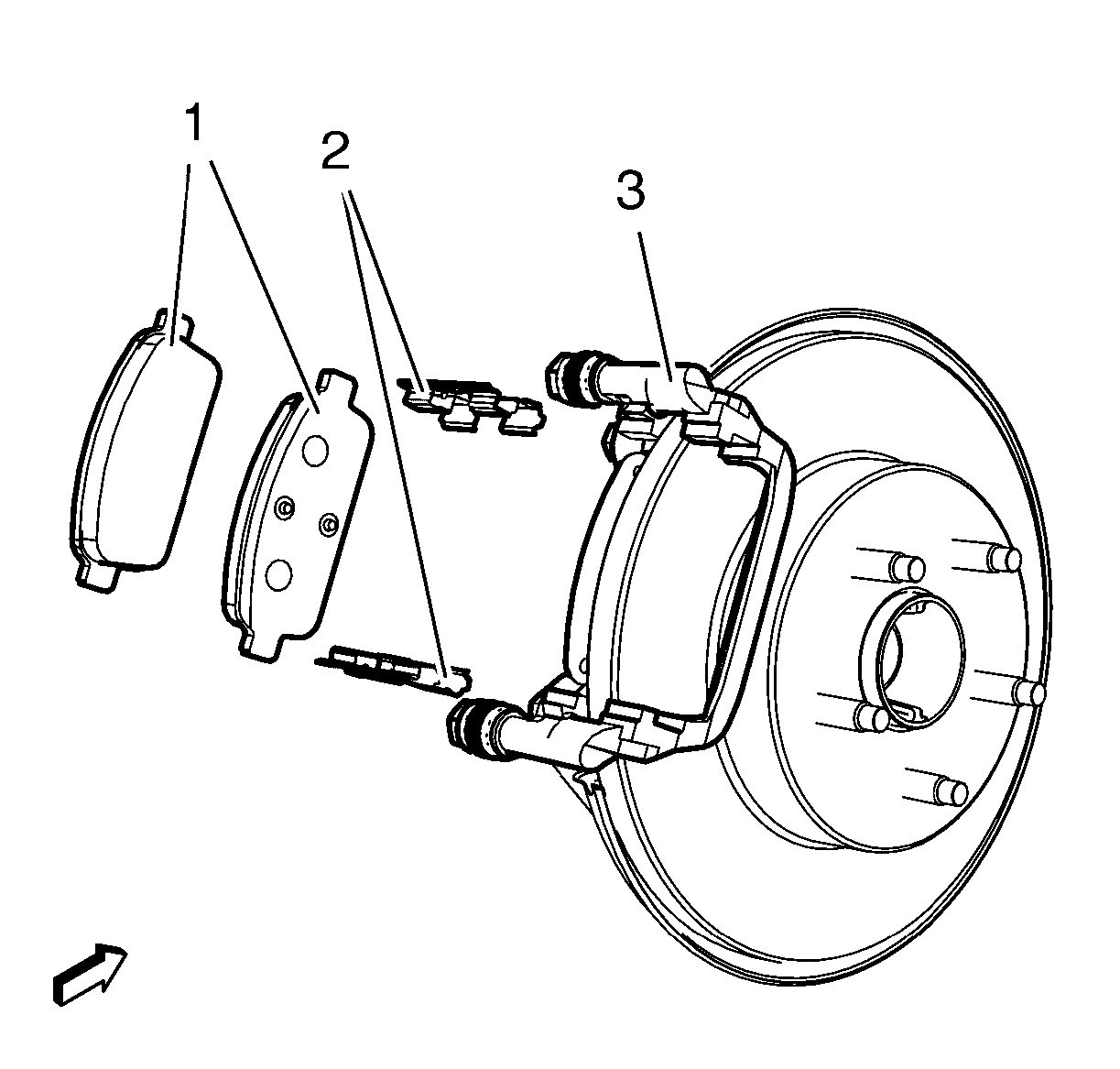

- Install the brake pad retainers (2) to the brake caliper bracket (3).
- Install the brake pads (1) to the brake caliper bracket.
- Install the brake caliper. Refer to Rear Brake Caliper Replacement .
- Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle.
- Pump the brake pedal 2-3 times in order to seat the rear disc brake pads to the rotor.
CAUTION:
This is a self-retaining fastener joint that does not require thread locking compounds. Do not attempt to clean the threads with a standard tap. If a standard tap is used, damage to the joint threads will occur.
CAUTION:
Refer to Fastener Caution .
