Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
    2. Fig 1: Retaining Tab And Battery Fuse Box Flap
    GM4422283Courtesy of GENERAL MOTORS COMPANY
  2. Unlock the retaining tab (2) on the battery fuse box flap (1).
    3. NOTE:

    Pull the battery fuse box housing. DO NOT pull the flap.

  3. Open the battery fuse box flap.
  4. Unlock the retaining tab (3) and open the battery fuse box cover (4).
    5. Fig 2: Battery Positive Cable And Starter Cable
    GM4422284Courtesy of GENERAL MOTORS COMPANY
  5. Remove the battery positive cable to starter cable nut (2).
  6. Remove the battery positive cable to starter cable (1).
  7. Loosen the 2 battery positive plate nuts (3).
  8. Loosen the battery positive cable nut (4).
  9. Loosen the battery positive cable (5).

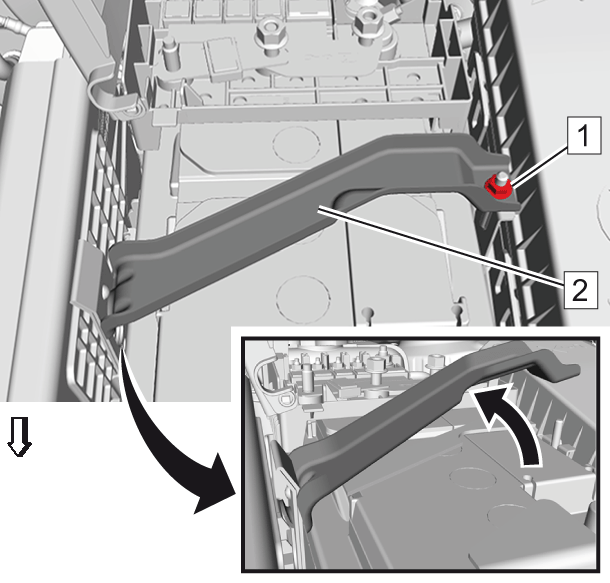

    10. Fig 3: Battery Hold Down Retainer And Nut
    GM4422285Courtesy of GENERAL MOTORS COMPANY
  10. Remove the battery hold down retainer nut (1).
  11. Remove the battery hold down retainer (2).

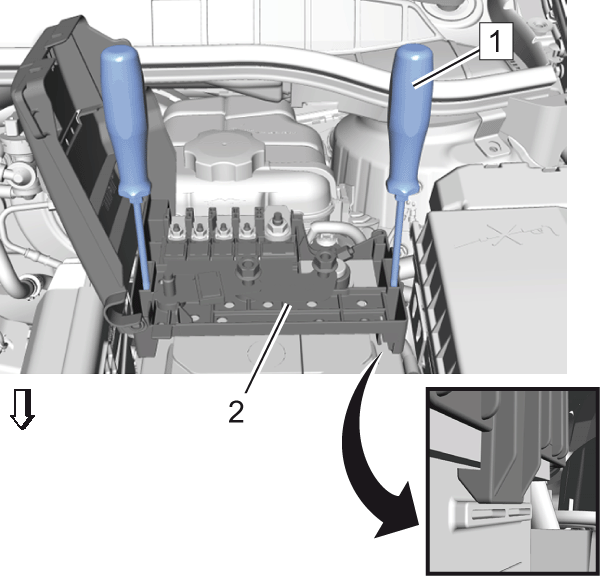

    12. Fig 4: Screwdriver And Battery Fuse Box
    GM4422286Courtesy of GENERAL MOTORS COMPANY
  12. Use a suitable screwdriver (1) to unlock the battery fuse box hooks from the battery.
  13. Reposition the battery fuse box (2) along with the battery positive cables.

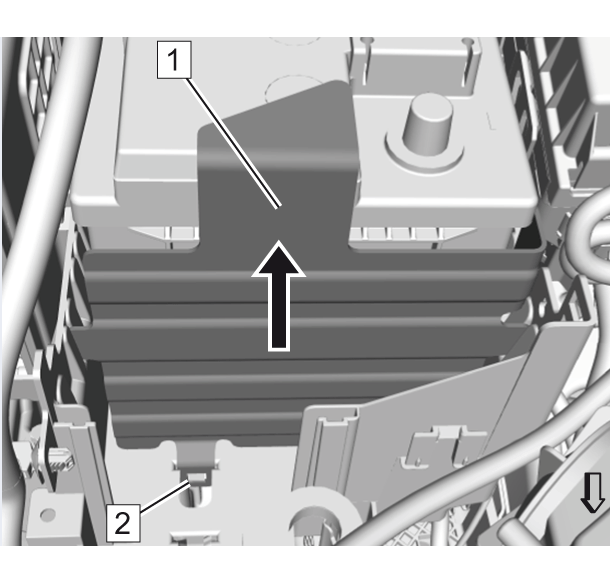

    14. Fig 5: Battery Tray Protector Retainer
    GM4422287Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Only necessary if vehicle is equipped with a short battery.

  14. Unclip the battery tray protector retainer (2) from battery tray.
  15. Remove the battery tray protector (1) by moving rearward, in the direction of the arrow.

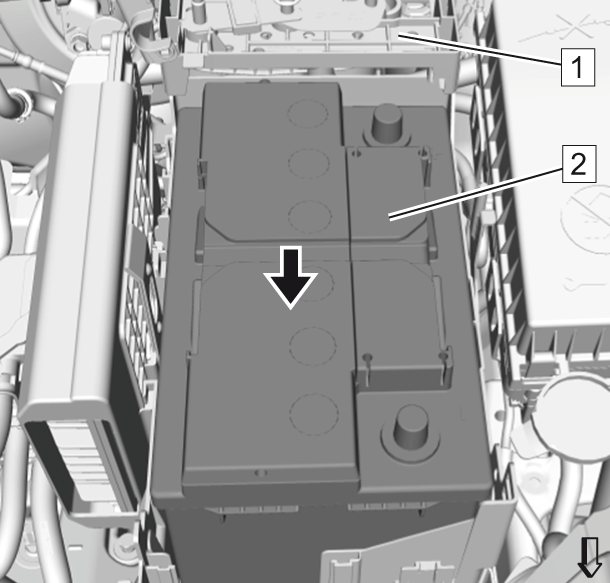

    16. Fig 6: Battery And Back Fuse Box
    GM4422288Courtesy of GENERAL MOTORS COMPANY
  16. Move the battery (2) forward, in the direction of the arrow and lift it to remove, while holding back the fuse box (1).
