Rear Side Door Lock Replacement

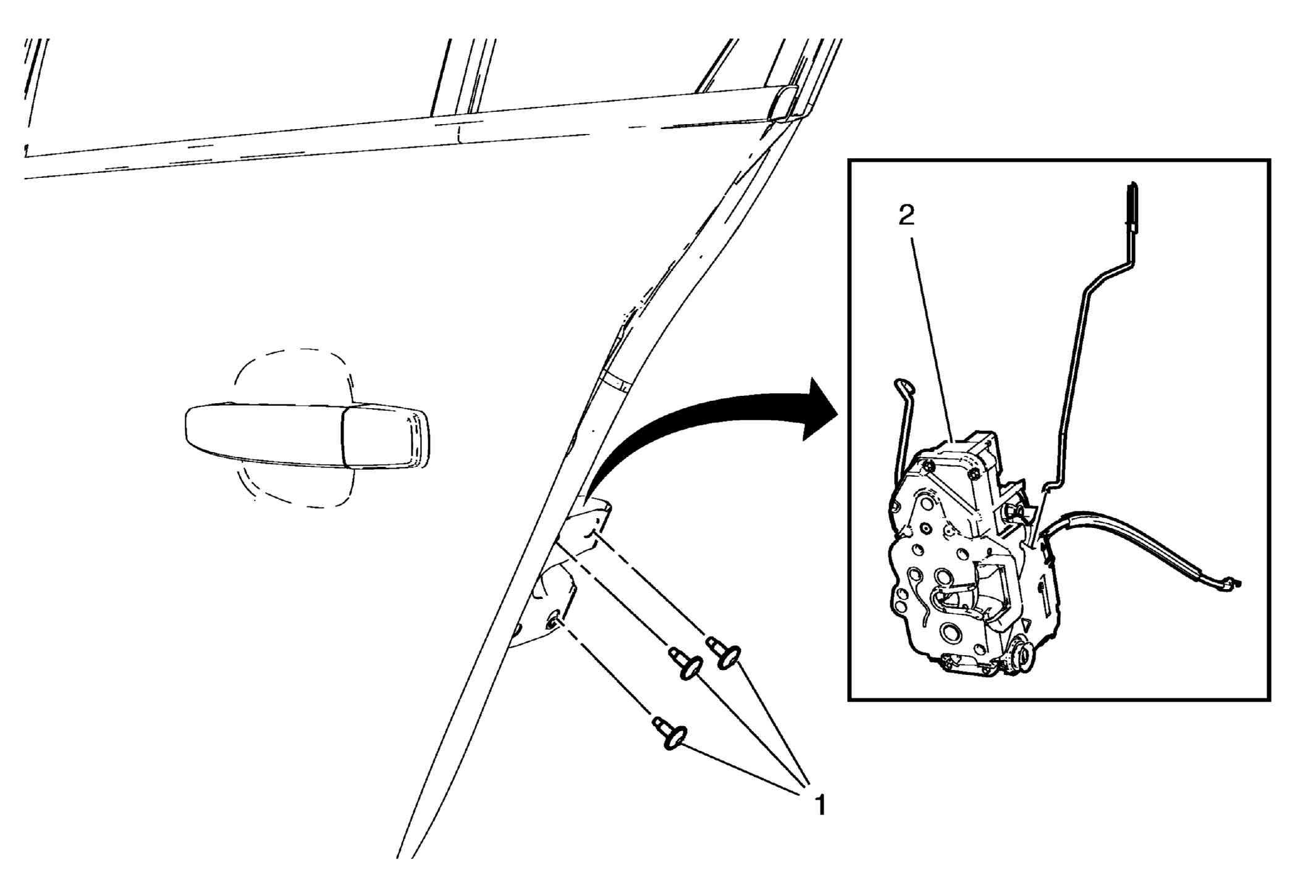

Fig 1: Rear Side Door Latch And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement . Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement . Remove the rear side door outside handle bracket. Refer to Rear Side Door Outside Handle Bracket Replacement .
1	Rear Side Door Lock Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove and DISCARD the screw. Cut the thread. NOTE: Service may offer bolts that are not microencapsulated. If this is the case apply thread lock agent to the bolt. Tighten 9 N.m (80 lb in)
2	Rear Side Door Lock Procedure Release the inside handle cable retainers before removing the door latch. Disconnect the door lock electrical connector. Remove the door lock with the handle bracket. Transfer the handle and lock rods to the new door lock. Inspect the lock, lock cylinder and handle adjustments. Refer to Rear Side Door Outside Handle Rod Adjustment .

Callout

Component Name

Preliminary Procedures

Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement .
Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .
Remove the rear side door outside handle bracket. Refer to Rear Side Door Outside Handle Bracket Replacement .

Rear Side Door Lock Bolt (Qty: 3)

CAUTION:

Procedure

NOTE:

Service may offer bolts that are not microencapsulated. If this is the case apply thread lock agent to the bolt.

Tighten
9 N.m (80 lb in)

Rear Side Door Lock

Procedure

Release the inside handle cable retainers before removing the door latch.
Disconnect the door lock electrical connector.
Remove the door lock with the handle bracket.
Transfer the handle and lock rods to the new door lock.
Inspect the lock, lock cylinder and handle adjustments. Refer to Rear Side Door Outside Handle Rod Adjustment .
