Radio Front Speaker Bracket Replacement

WARNING: This page is about a different car, the 2015 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

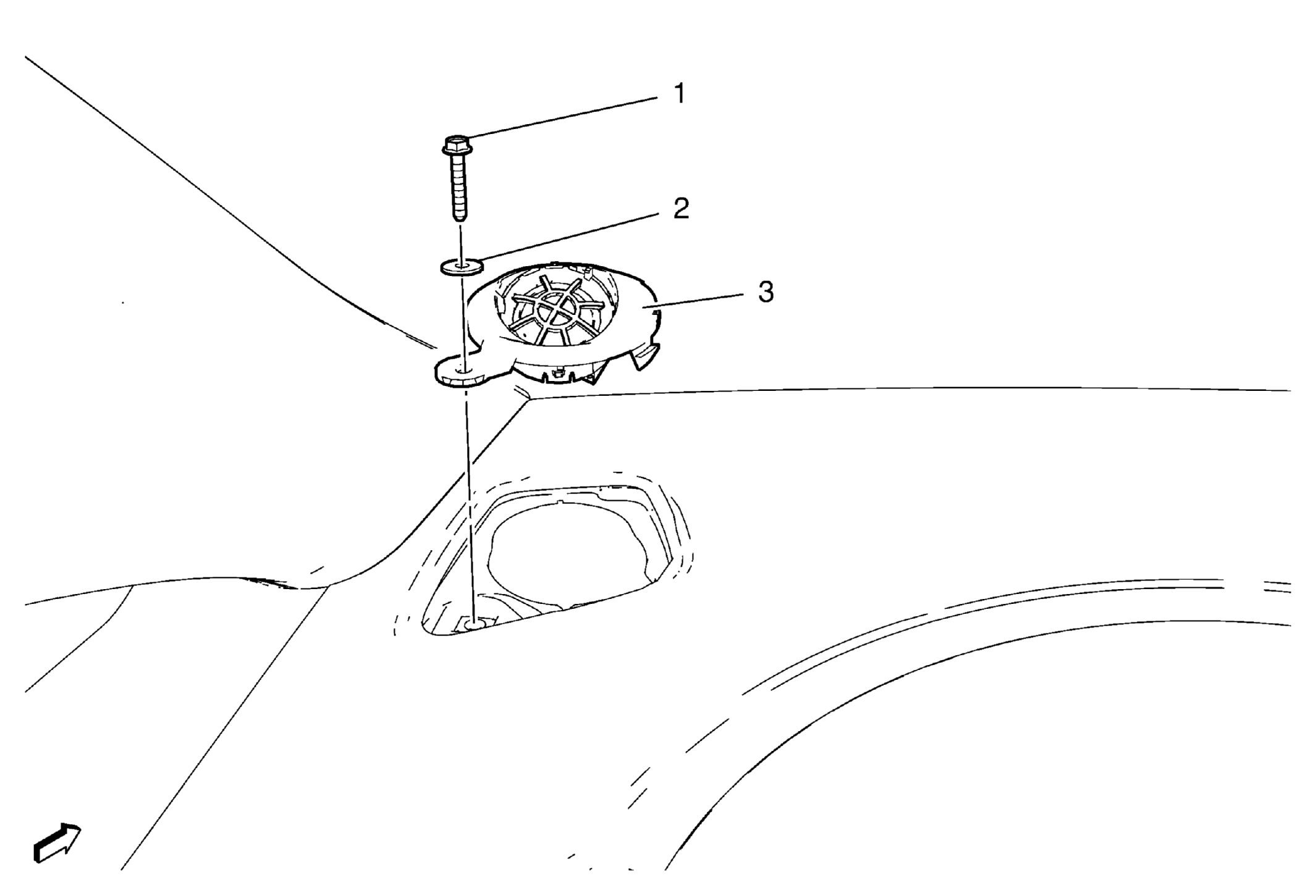

Fig 1: Radio Front Speaker Bracket
GM2189481Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Radio Front Speaker Grille Replacement .
1 Radio Front Speaker Bracket Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Radio Front Speaker Bracket Washer
3 Radio Front Speaker Bracket

Procedure

  1. Disconnect the electrical connector.
  2. Remove Radio Front Speaker. Radio Front Speaker Replacement .
