Steering Angle Sensor

WARNING: This page is about a different car, the 2016 Chevrolet Impala Limited. However, it is still accessible from the selected car via links, so may be relevant.

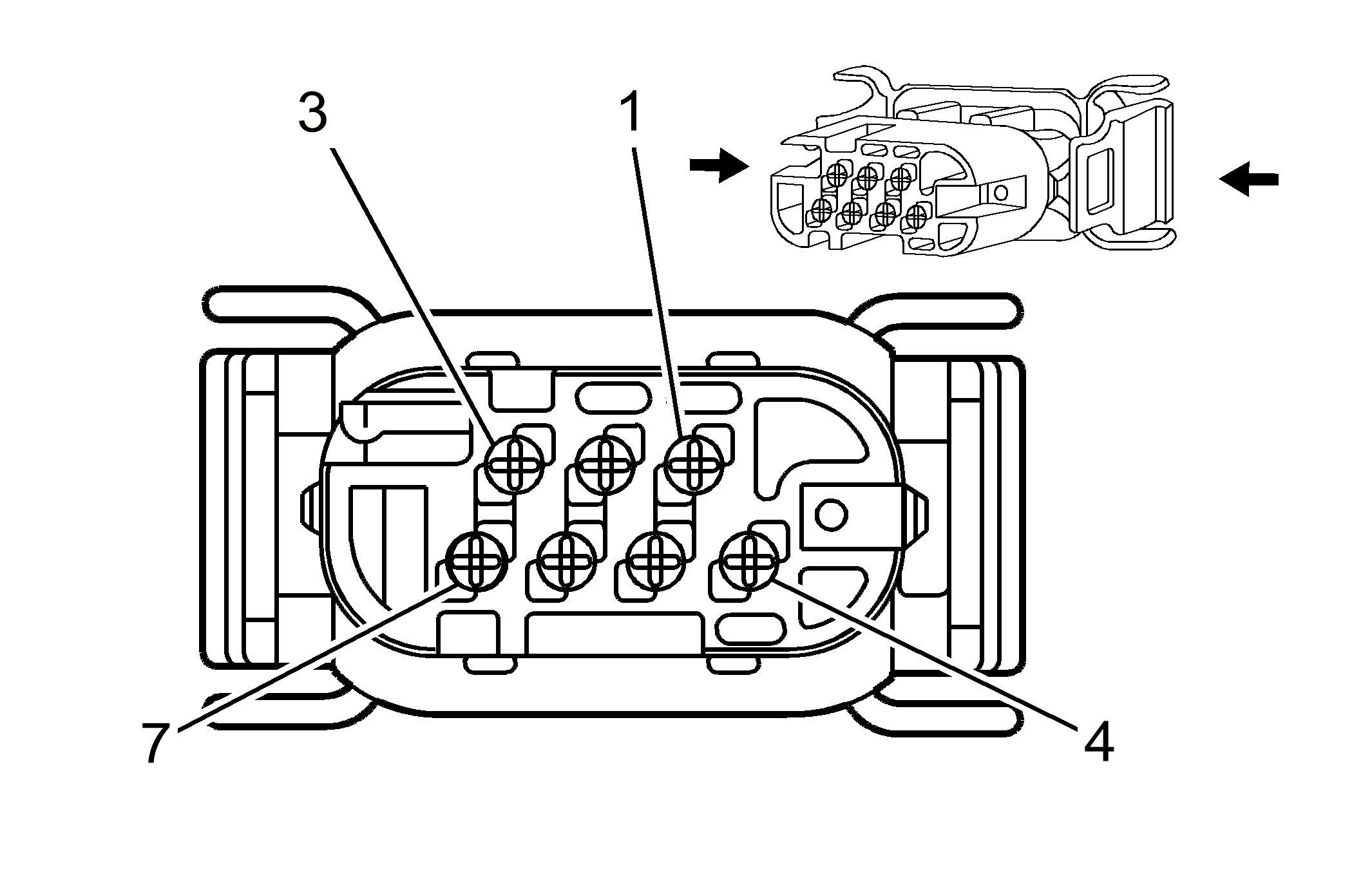

Fig 1: Steering Angle Sensor Connector End View

Courtesy of GENERAL MOTORS COMPANY

Pin	Wire	Circuit	Function
1	0.35 BK/WH	1551	Ground
2	0.35 WH	1056	Steering Wheel Position Sensor 12V Reference Voltage
3	0.35 TN	6433	CAN Bus High Serial Data
4	0.35 L-GN	6432	CAN Bus Low Serial Data
5-7	-	-	Not Used

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: 15324351
Service Connector: 88987967
Description: 7-Way F 0.6 Series (BK)

Terminal Part Information

Terminal/Tray: 1928498014/17
Core/Insulation Crimp: N/N
Release Tool/Test Probe: J-38125-560/J-35616-64B (L-BU)
