Secondary Air Injection (AIR) Pump Solenoid Bank 2 (NU5/NU6)

WARNING: This page is about a different car, the 2016 Chevrolet Impala Limited. However, it is still accessible from the selected car via links, so may be relevant.

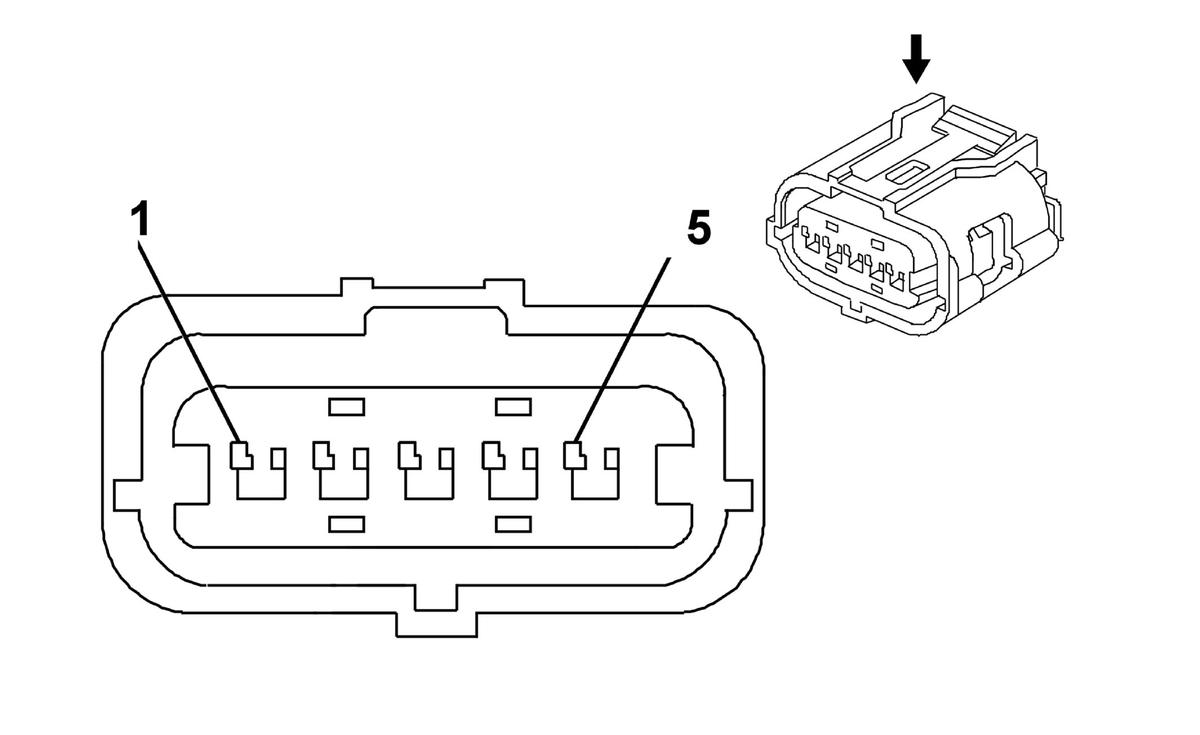

Fig 1: Secondary Air Injection (AIR) Pump Solenoid Bank 2 (NU5/NU6) Connector End View
GM1399241Courtesy of GENERAL MOTORS COMPANY
Secondary Air Injection (AIR) Pump Solenoid Bank 2 (NU5/NU6)

Pin Wire Circuit Function
1 0.5 L-BU 6456 Air Injection Reaction Pump Sensor #2 Supply Voltage
2 0.5 L-BU/BK 6455 Air Injection Reaction Pump Sensor #2 Signal
3 0.5 BN 6454 Air Injection Reaction Pump Sensor #2 Ground
4 0.5 BK/WH 451 Signal Ground
5 PK/BK 415 Air Injection Reaction Solenoid Supply Voltage
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 15443141
  • Service Connector: 19151506
  • Description: 5-Way F TS Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: Not Available
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray : Not Available
  • Core/Insulation Crimp: Not Available
