Radio Antenna Module

WARNING: This page is about a different car, the 2016 Chevrolet Impala Limited. However, it is still accessible from the selected car via links, so may be relevant.

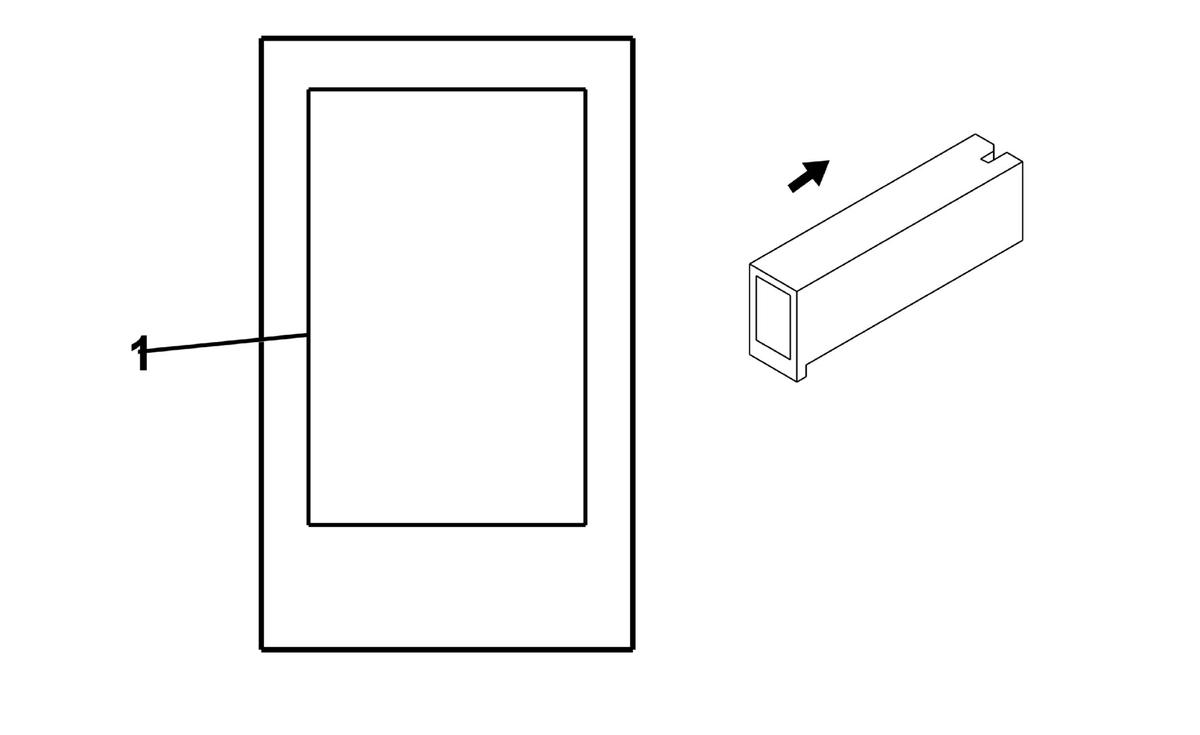

Fig 1: Radio Antenna Module Connector End View
GM1548336Courtesy of GENERAL MOTORS COMPANY
Radio Antenna Module

Pin Wire Circuit Function
1 0.5 PK 5165 Antenna 14V Switched Supply Voltage
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 15368970
  • Service Connector: 89046641
  • Description: 1-Way F Positive Lock 187 Series (BK)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 89046641
  • Release Tool: J-38125-218
  • Diagnostic Test Probe: J-35616-40 (BU)
  • Terminal/Tray: 170325-1/24
  • Core/Insulation Crimp: E/A
