Inflatable Restraint Roof Rail Module - Right

WARNING: This page is about a different car, the 2016 Chevrolet Impala Limited. However, it is still accessible from the selected car via links, so may be relevant.

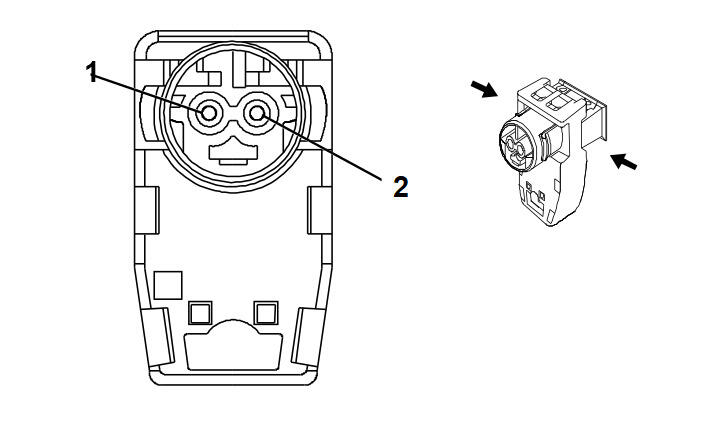

Fig 1: Inflatable Restraint Roof Rail Module - Right Connector End View
GM2368877Courtesy of GENERAL MOTORS COMPANY
Inflatable Restraint Roof Rail Module - Right

Pin Wire Circuit Function
1 0.5 YE/BK 5021 Right Front Head Curtain Module High Control
2 0.5 WH/BK 5022 Right Front Head Curtain Module Low Control
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13806185
  • Service Connector: 19118723
  • Description: 2-Way F 0.64 GET Series (BK w/ YE cover)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 19118723
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
