Inflatable Restraint I/P Module X1

WARNING: This page is about a different car, the 2016 Chevrolet Impala Limited. However, it is still accessible from the selected car via links, so may be relevant.

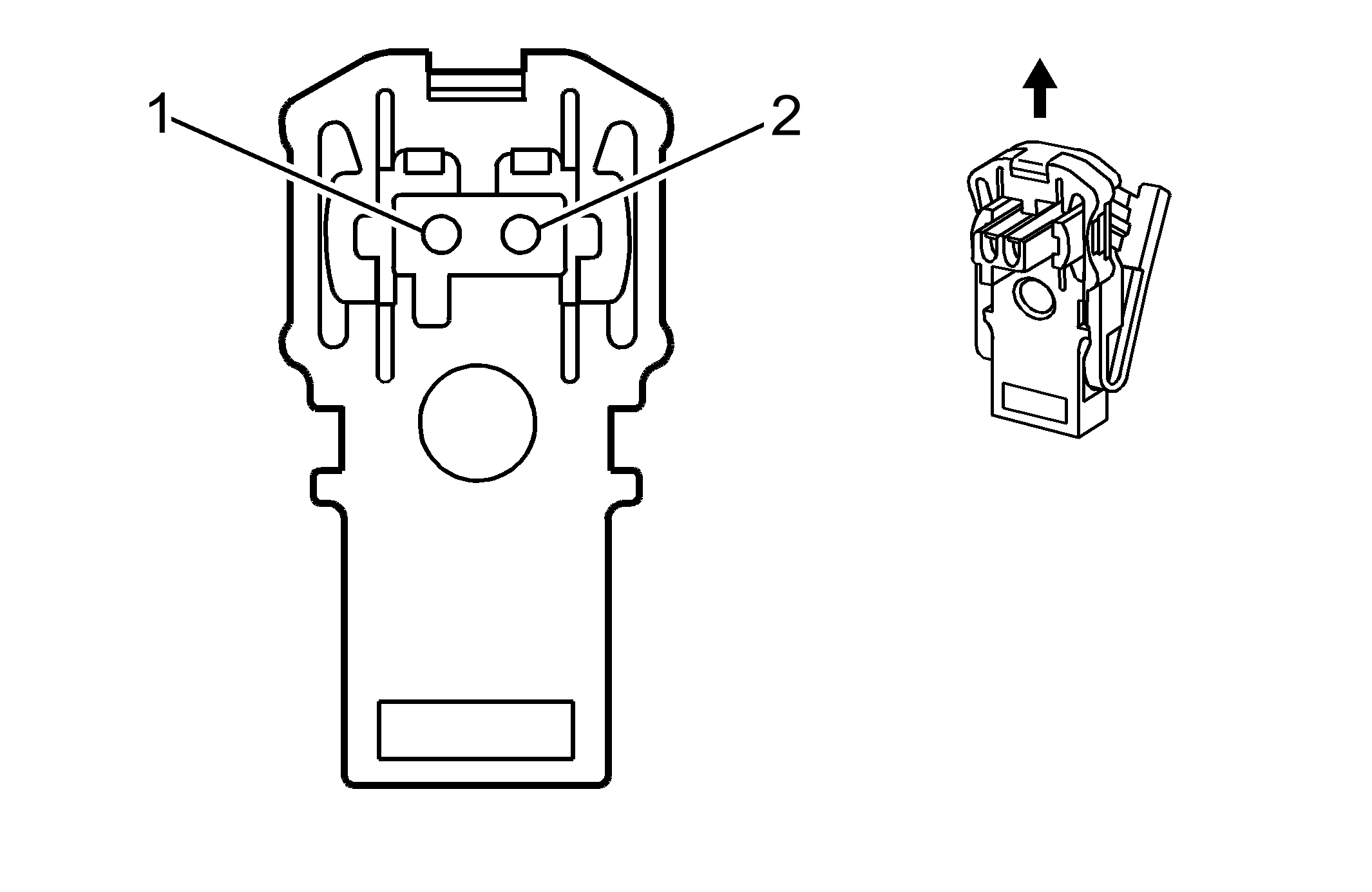

Fig 1: Inflatable Restraint I/P Module X1 Connector End Views
GM739643Courtesy of GENERAL MOTORS COMPANY
Inflatable Restraint I/P Module X1

Pin Wire Circuit Function
1 0.35 YE 3025 I/P Module - Stage 1 - High Control
2 0.35 OG 3024 I/P Module - Stage 1 - Low Control
Connector Part Information
  • Harness Type: Inflatable Restraint Jumper
  • OEM Connector: 54561236
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 2-Way F AMP (WH with YE Lock)
Terminal Part Information
  • Terminal/Tray: Service with Pigtail
  • Core/Insulation Crimp: Not Available
  • Release Tool/Test Probe: Not Available
