Rear Side Door Window Switch Replacement
Rear Side Door Window Switch Replacement

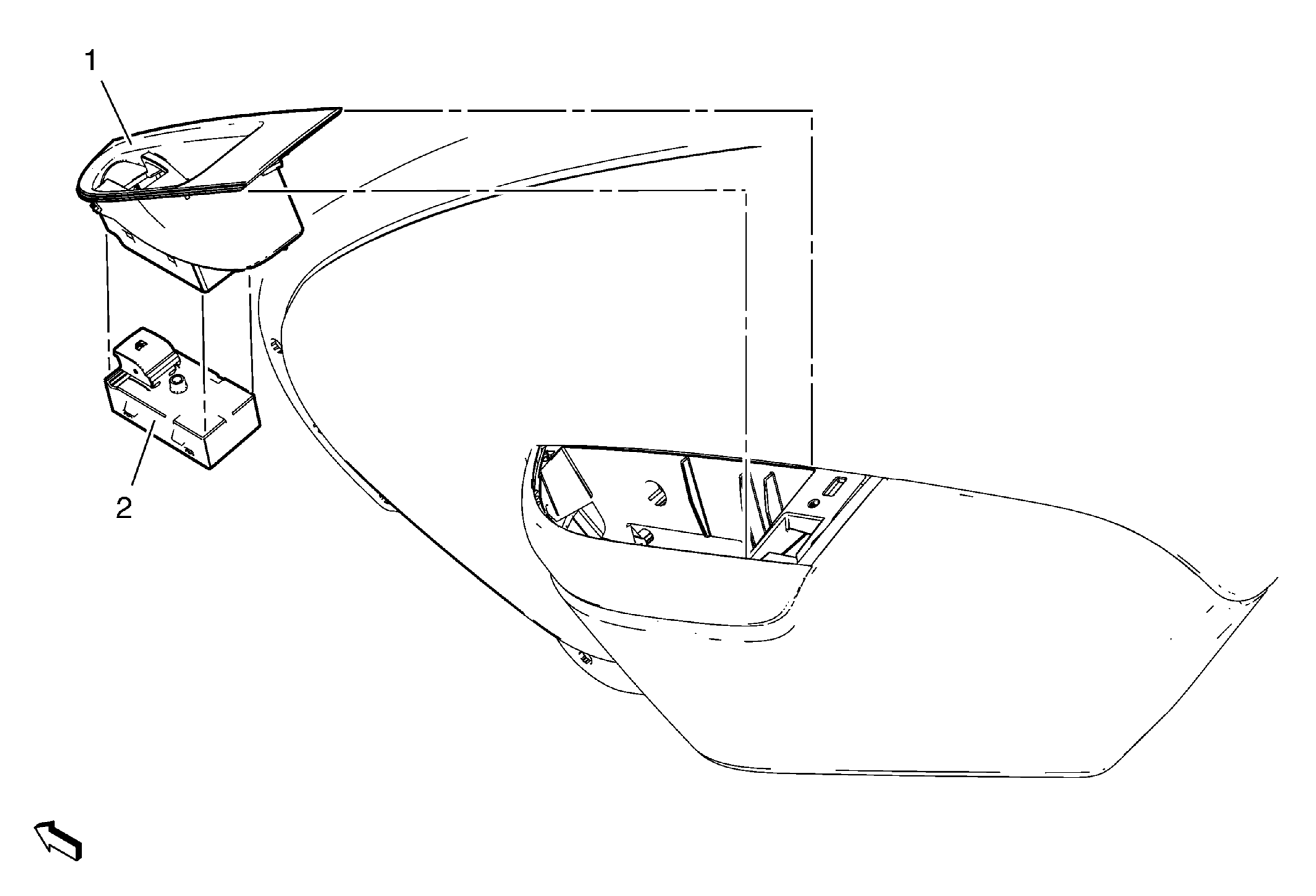

Fig 1: Rear Side Door Window Switch & Cover
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Rear Side Door Window Switch Opening Cover
Procedure
Unclip rear side door window switch opening cover (Qty: 4).
2
Rear Side Door Window Switch Assembly
Procedure
Unclip rear side door window switch (Qty: 4).
Disconnect electrical connector.
