Roof Console Replacement

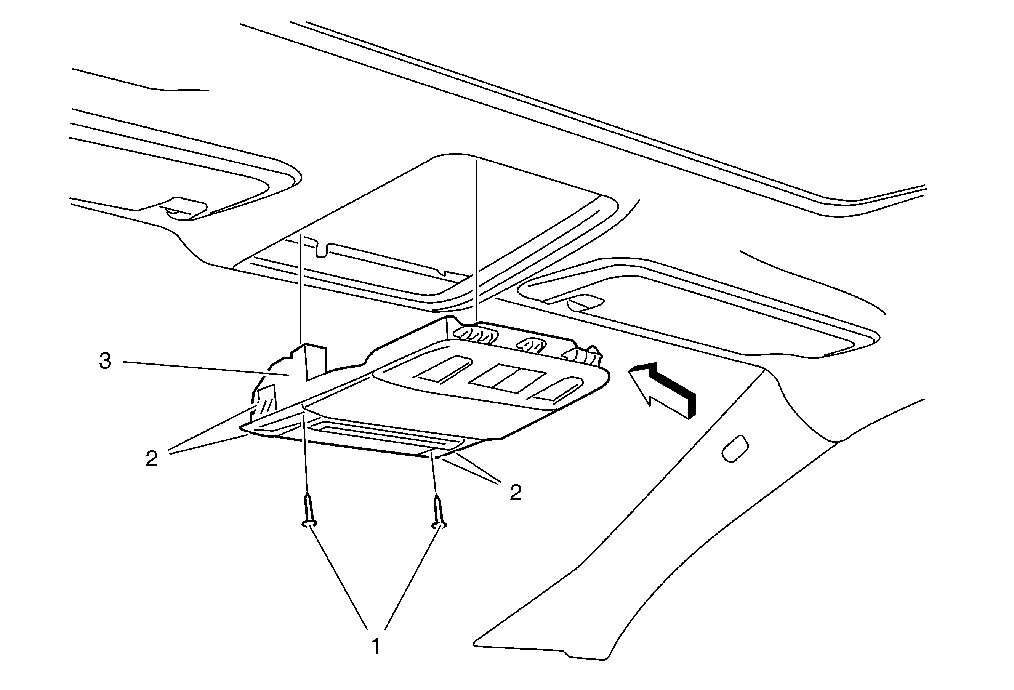

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the roof console reading lamp bezel. Refer to Roof Console Reading Lamp Bezel Replacement . |
|
| 1 | Roof Console Fastener (Qty: 2) |
| 2 | Roof Console Retainer (Qty: 4) TIP: Carefully use a flat-bladed tool to release the retainer from the roof console to the headliner. |
| 3 | Roof Console |
