Instrument Panel Lower Extension Compartment Panel Replacement

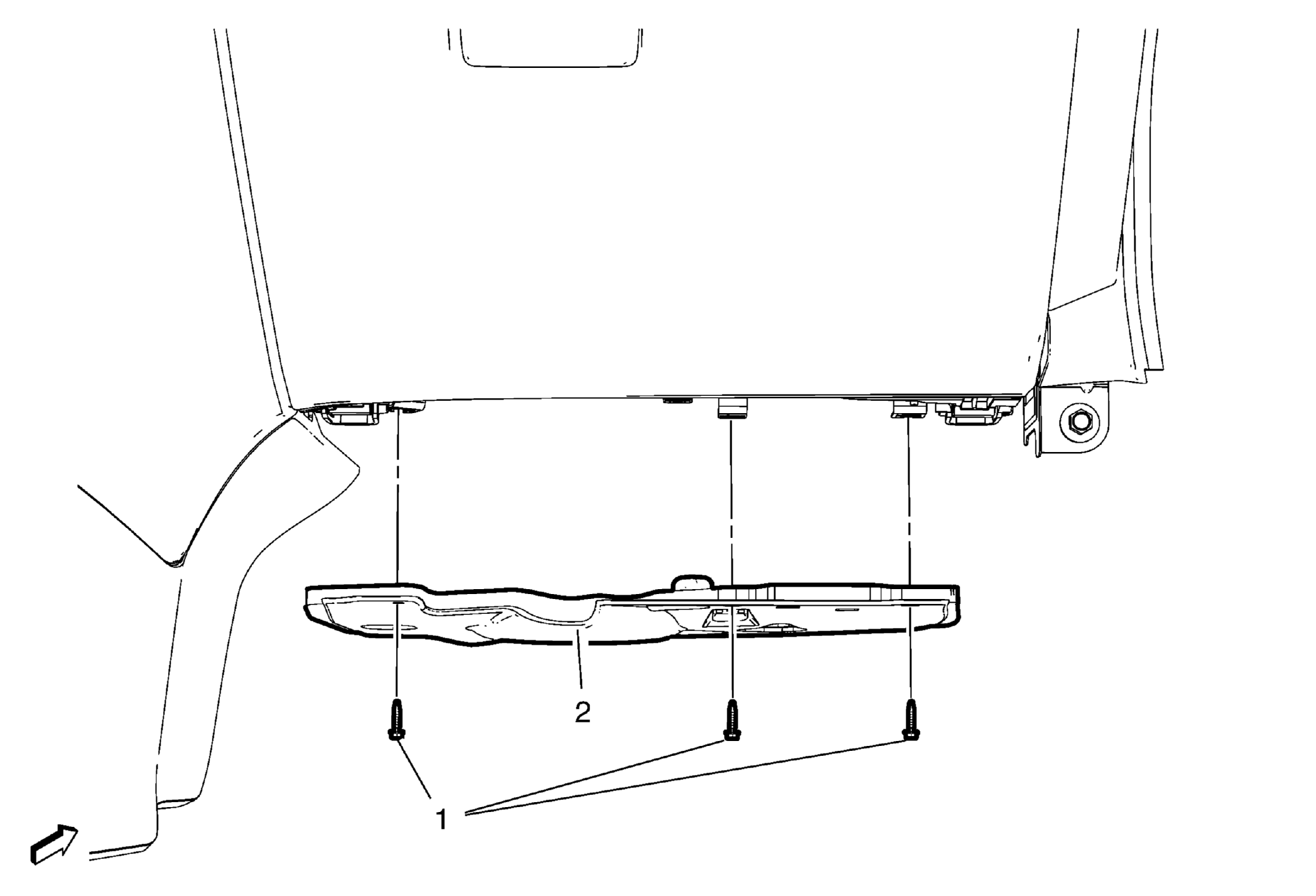

Fig 1: Instrument Panel Lower Extension Compartment Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Lower Extension Compartment Panel Fastener (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Lower Extension Compartment Panel Procedure  Disconnect the electrical connector, if equipped.
