Installation Procedure

    Fig 1: Instrument Panel Center Trim Panel Upper Clip Points
    GM2192605Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The clips will make an audible click when fully engaged.

  1. Clip in the upper two clips (arrows).

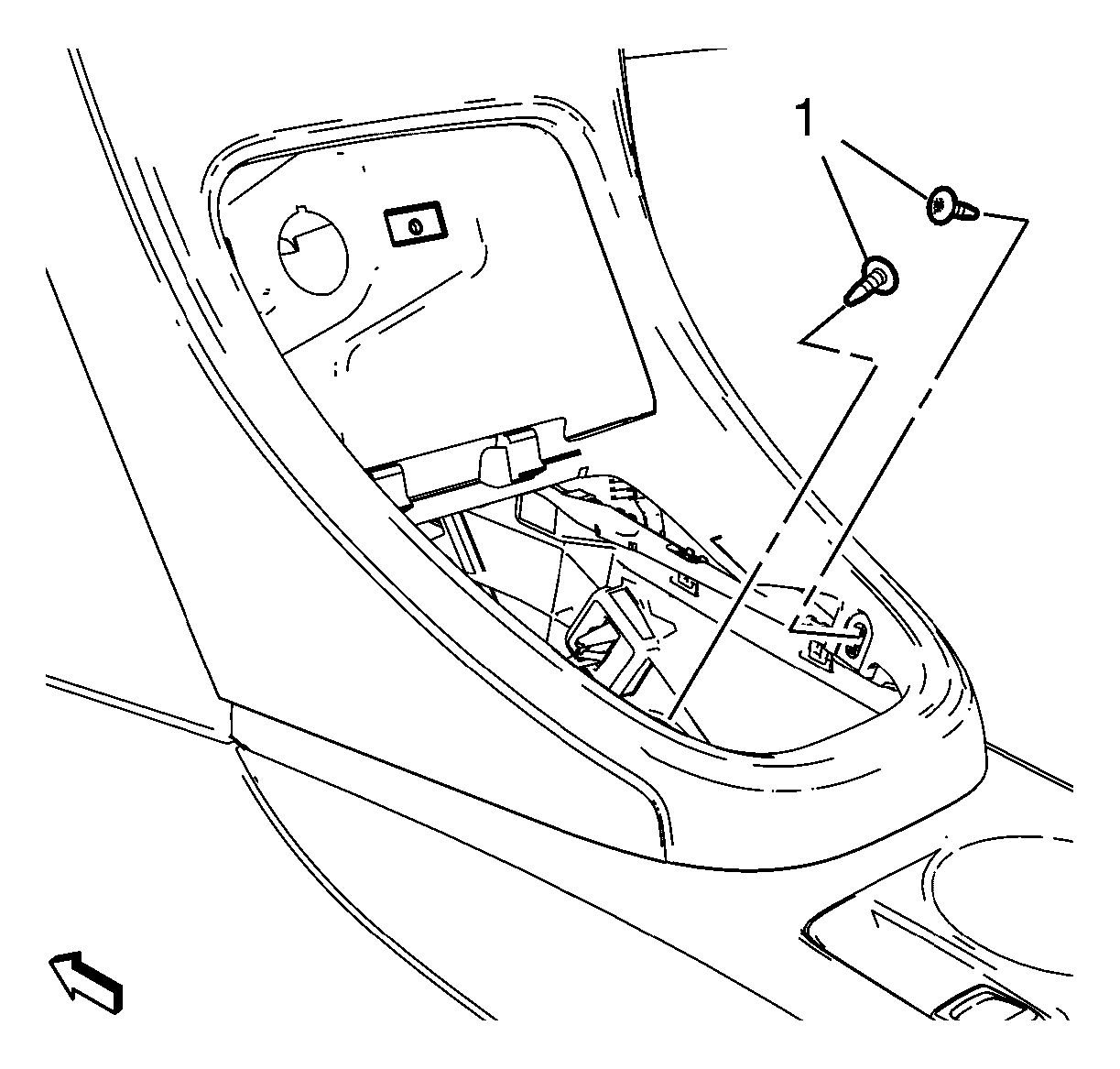

    2. Fig 2: Instrument Panel Center Trim Panel Screws
    GM2192601Courtesy of GENERAL MOTORS COMPANY
  2. Install the instrument panel center trim panel.
  3. Clip in the instrument panel center trim panel.
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the instrument panel center trim panel screws (1).
  5. Install the transmission control lever knob assembly. Refer to Transmission Control Lever Knob Replacement .
