Front Floor Console Armrest Replacement

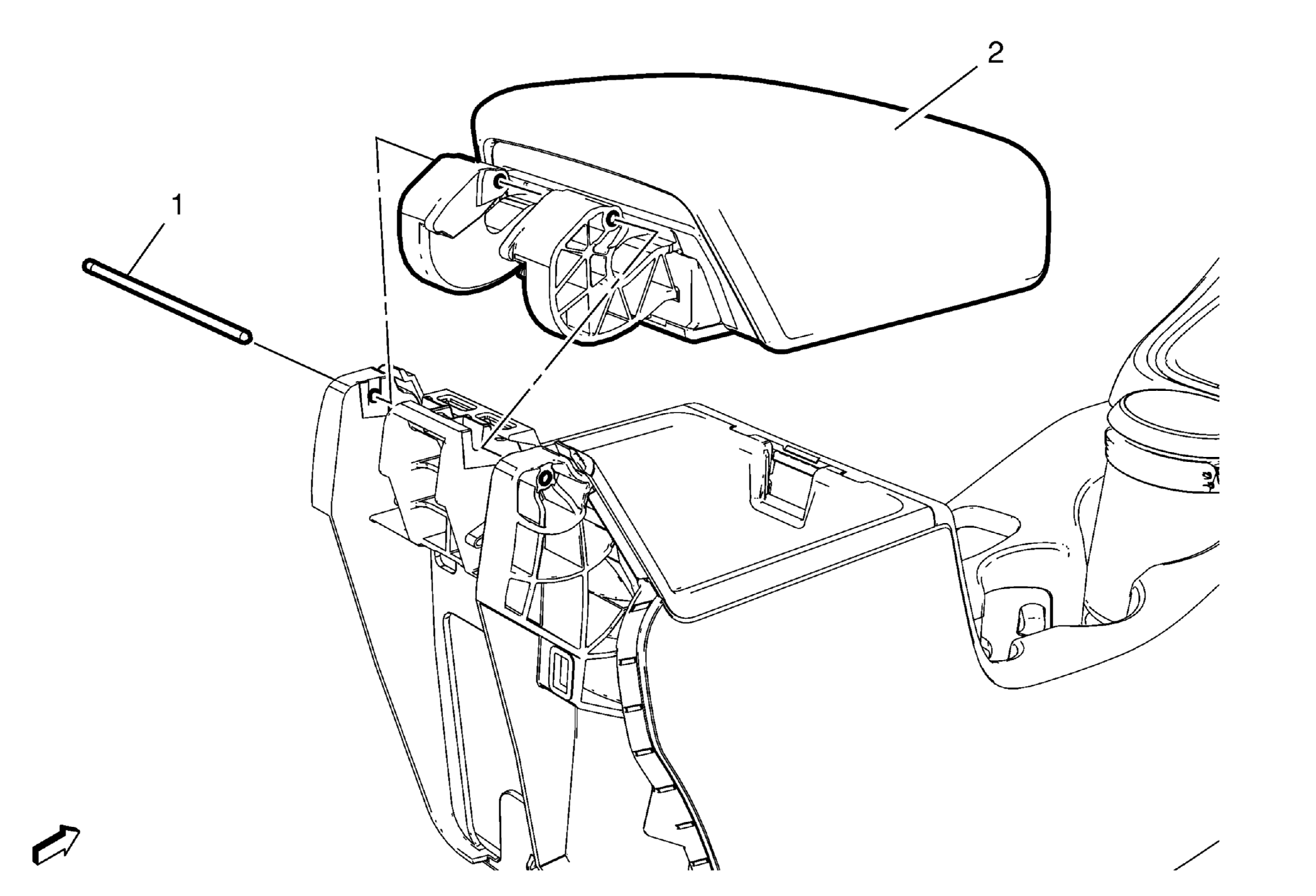

Fig 1: Front Floor Console Armrest

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement .
1	Front Floor Console Armrest Pin
2	Front Floor Console Armrest
