Forward Collision Alert (UEU), Lane Departure Warning (UFL)

WARNING: This page is about a different car, the 2015 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

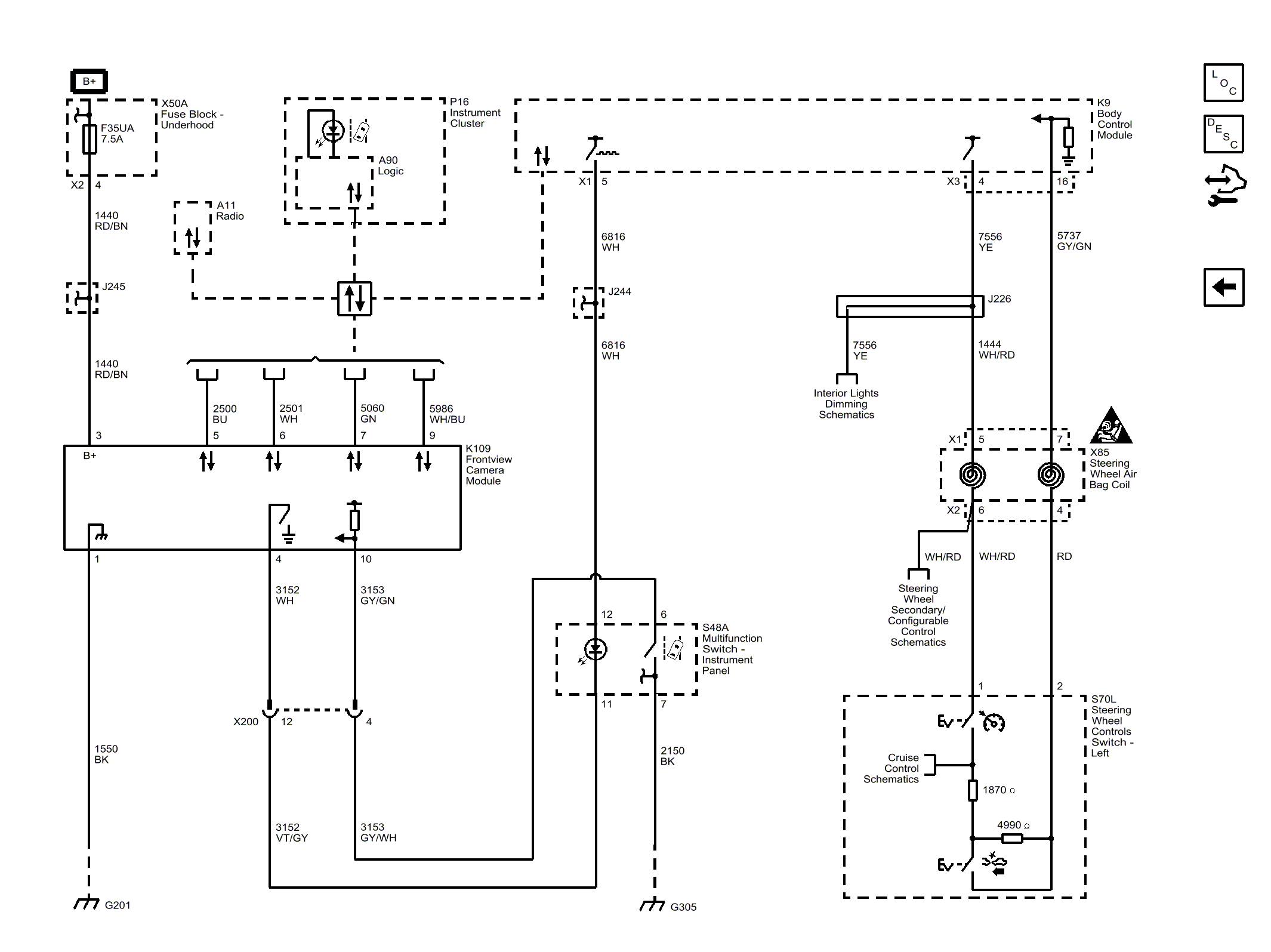

Fig 1: Forward Collision Alert (UEU), Lane Departure Warning (UFL)
GM3802180Courtesy of GENERAL MOTORS COMPANY
